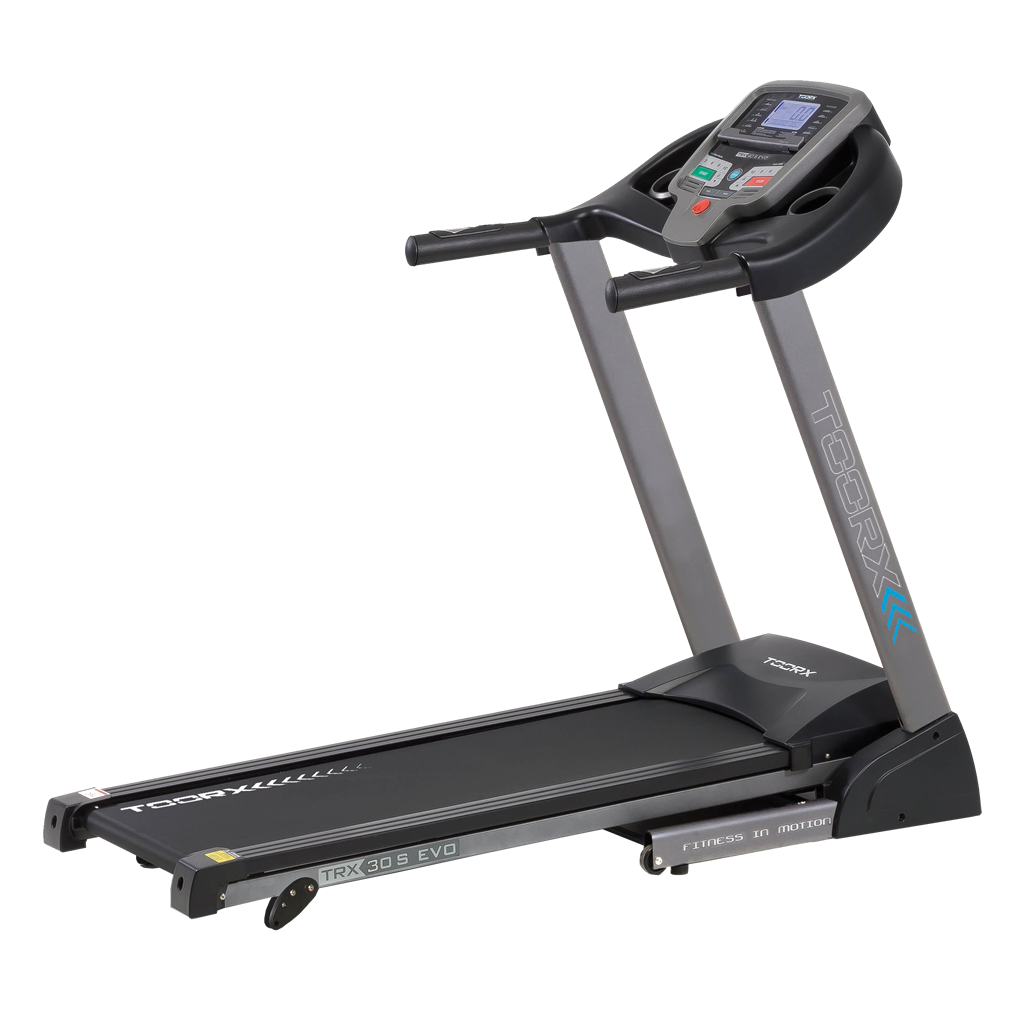

TRX-30 S EVO

90% pre-assembled, nr. 2 moving wheels.

Technical data

Motor1,75/2,75 (Peak) HP DC
Speed0,8 - 14,0 Km/h with 0,1 km/h increasing
Inclinemanual with 3-level adjuster
Running board420 x 1230 mm - belt thickness 1,6 mm
Programs1 manual, 12 pre-set, body fat tester target: time, distance, calories
Max user weight100 Kg
Shock absorption systemrunning board with 8 cushions
Rollers sizefront ø46 mm - rear ø42 mm
Weight46 Kg
Set up size1590 x 700 x 1360 mm
Folded size850 x 700 x 1420 mm
Frame90% pre-assembled, nr. 2 moving wheels
Gross weight53 Kg
Packing size1670 x 765 x 290 mm
CompliancesCE-ROHS-EN957

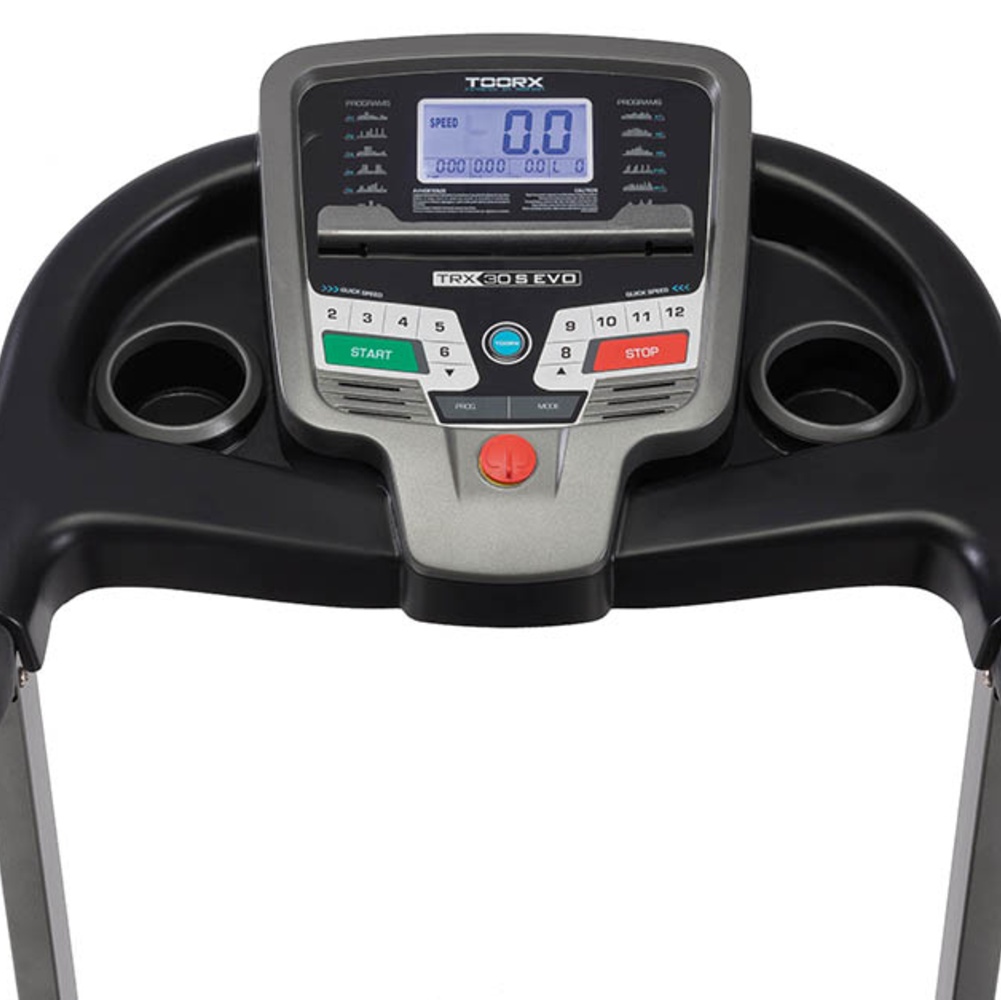

Console

Description
  • LCD display 113x63mm blue backlight
  • hand pulse sensors integrated into hand grips
  • handlebar speed and start/stop control
  • quick touch speed: 2-4-5-6-8-9-10-11-12 km/h
  • smartphone/tablet holder included
Functions

speed - pulse - distance - time - calories - current working program

PDF Instruction Manual

Download the instruction manual in .PDF

Other languages:

PDF Technical Data Sheet

Download the technical data sheet in .PDF
