SRX-70 S
cod. SRX-70 S
- KEY POINTS

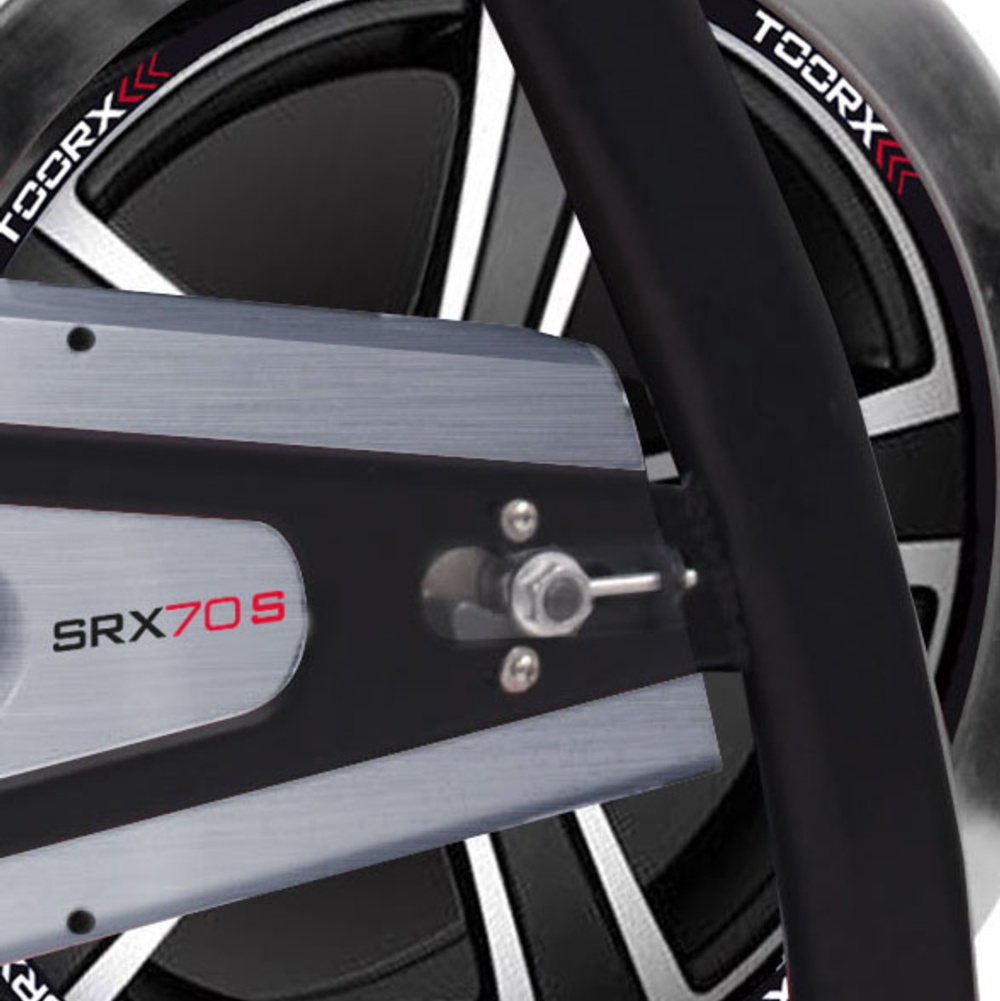

- Drive train belt - fixed gear
- Braking system long life felt pad.
- Brake button for emergency stop.

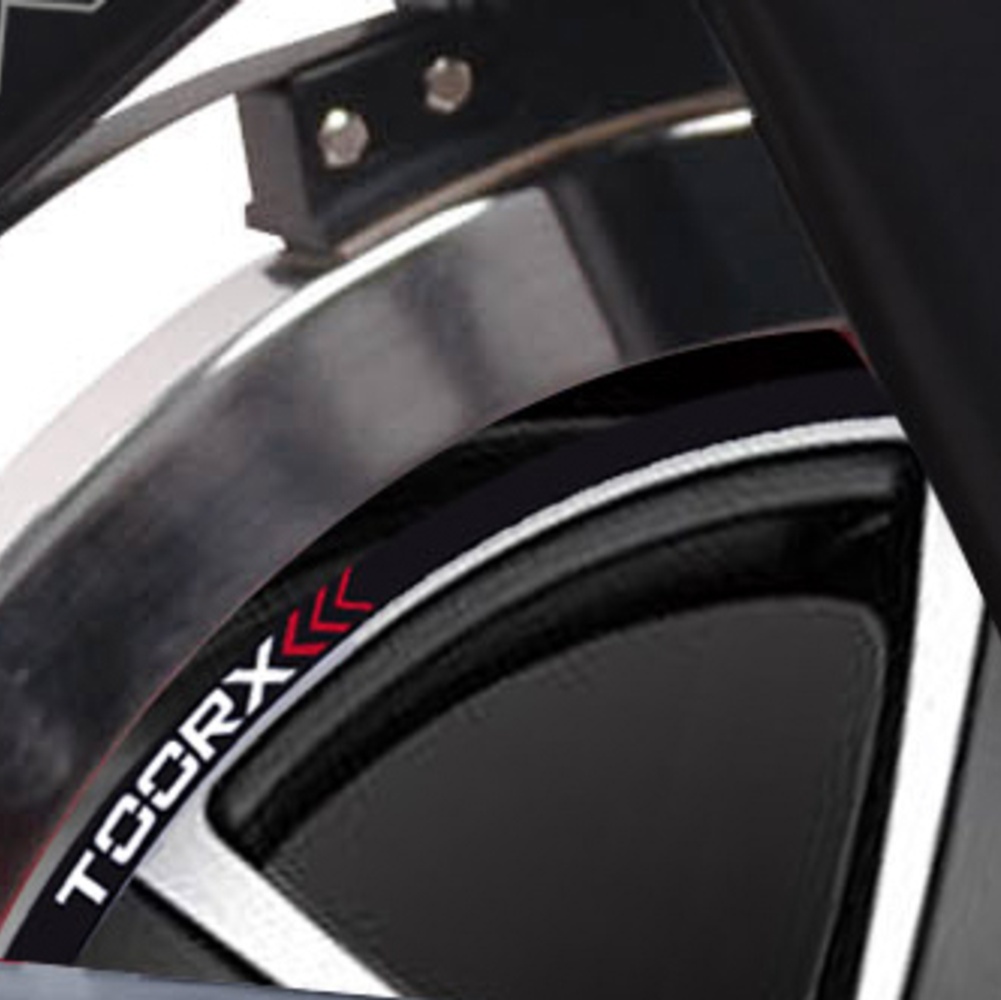

- 22 Kg flywheel system (balanced)
- Built-in wireless pulse receiver - hand pulse.
Technical data
| Drive train | belt - fixed gear |
| Braking system | long life felt pad. Brake button for emergency stop |
| Flywheel system | 22 kg (balanced) |
| Max user weight | 125 Kg |

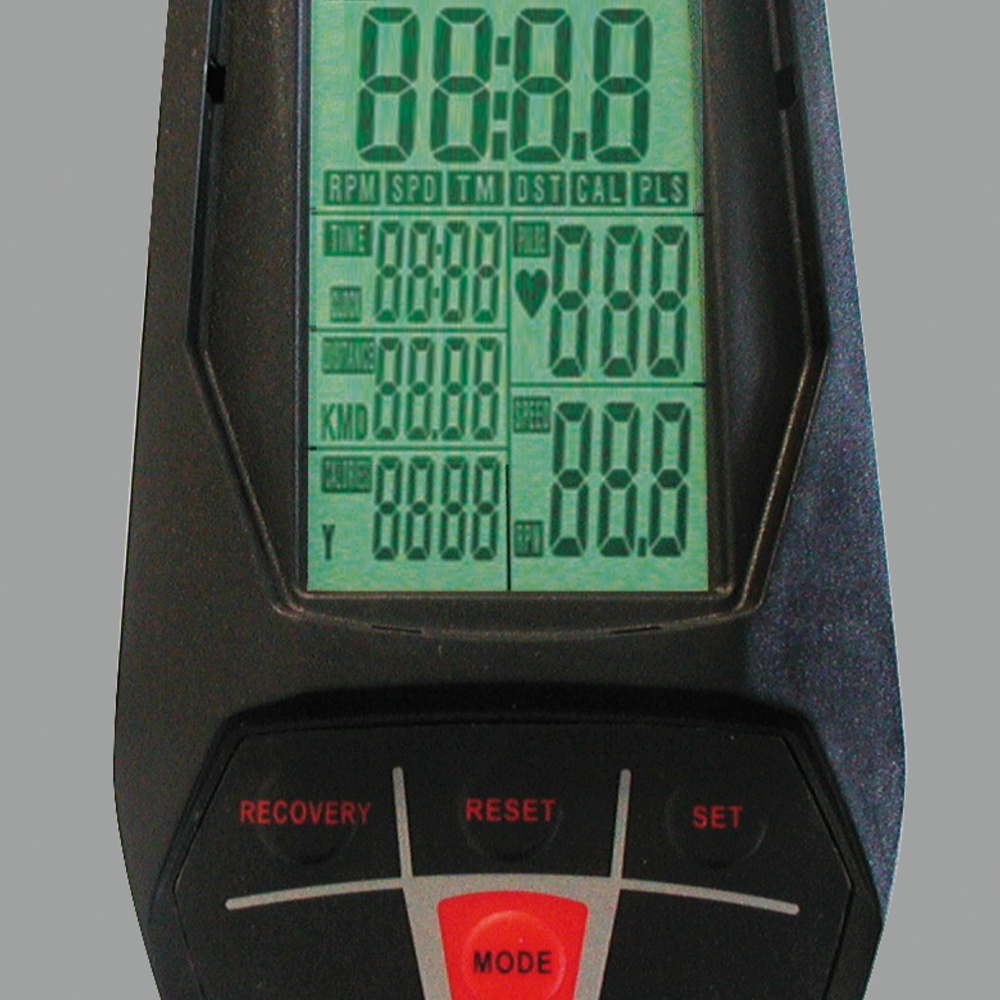

| Console with LCD | distance, time, calories, pulse, speed, odometer, RPM |

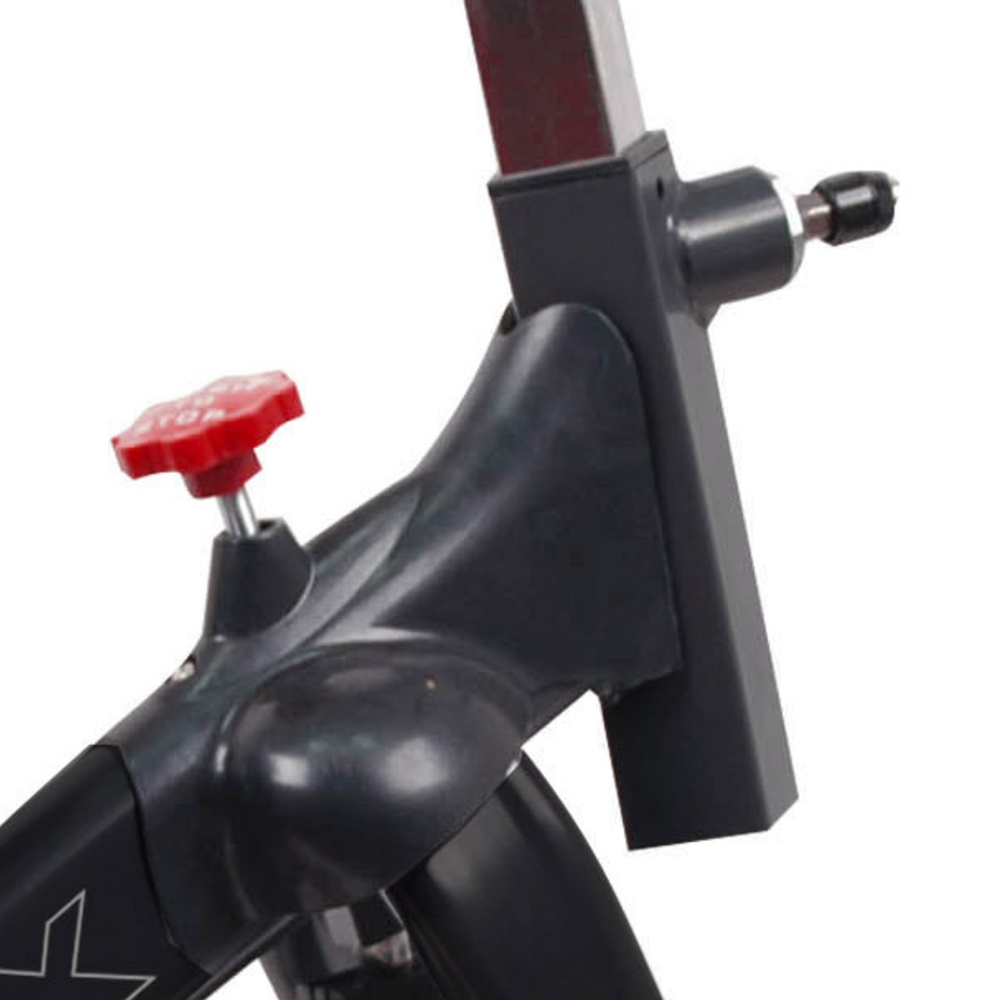

| Seat position | bicolour saddle with vertical and horizontal adjustment |
| Handlebar | vertical and horizontal adjustment - micrometric |
| Handlebar height * | min 88.5 cm, max 104 cm |
| Sddle height * | min 70 cm, max 89 cm |
| Handlebar position slide * | +/- 10 cm |
| Fore & Aft Saddle position * | min 61 cm, max 70 cm |
| Q Factor | Total: 17,7 cm. - Left: 8,3 cm | Right: 9,4 cm |
| Resistance adjustment | manual - micrometric |
| Heart rate | hand pulse. Built-in wireless pulse receiver |
| Moving wheels | yes |
| Rubber adjustment feet | yes |
| Pedal crank | 3 pieces |
| Frame | high-density steel |
| Painting | heavy duty powder coating |
| Weight | 47 Kg |
| Set up size | 1210 x 540 x 1215 mm |
| Gross weight | 52 Kg |
| Packing size | 1100 x 250 x 850 mm |
| Compliances | CE-ROHS-EN957 |
* Measurements:
- Fore & Aft Saddle position > from the seat anchor point to the minimum handlebar position
- Handlebar height > from upper edge handlebar to bike support base (upper face)
- Saddle height > from saddle anchor point (slide) to bike support base (upper face)
- Handlebar position slide > Δ of the minimum and maximum position of the slide.
