SRX-90

Drive train belt - fixed gear. Braking system long life felt pad. Brake button for emergency stop. 24 Kg flywheel system (CNC-balanced). Built-in wireless pulse receiver - chest belt included.

Technical data

Drive trainbelt - fixed gear

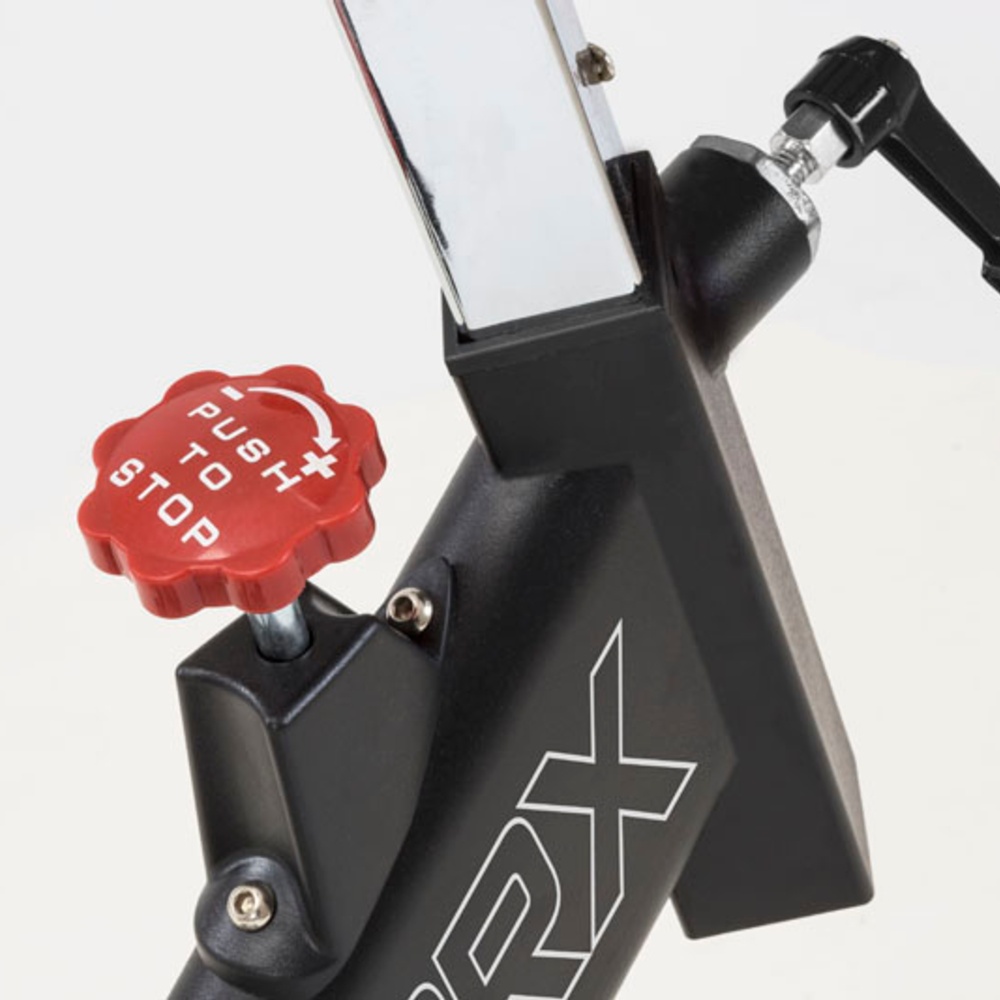

Braking systemlong life felt pad. Brake button for emergency stop

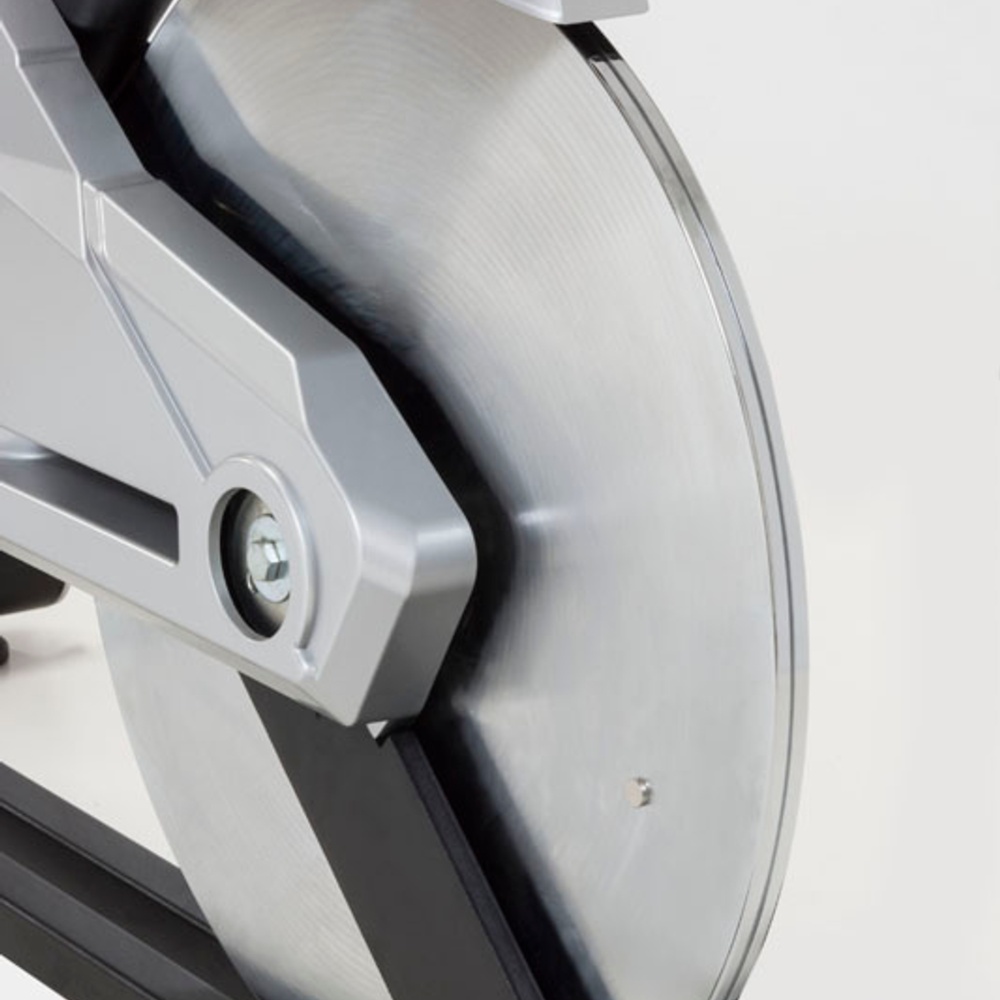

Flywheel system24 kg (CNC-balanced)
Max user weight140 Kg

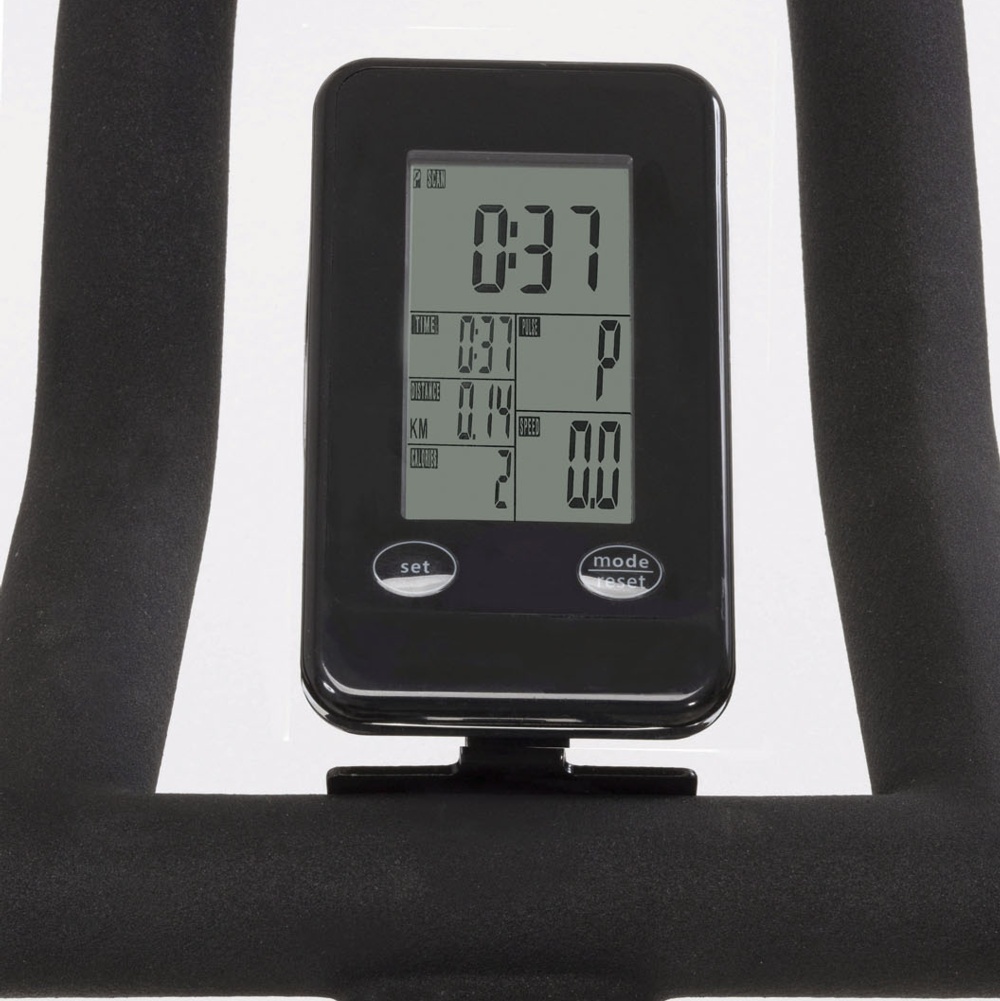

Console with LCDdistance, time, calories, pulse, speed, RPM

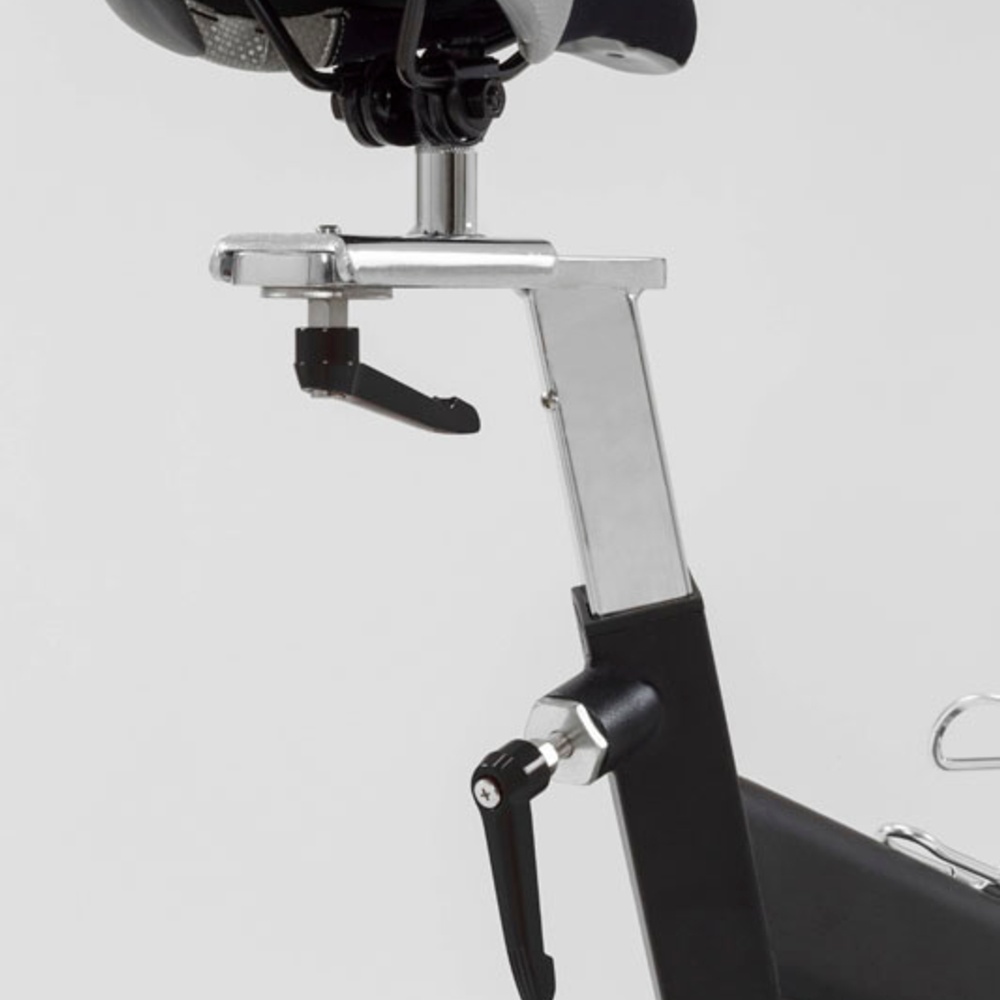

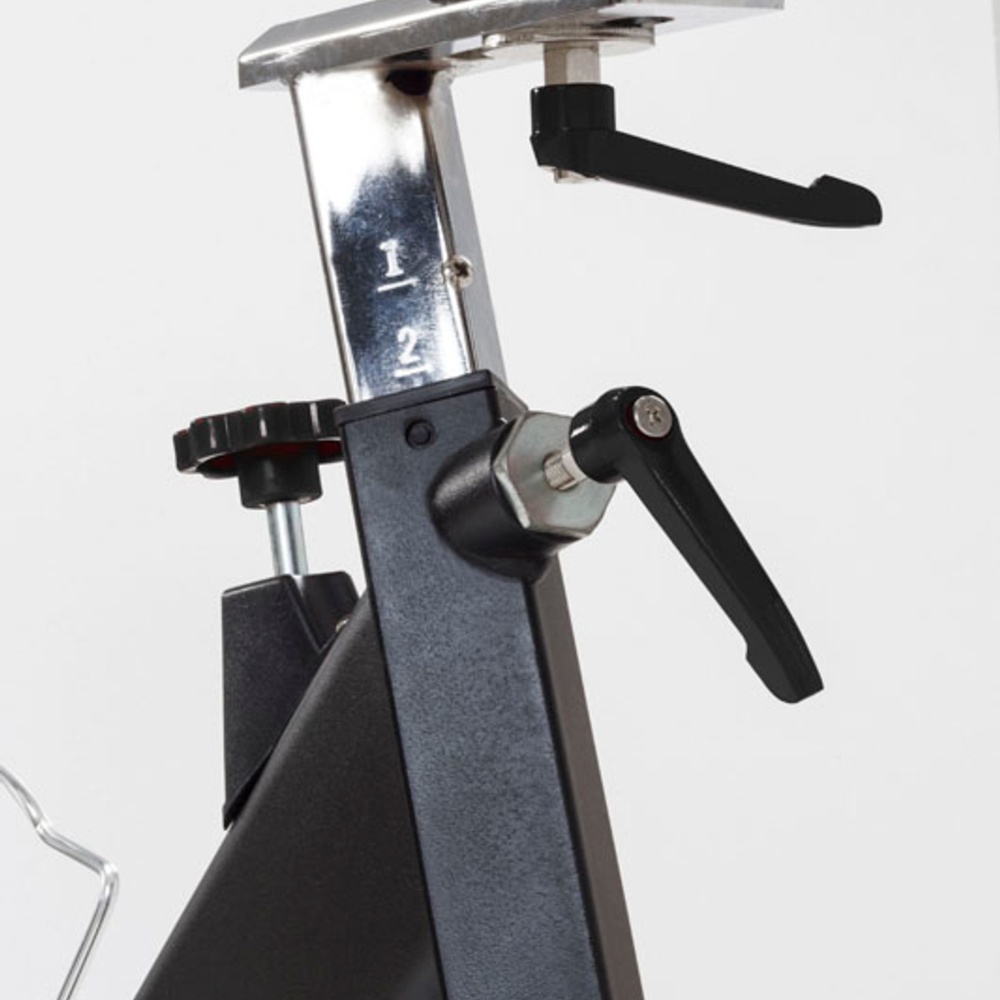

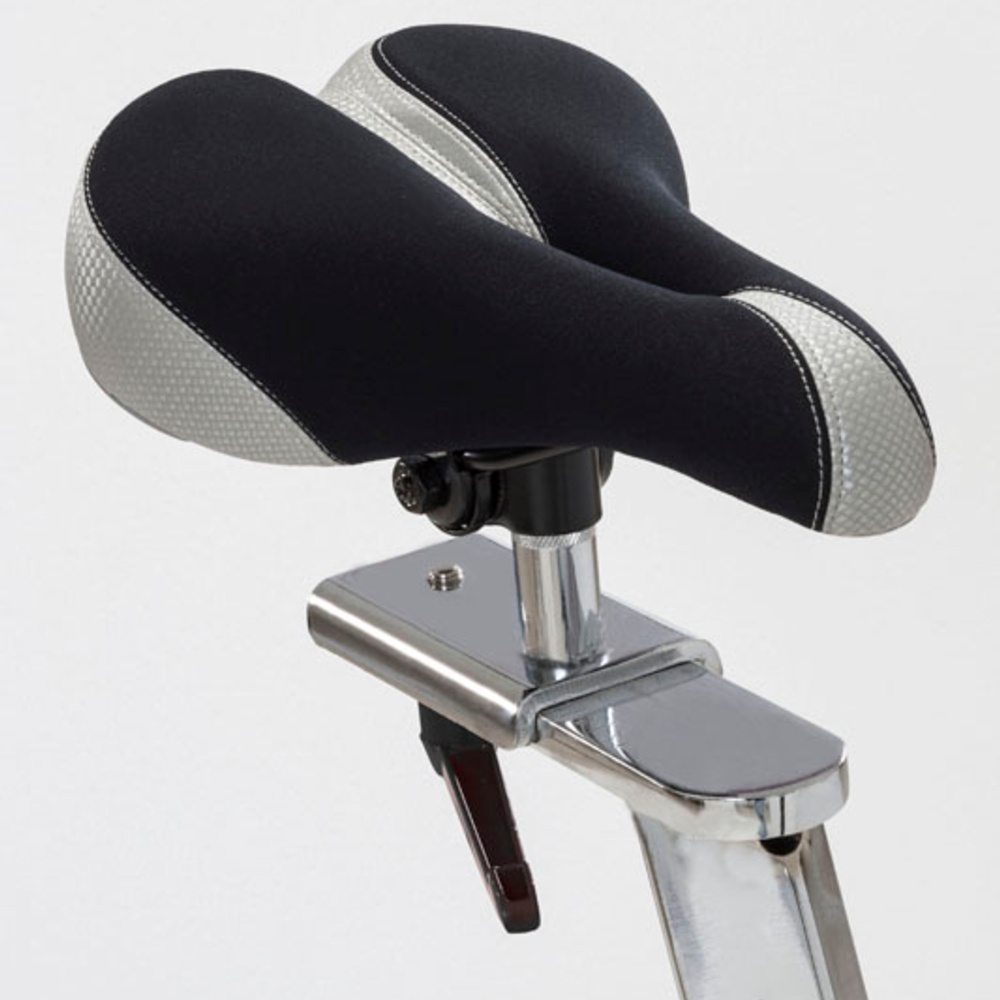

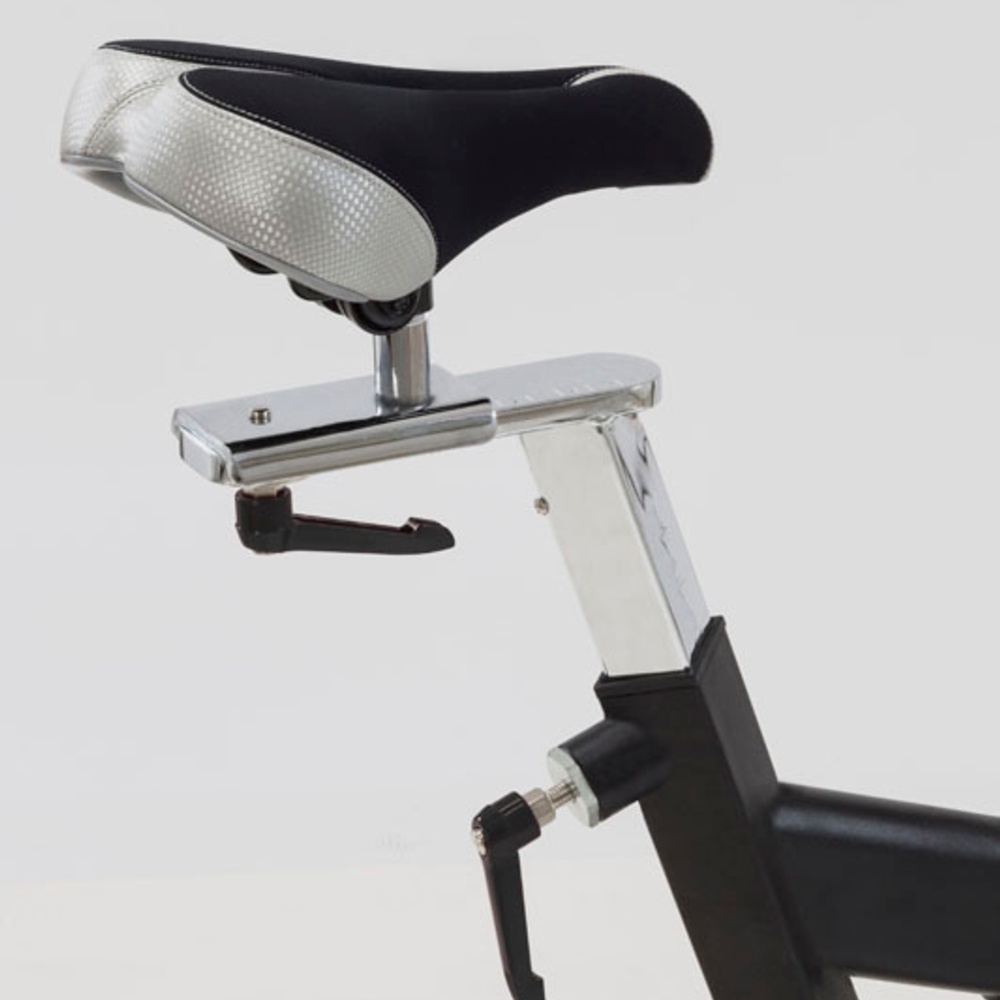

Seat positionbicolour saddle with vertical and horizontal adjustment - micrometric
Handlebarvertical and horizontal adjustment - micrometric
Handlebar height *min 90 cm, max 103.5 cm
Sddle height *min 76.5 cm, max 93.5 cm
Handlebar position slide * +/- 10 cm
Fore & Aft Saddle position *min 65 cm, max 74 cm
Resistance adjustmentmanual - micrometric
Heart ratebuilt-in wireless pulse receiver - chest belt included
Moving wheelsyes
Rubber adjustment feetyes

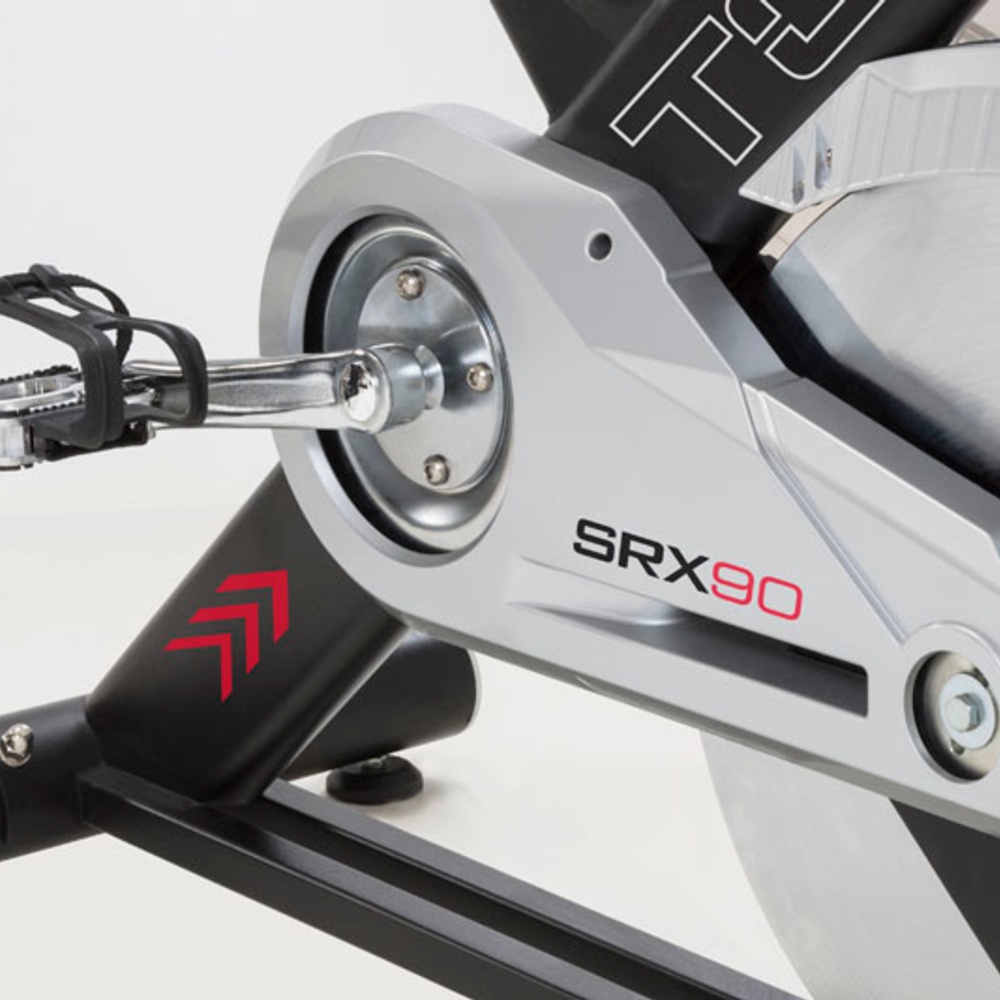

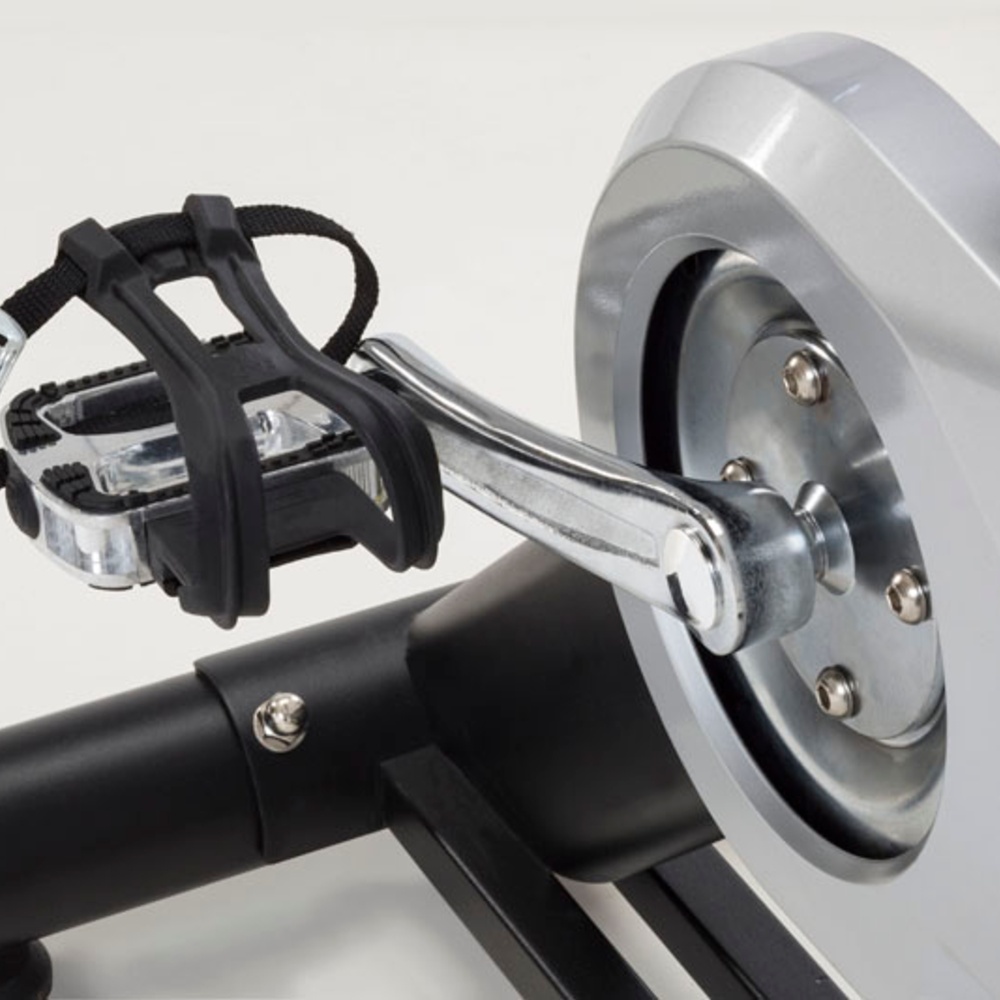

Pedal crank3 pieces

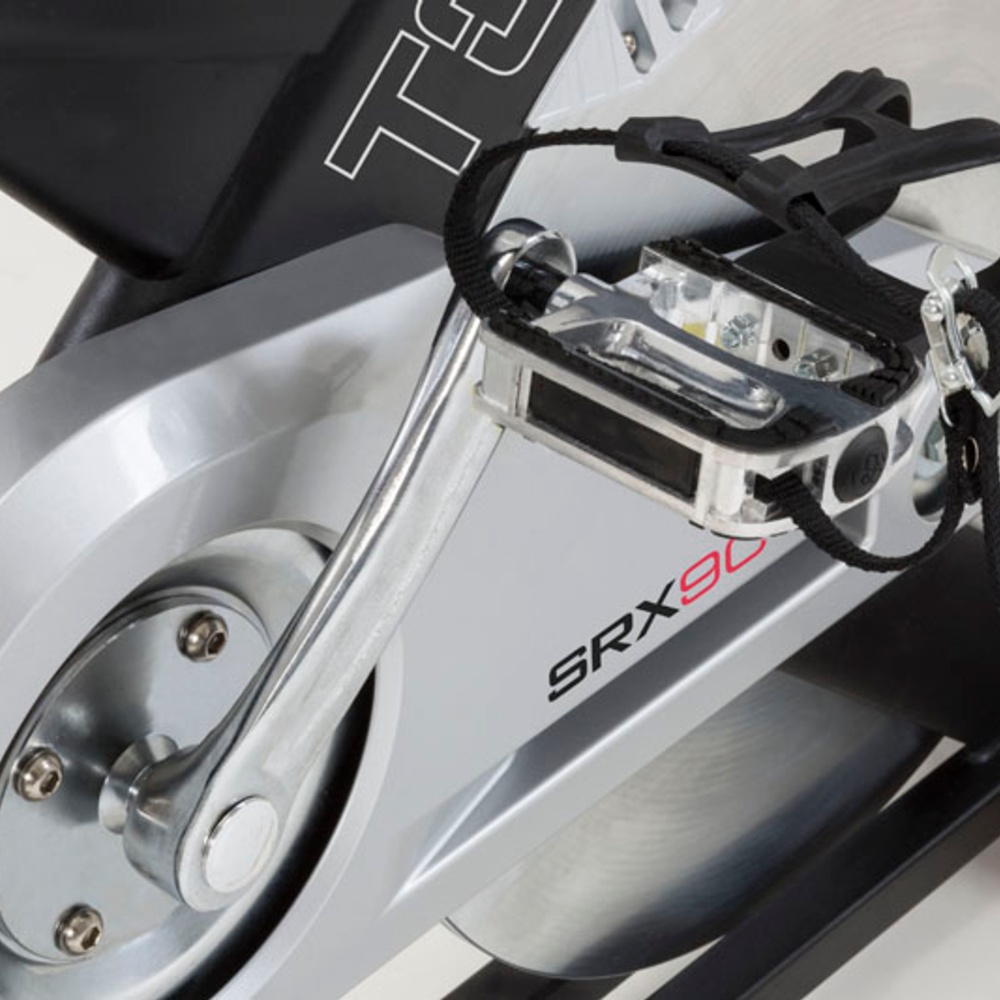

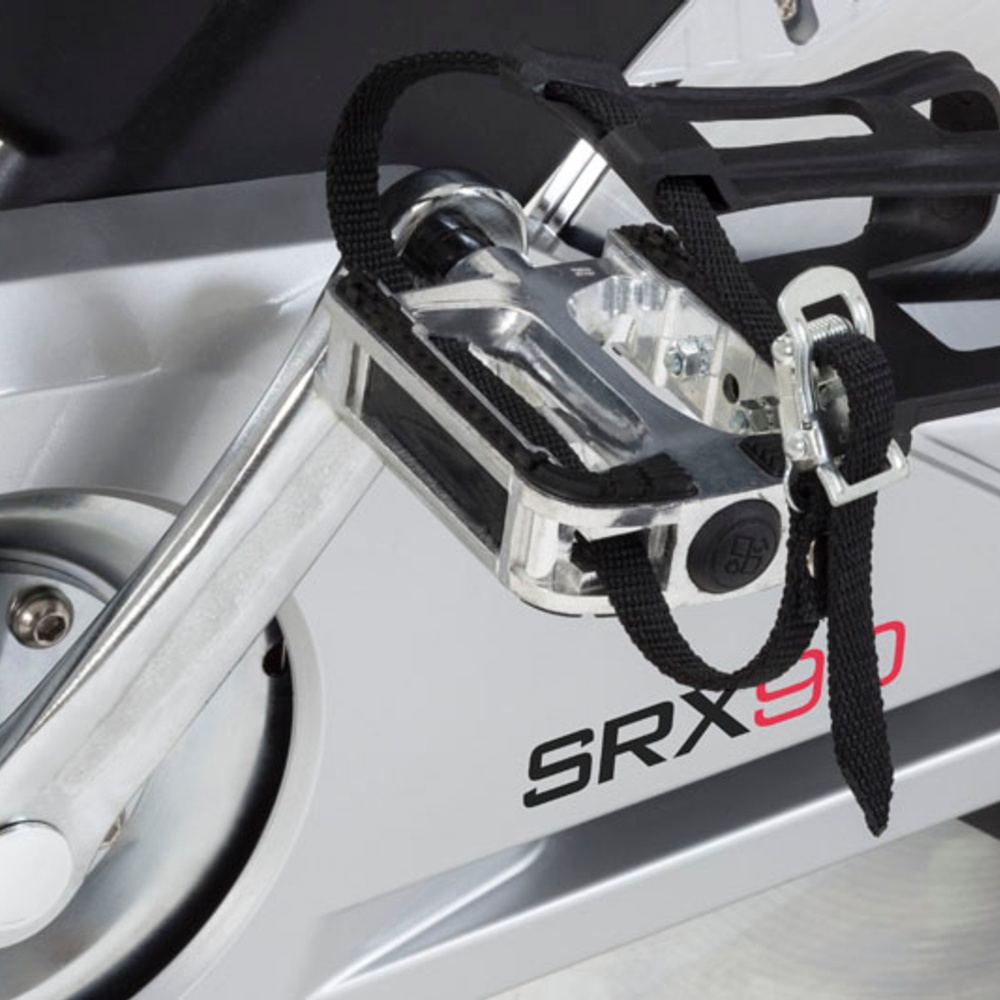

Pedalsquick cleat retention system SPD
Q FactorTotal: 19,5 cm. - Left: 9,1 cm | Right: 10,3 cm
Framehigh-density steel
Paintingheavy duty powder coating
Weight57 Kg
Set up size1250 X 540 X 1250 mm
Gross weight62 Kg
Packing size1080 x 225 x 890 mm
CompliancesCE-ROHS-EN957

* Measurements:

Fore & Aft Saddle position > from the seat anchor point to the minimum handlebar position
Handlebar height > from upper edge handlebar to bike support base (upper face)
Saddle height > from saddle anchor point (slide) to bike support base (upper face)
Handlebar position slide > Δ of the minimum and maximum position of the slide.
