SRX-75

Drive train belt - fixed gear. Braking system long life felt pad. Brake button for emergency stop. Flywheel system 22 kg (CNC-balanced). Built-in wireless pulse receiver.

Technical data

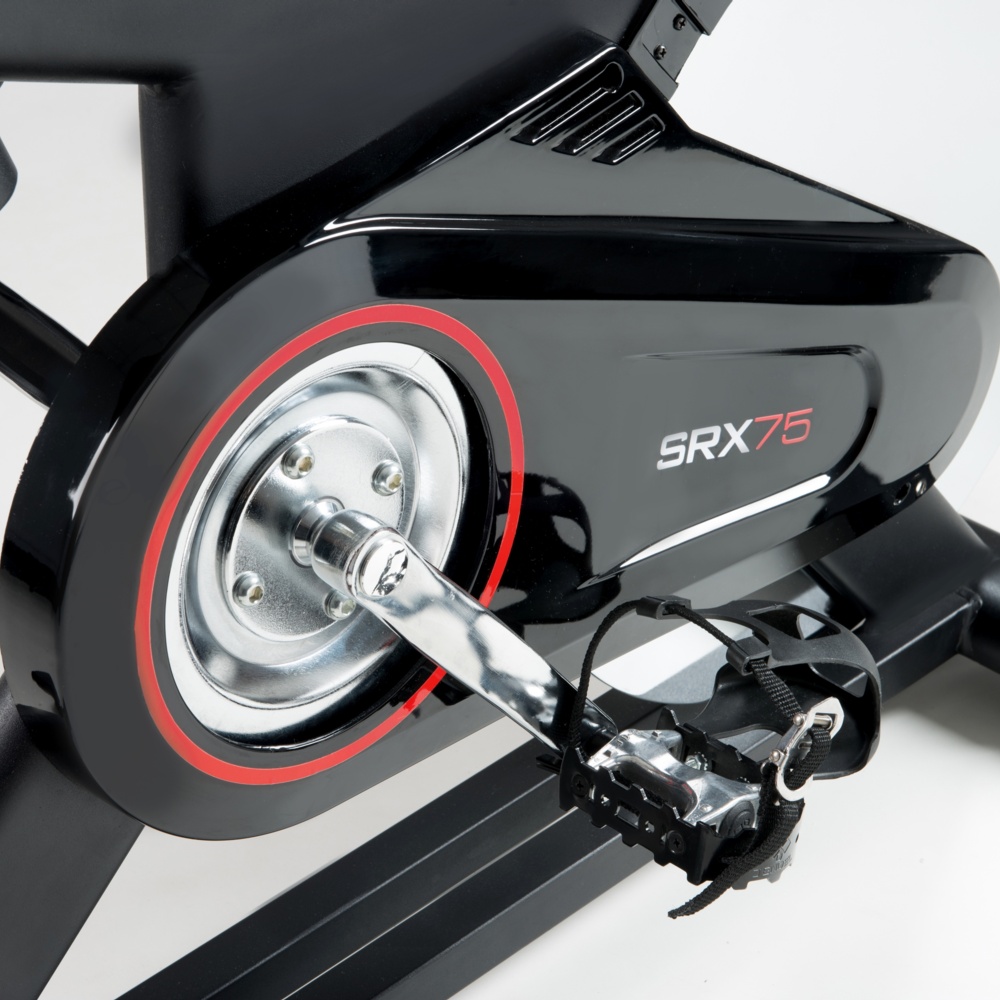

Drive trainbelt - fixed gear
Braking systemlong life felt pad. Brake button for emergency stop
Flywheel system22 kg (CNC-balanced)
Max user weight130 Kg

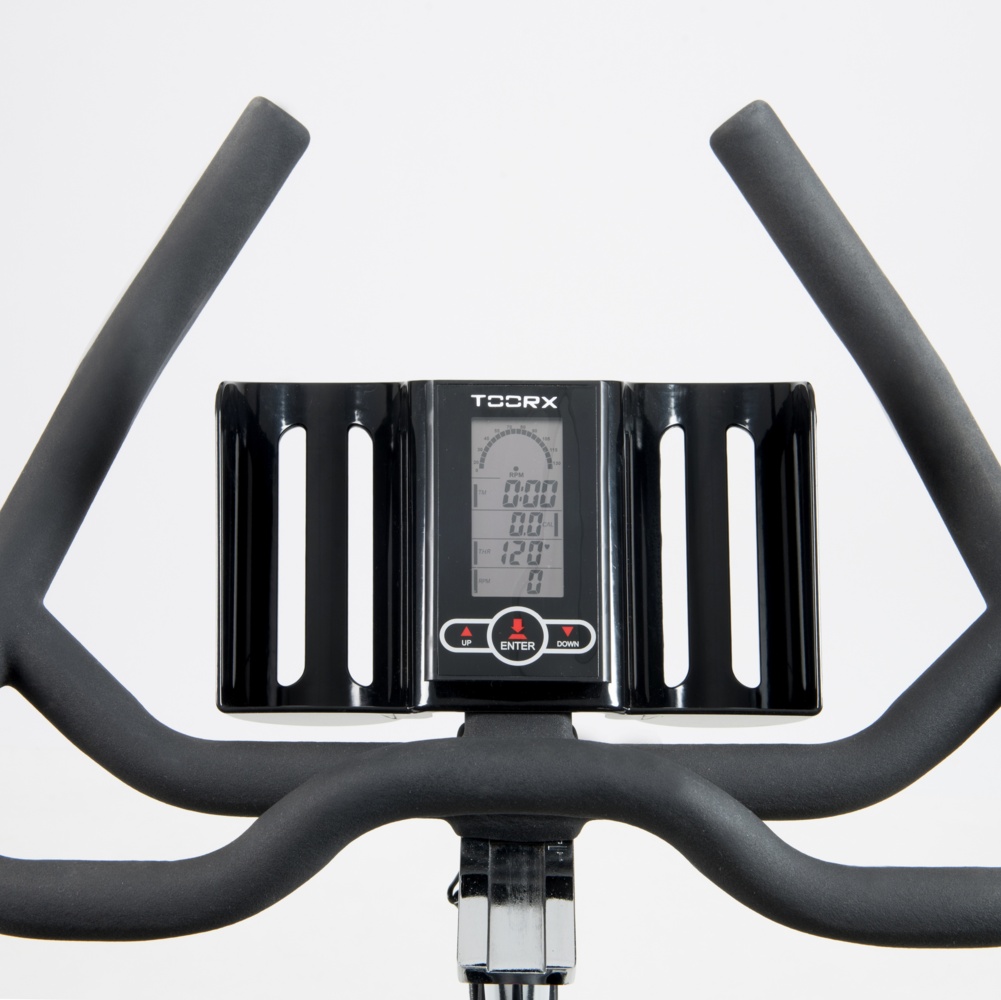

Console with LCDdistance, time, calories, pulse, speed, RPM

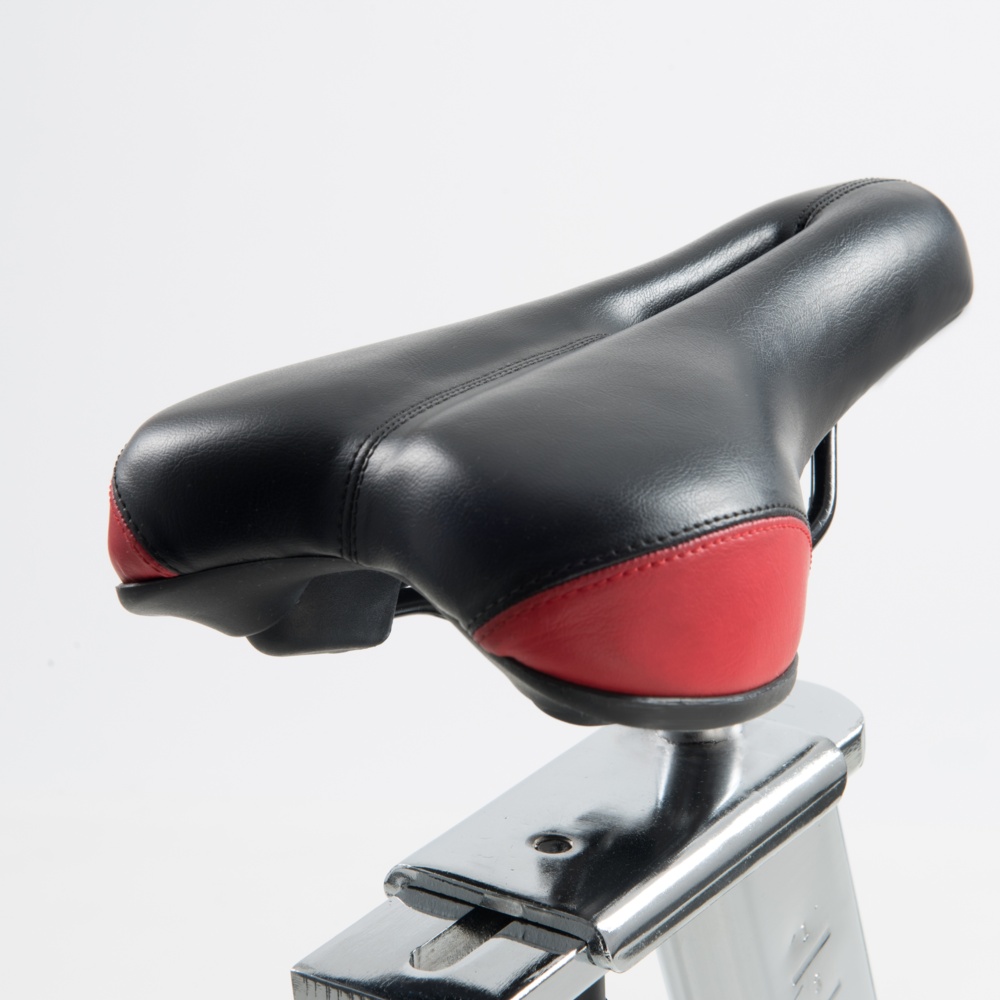

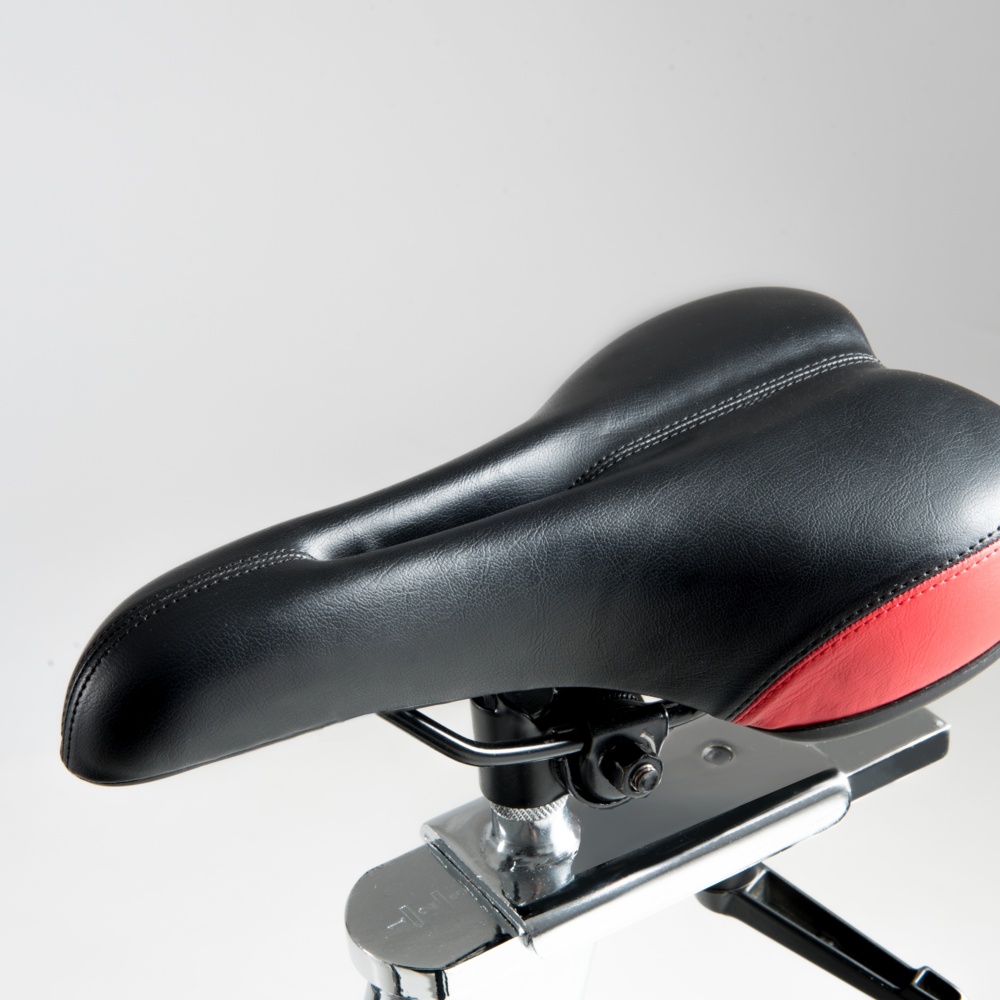

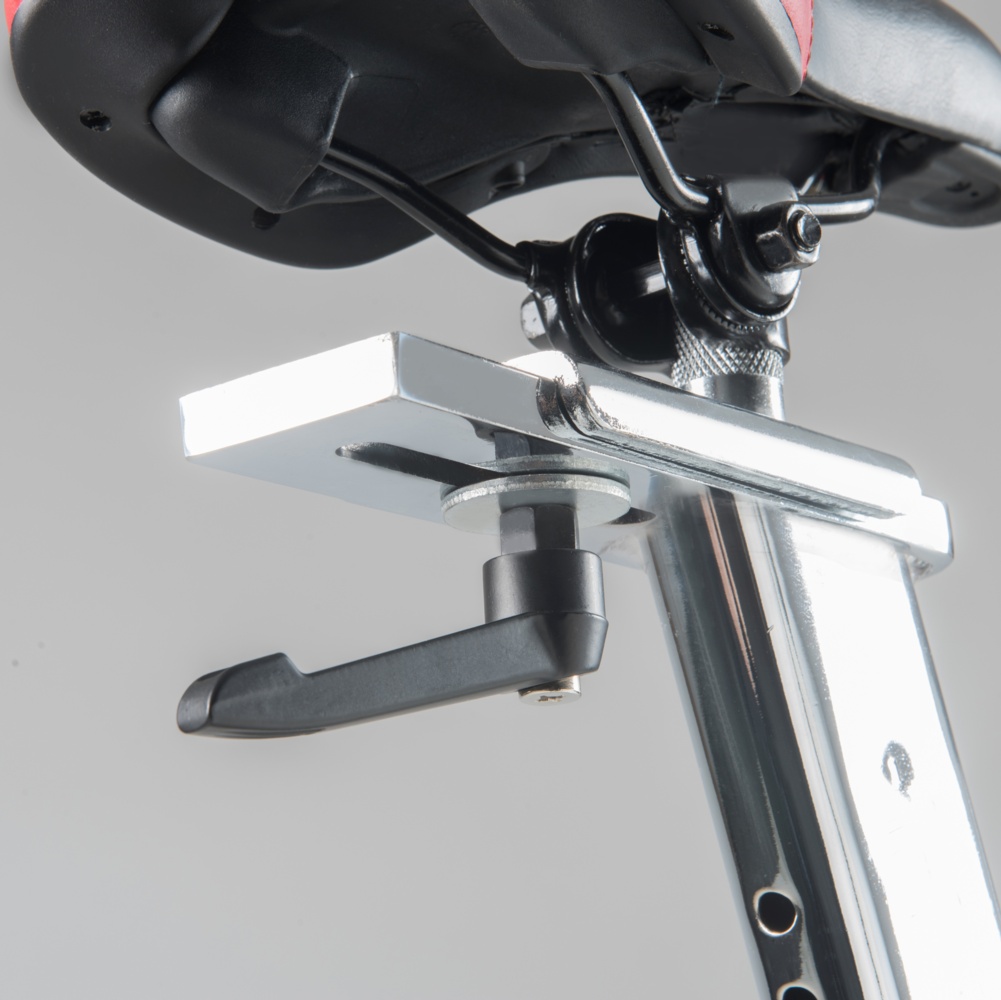

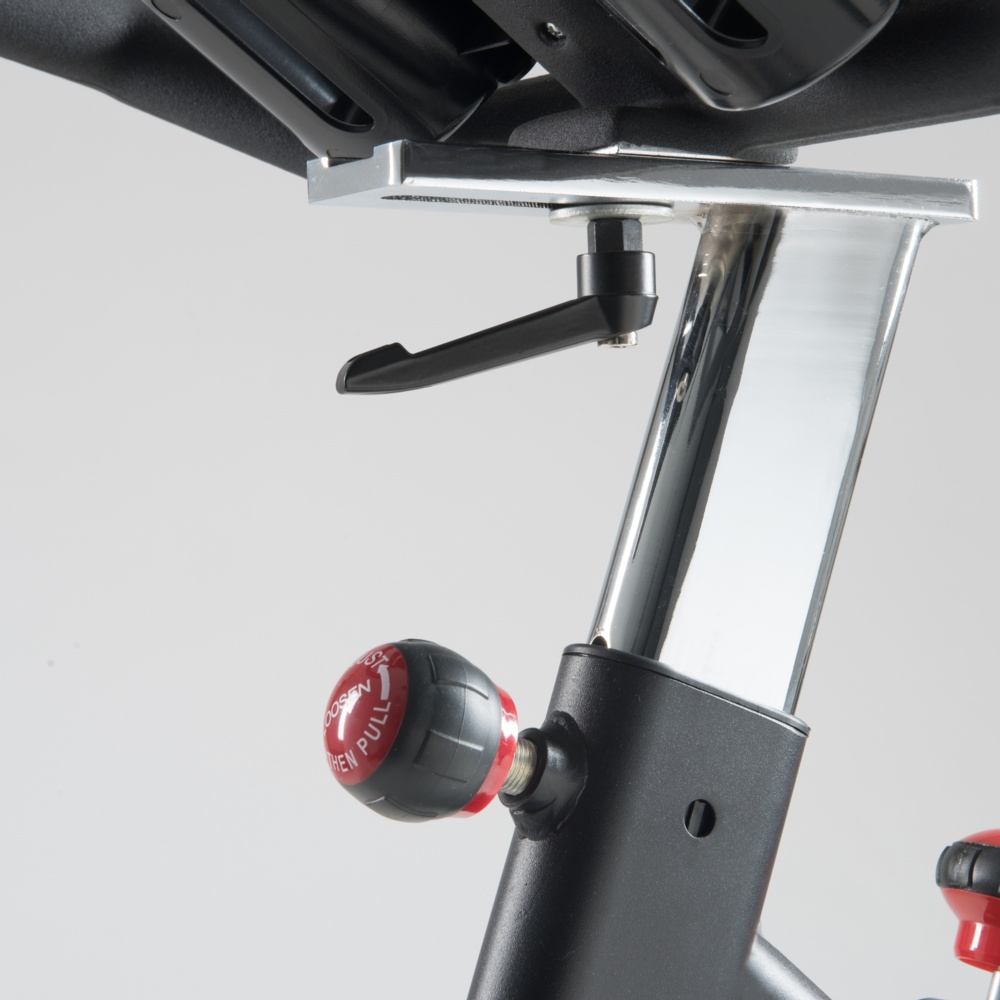

Seat positionbicolour saddle with vertical adjustment and micrometric horizontal adjustment
Handlebarvertical adjustment and micrometric horizontal adjustment with double bottle holder
Handlebar height *min 90 cm, max 100.5 cm

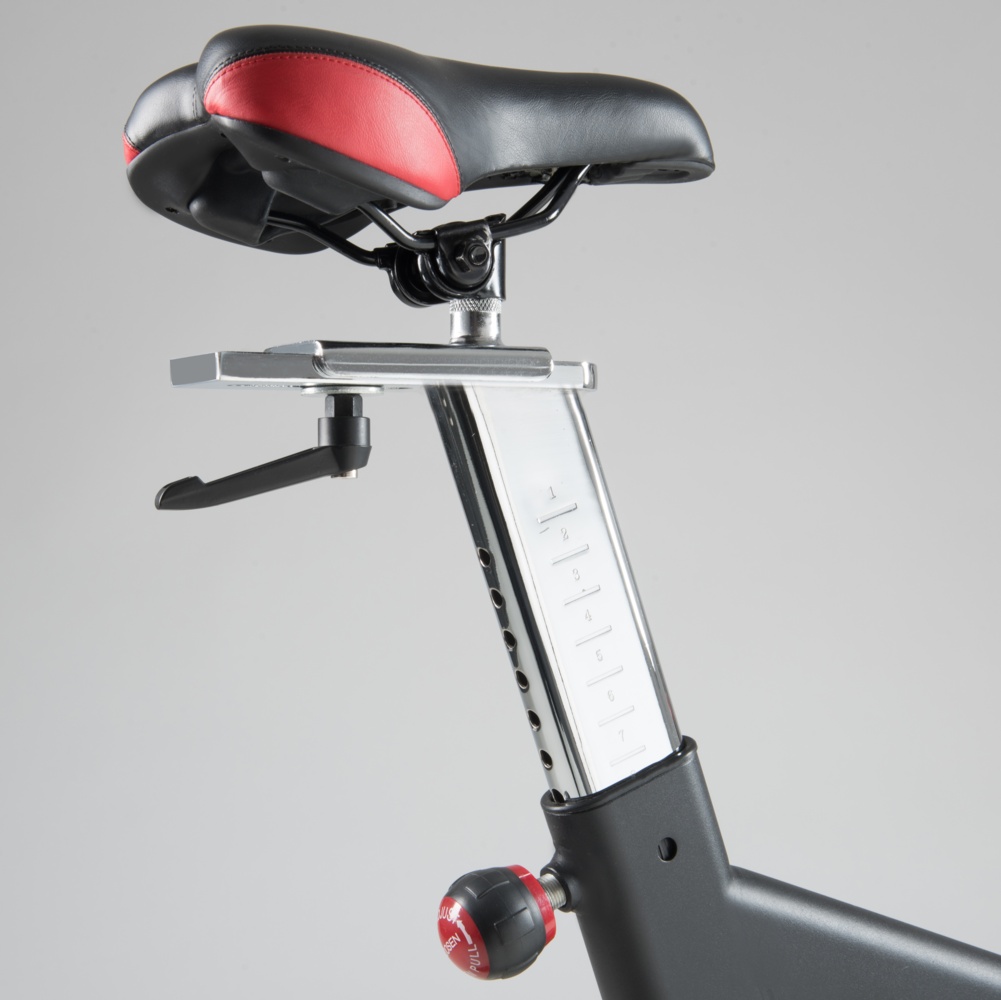

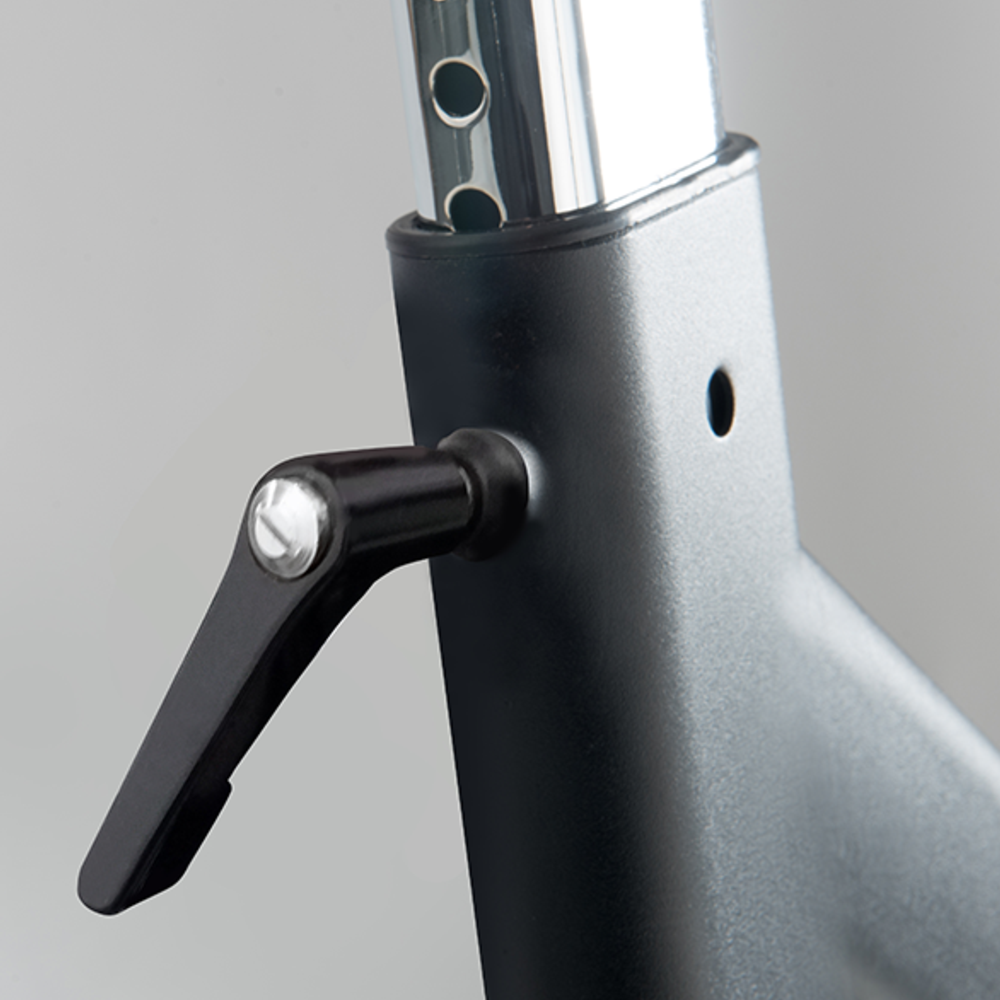

Sddle height *min 67 cm, max 90 cm
Handlebar position slide * +/- 8.5 cm
Fore & Aft Saddle position *min 57 cm, max 65 cm

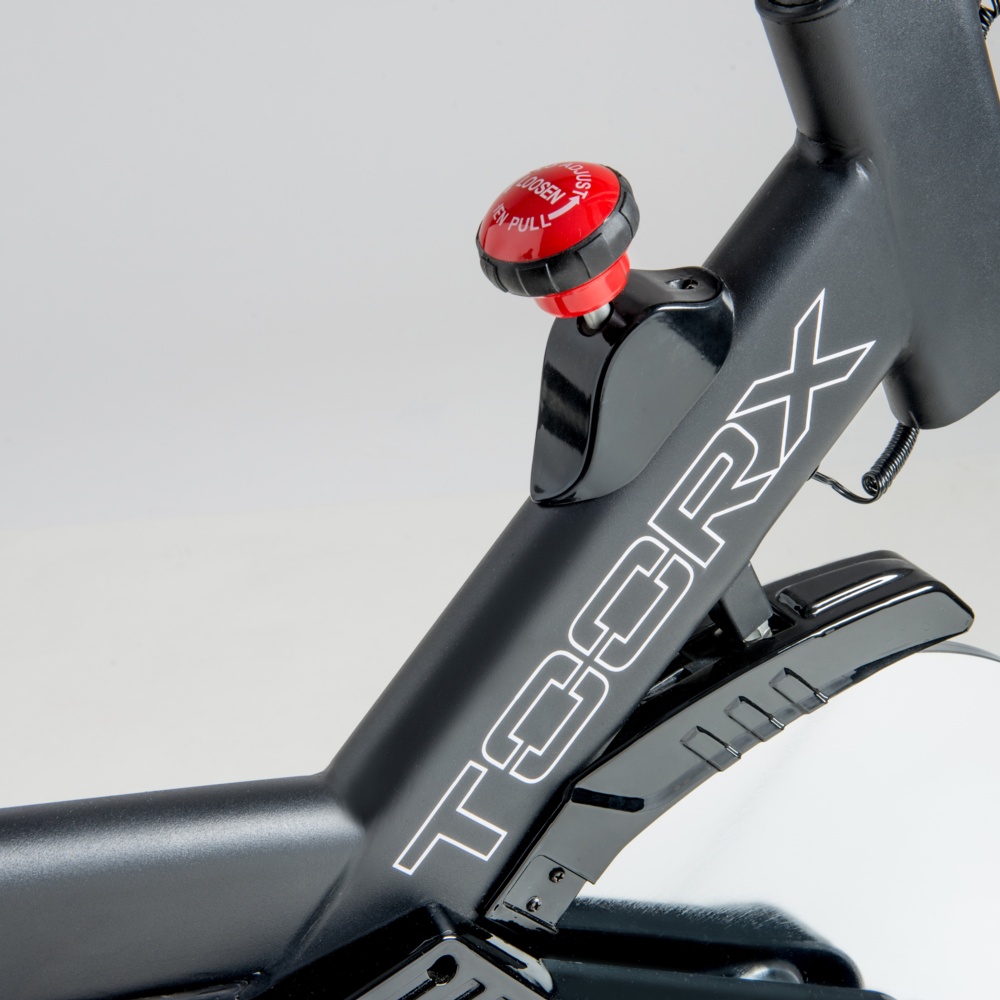

Resistance adjustmentmanual - micrometric
Heart ratebuilt-in wireless pulse receiver

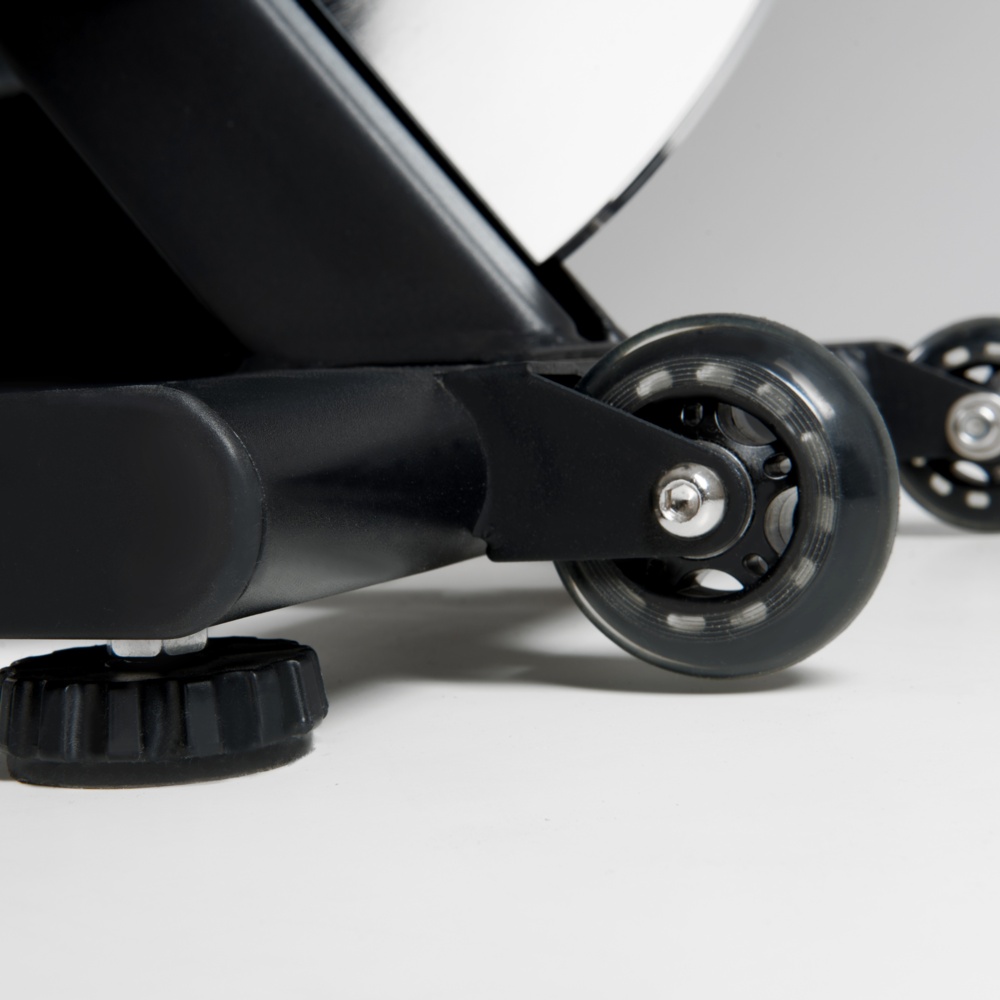

Moving wheelsyes
Rubber adjustment feetyes

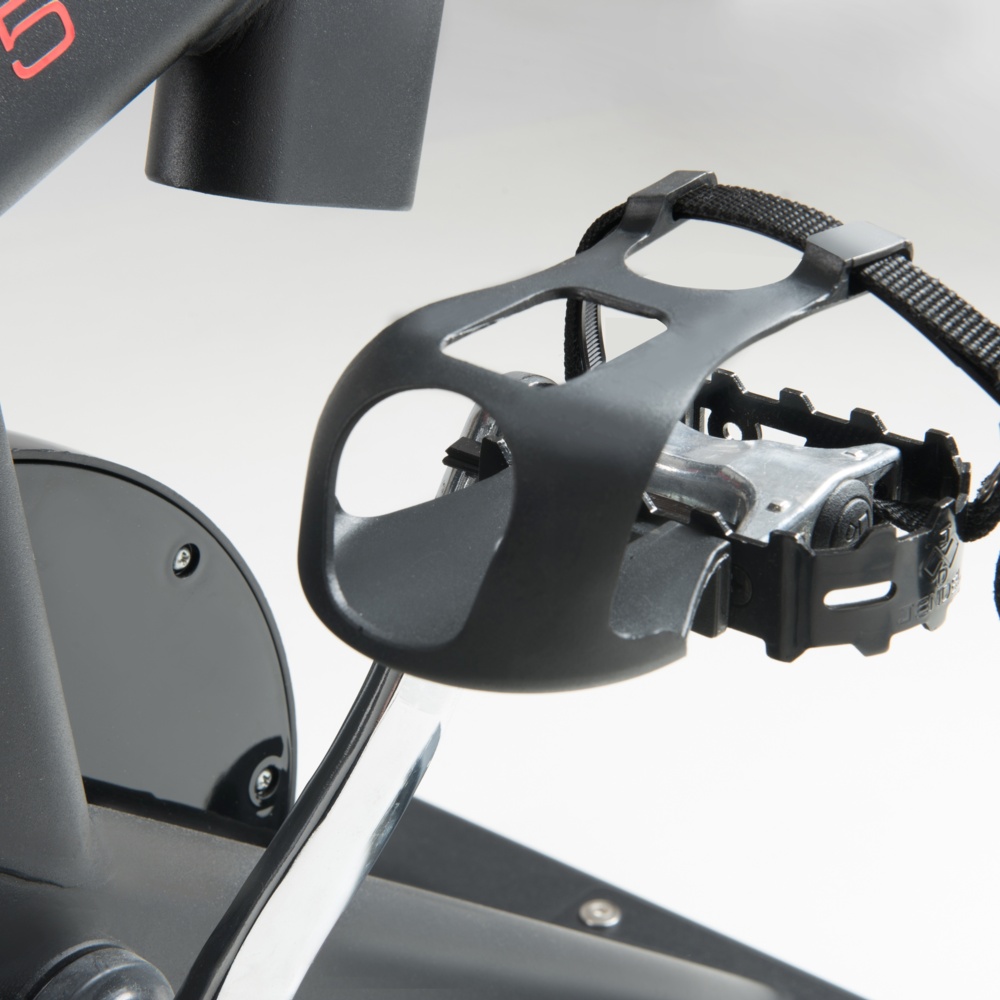

Pedal crank3 pieces
Framehigh-density steel
Paintingheavy duty powder coating
Weight50 Kg
Set up size1170 x 540 x 1250 mm
Gross weight54 Kg
Packing size1100 x 250 x 850 mm
CompliancesCE-ROHS-EN957

* Measurements:

Fore & Aft Saddle position > from the seat anchor point to the minimum handlebar position
Handlebar height > from upper edge handlebar to bike support base (upper face)
Saddle height > from saddle anchor point (slide) to bike support base (upper face)
Handlebar position slide > Δ of the minimum and maximum position of the slide.
