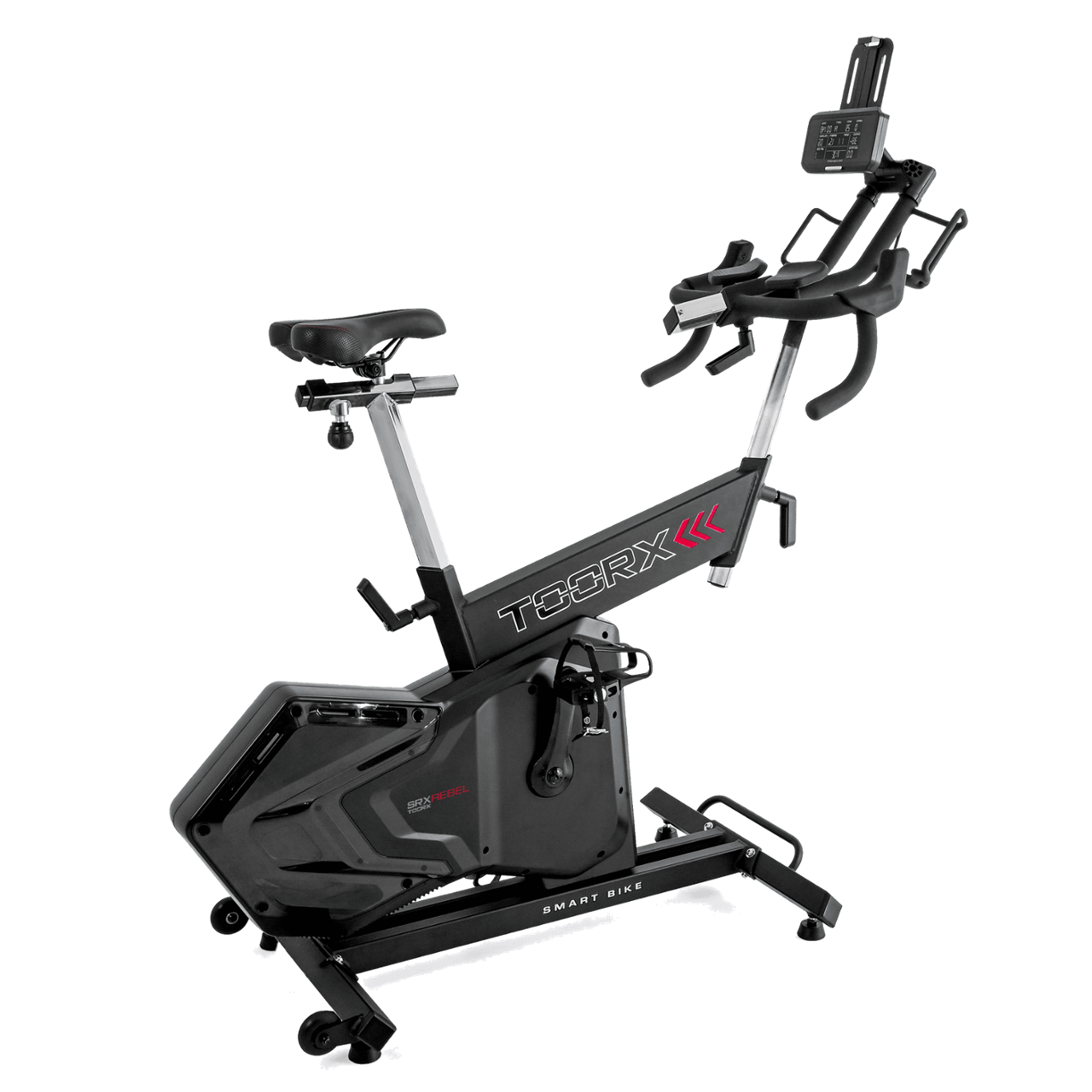

SRX-REBEL
NEW!!

cod. SRX-REBEL

SRX-REBEL
  • KEY POINTS
  • SRX REBEL, SMART BIKE ergometer, with dual coil induction brake, thanks to the simulation of 24 virtual ratios (Shimano Level 1 34-30, Shimano Level 24 50-11) and inclination up to 15%, its multiple micrometric adjustments and interaction with all the most popular APPS in the cycle sector, such as ZWIFT, BKOOL, ROUVY, KINOMAP, FULLGAZ, WAHOO, etc., is an ideal alternative to the smart bikes of the most renowned brands, being able to meet the performance expectations of the most demanding users (up to 2000 WATTS of power) guaranteeing significant economic savings, although without any sacrifice.

    SRX REBEL is not only designed for cyclists, but can also count on a profile dedicated to users who want an effective cardio fitness workout (80 resistance levels), thanks to the numerous programs, including HRC, provided by the free I-Console APP, with an extremely accurate measurement of the watts expressed during training.

    For more information see the extended presentation of the SRX REBEL.

    FIND OUT MORE !


     Up to 2000 WATTS of power
     Effort adjustment with dual BIKE and FITNESS MODES
    • FITNESS: 80 levels;

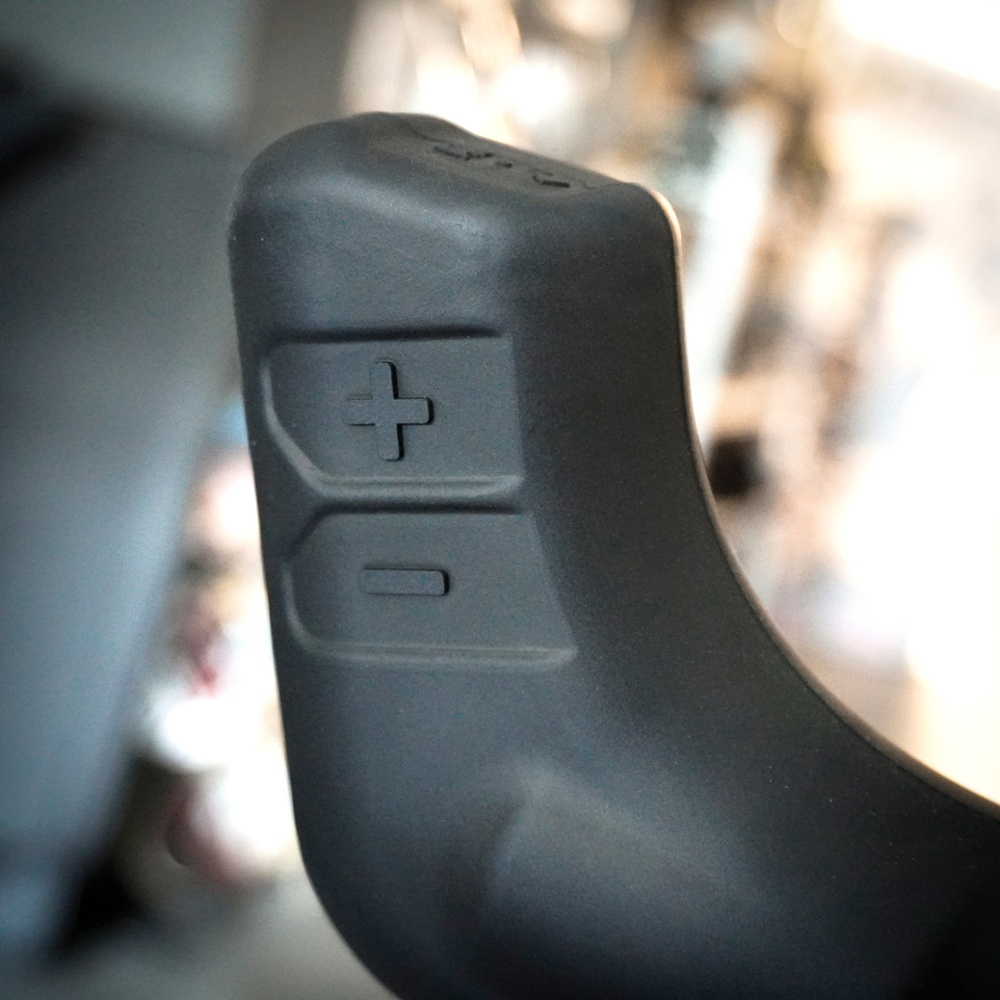

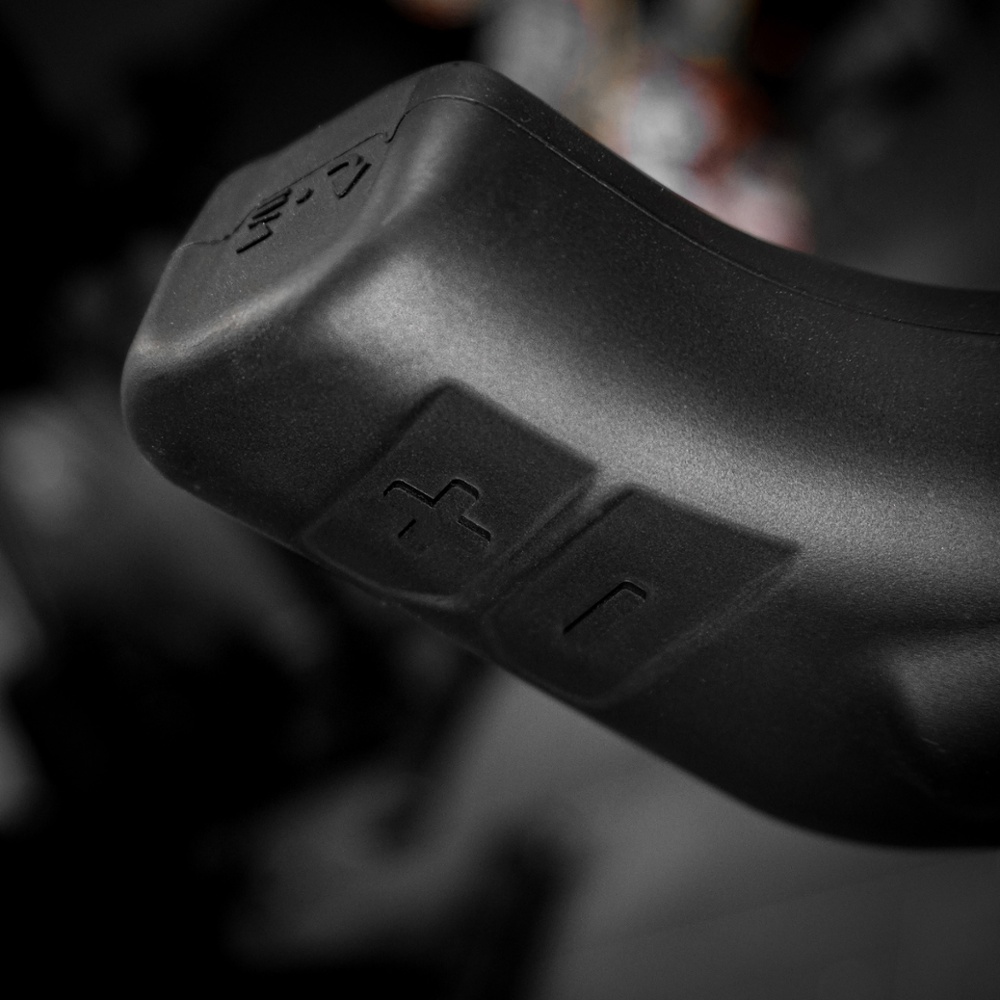

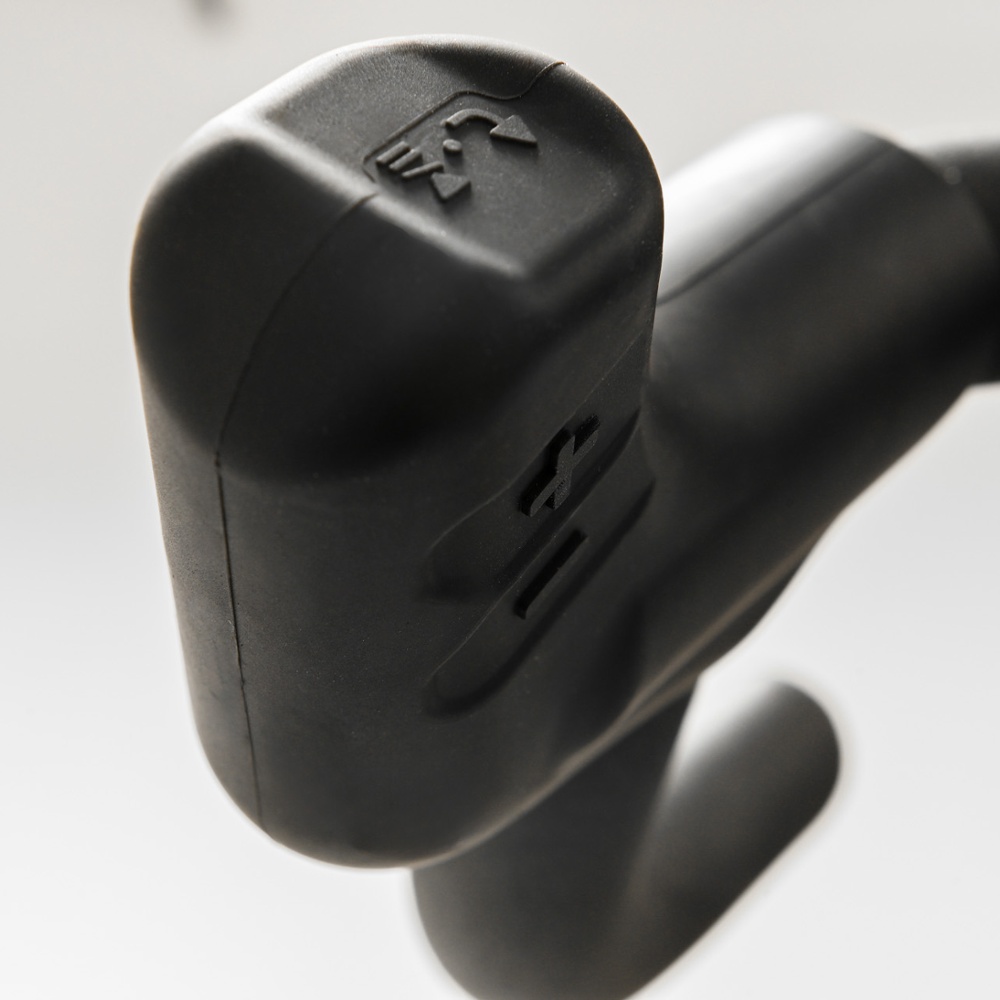

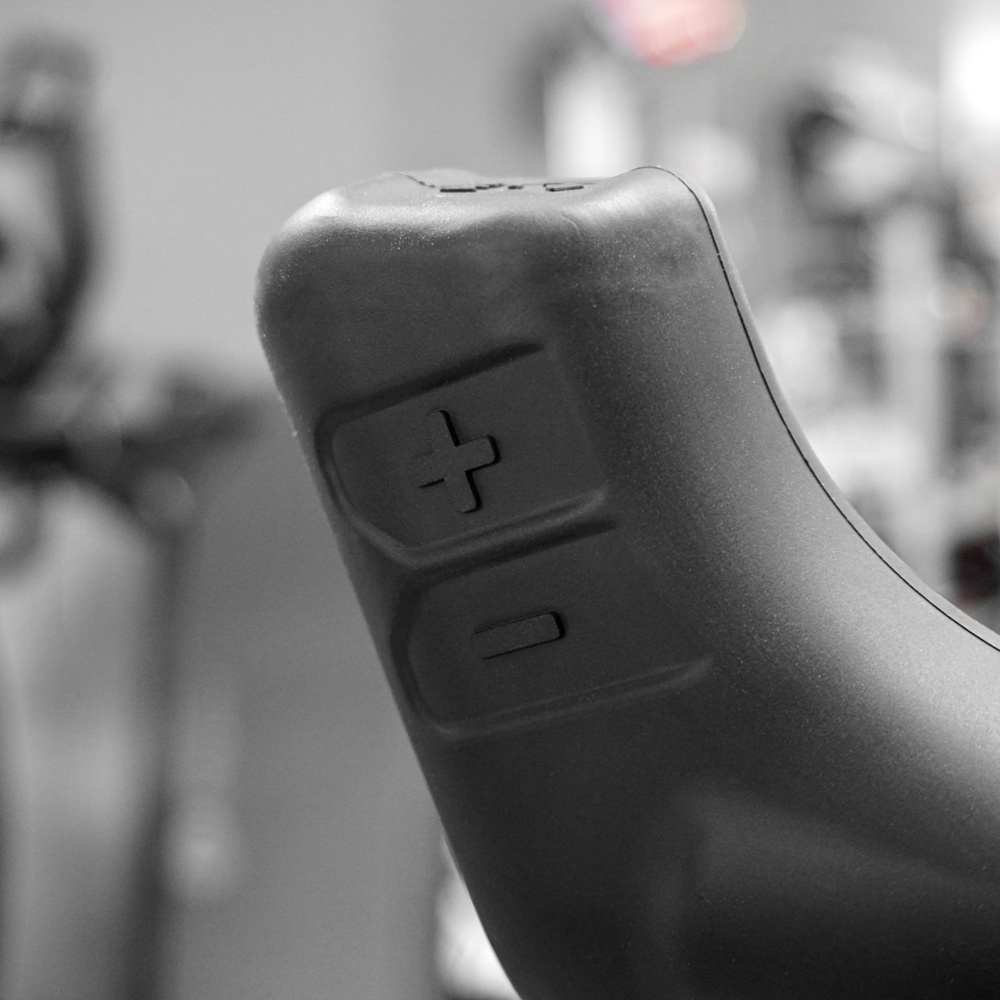

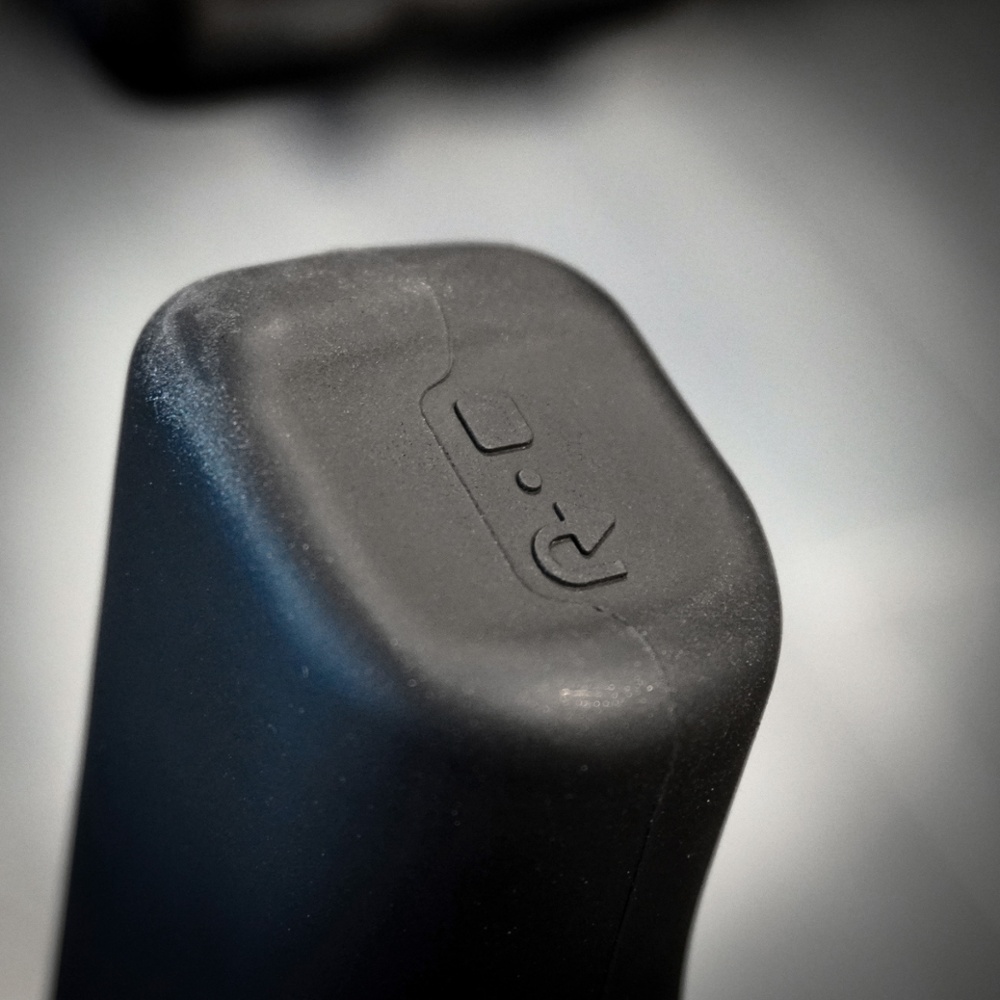

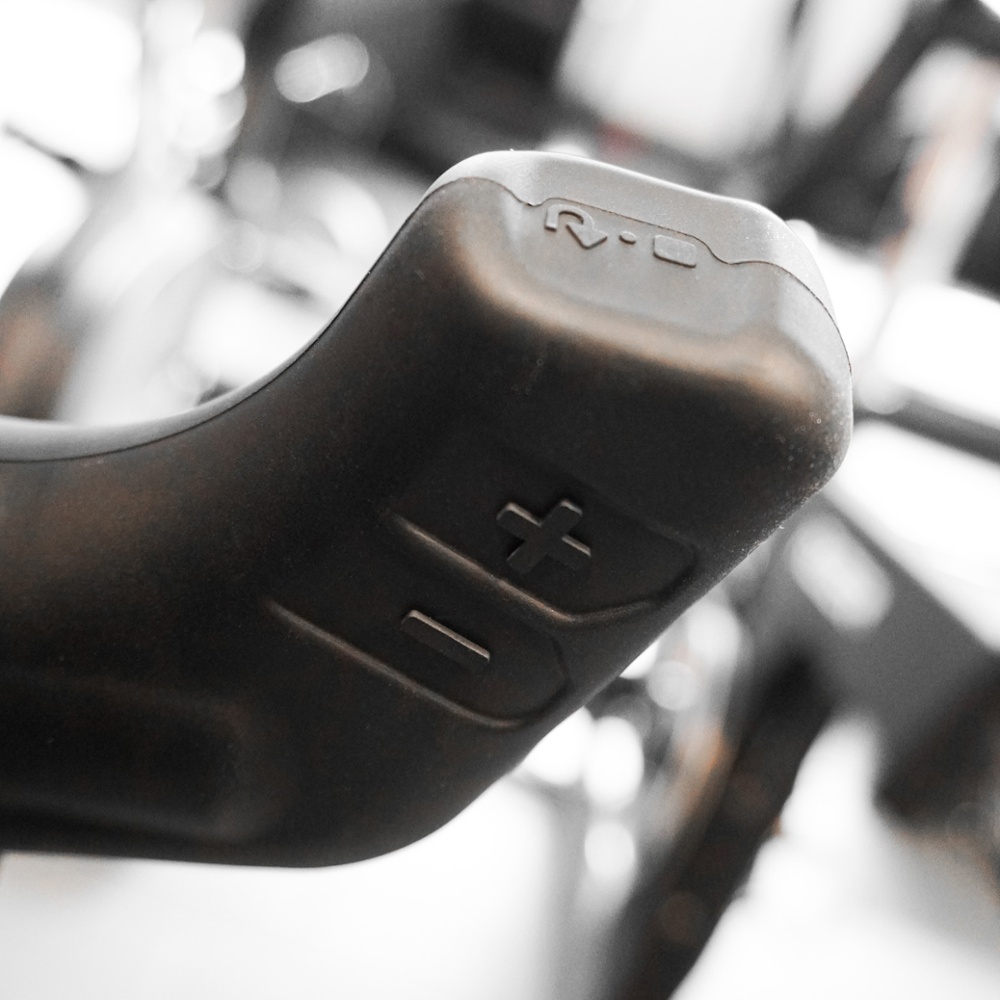

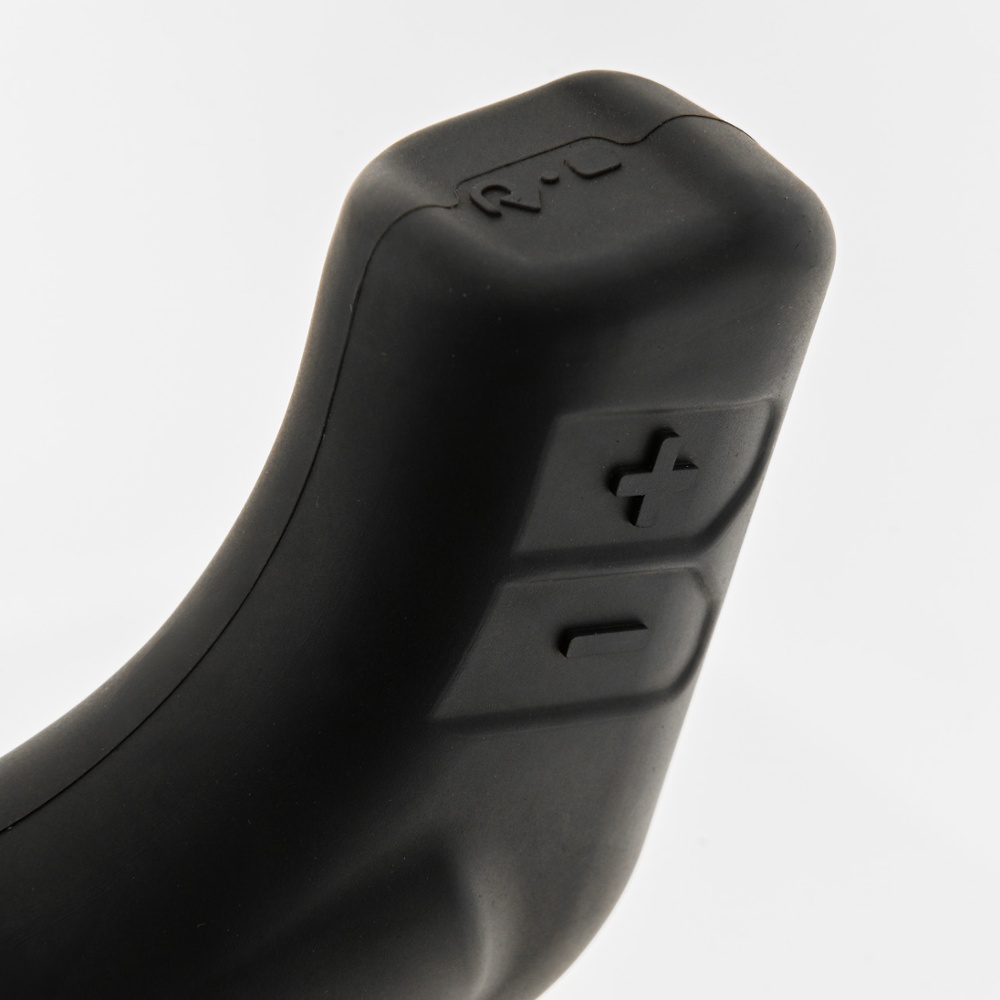

    • BIKE: 24 Ratios and 15% incline. The Rebel can change the virtual ratio (gear) on 24 levels (level 1: Shimano 34-30 | Level 24: Shimano 50-11) and simulate the inclination up to 15% (step from 0.5), operations that can be carried out through the (+) and (-) buttons on the right and left levers, offering an even more realistic and engaging cycling simulation.
     BELT drive with freewheel Ergometer-Magnetic
     (EMS) braking SYSTEM
    with dual coil induction and electronic stress regulation
     CARDIO DETECTION
    Integrated ant+ Wireless Receiver/5.3kHz/BT
     App Ready 4.0 FTMS transmission
    compatible with ZWIFT*, BKOOL*, ROUVY,* KINOMAP*, FULLGAZ*, WAHOO*, Iconsole+ (*subscriptions not included).

    • iconsole
    • kinomap
    • zwift
    • bkool
    • rouvy
    • wahoo
    • fulgaz

the images and the data cointained in web site and catalogue may differ in some details from the originals.

Technical data

Drive train
Drive trainBelt drive with freewheel
Braking system
Braking systemErgometer with induction double coil magnetic breaking system with electronic resistence adjuster
Flywheel system
Flywheel systemWeight 11 kg (perceived 21.5 kg)
Max user weight
Max user weight150 Kg
Console with LCD
Console with LCDThe REBEL's backlit LCD display offers optimal visibility in all lighting conditions, allowing you to easily monitor all workout parameters.
Console

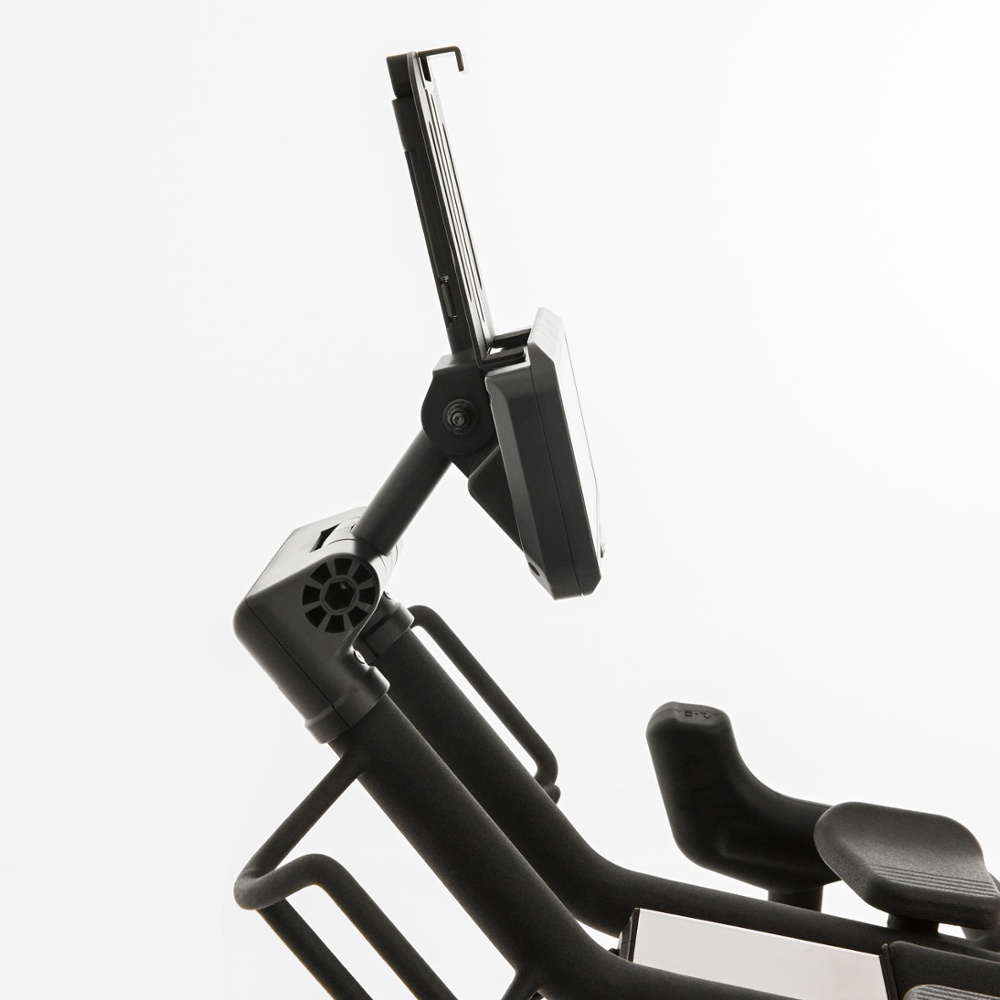

ConsoleMicrometric adjustable incline. Support for smartphones and tablets included.
Functions
FunctionsTime, RPM, speed, calories, Watt, HR Zone, Watt Zone, SP, VI, SV, EPV. Incline: synchronized and interactive (APP) in bike mode.
Programs
ProgramsRIDE/ERG/FTP TEST/4 user/Max Watt 2000/ Firmware updates: OTA via Iconsole+
App Ready
App Ready

App Ready 4.0. Bike/App data transmission protocol FTMS (Fitness Machine Service), making it compatible with the most popular and widely used cycling training apps: ZWIFT*, BKOOL*, ROUVY*, KINOMAP*, FULLGAZ*, WAHOO*, Iconsole+ (*subscriptions not included).

Seat position

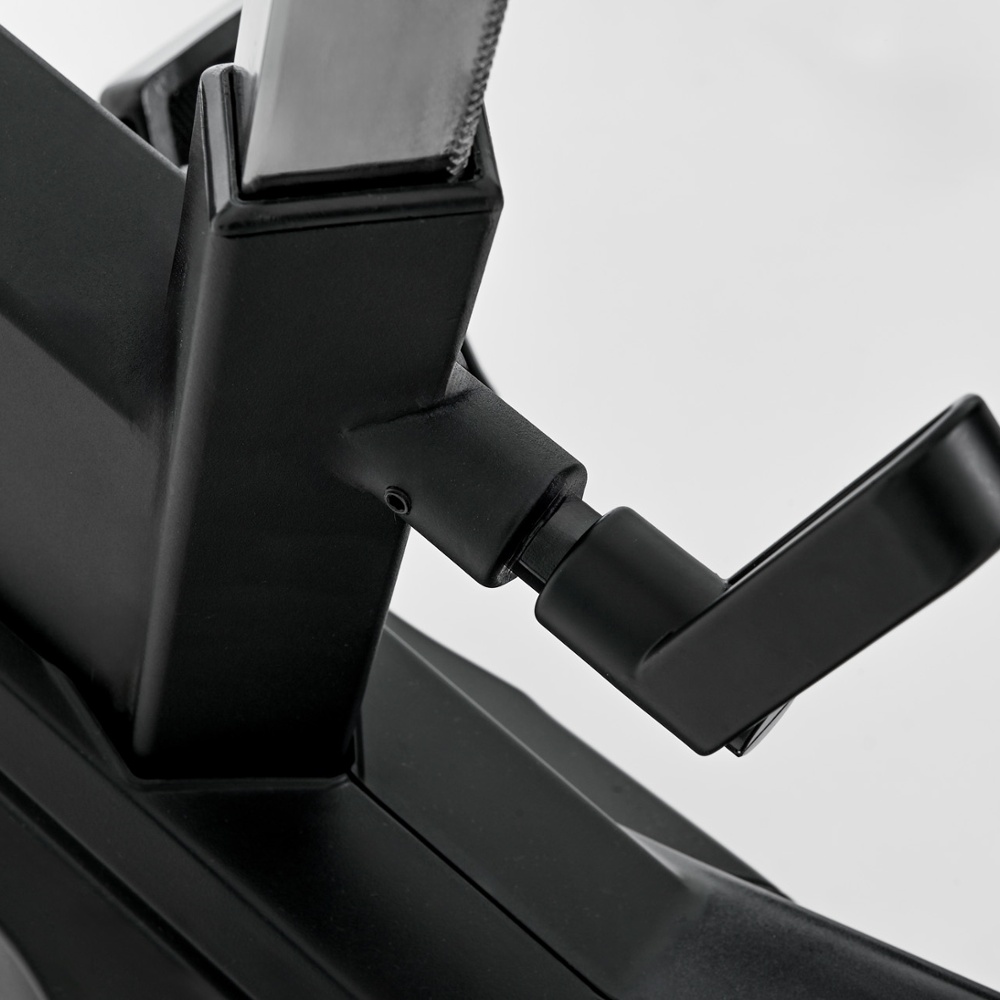

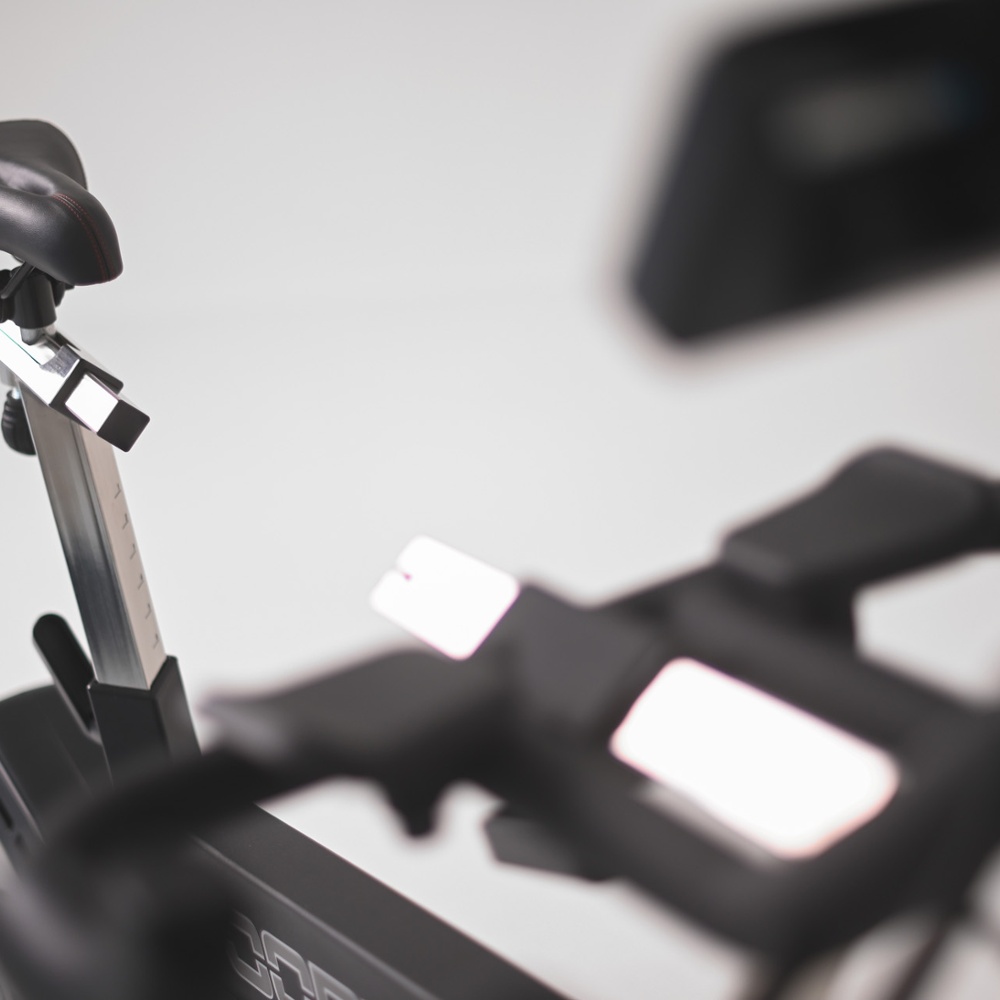

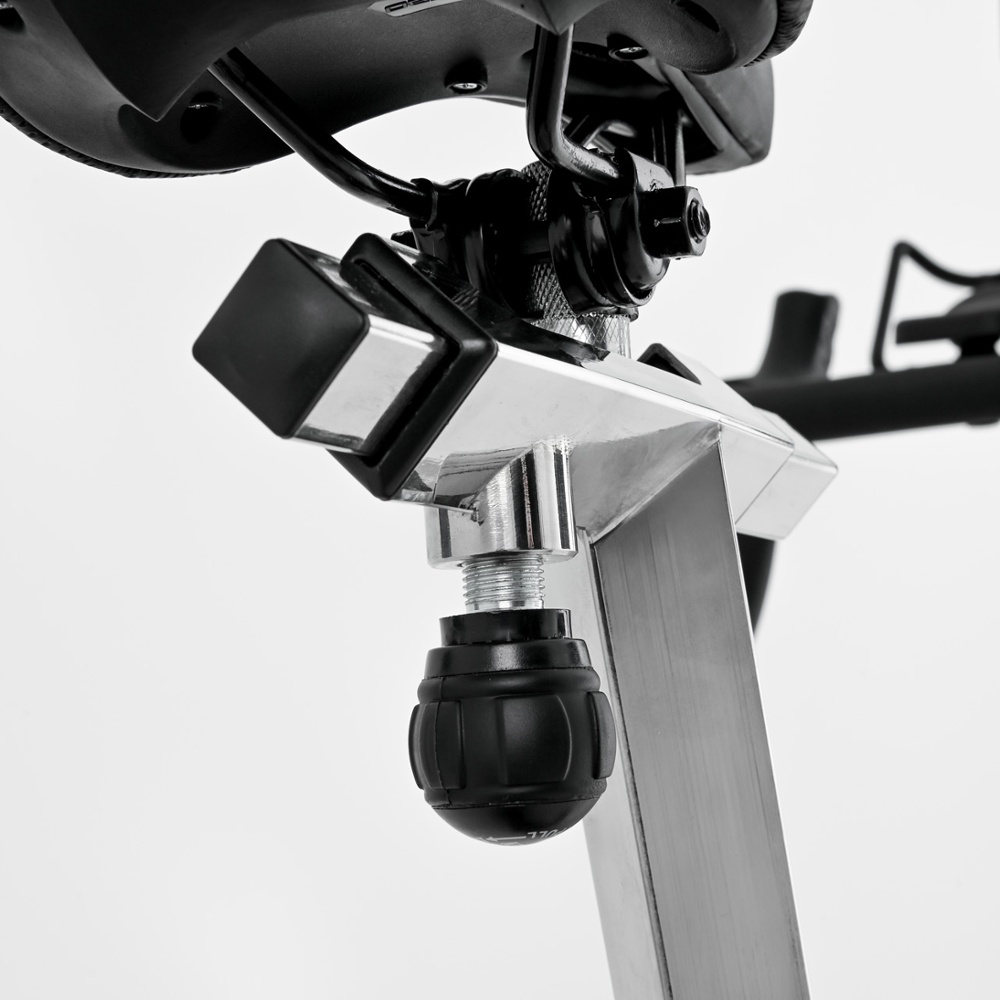

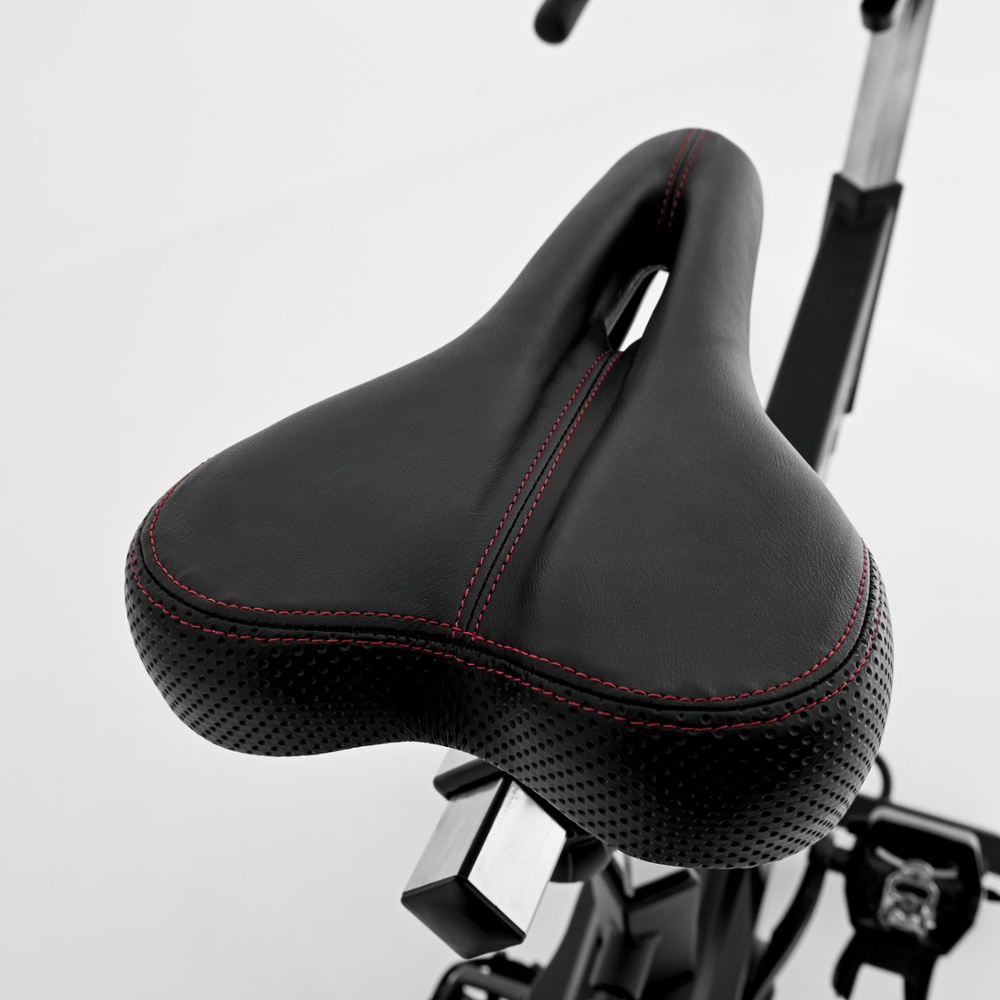

Seat positionmicrometric vertical adjustment with 2.5mm step rackand micrometric horizontal adjustment
Handlebar

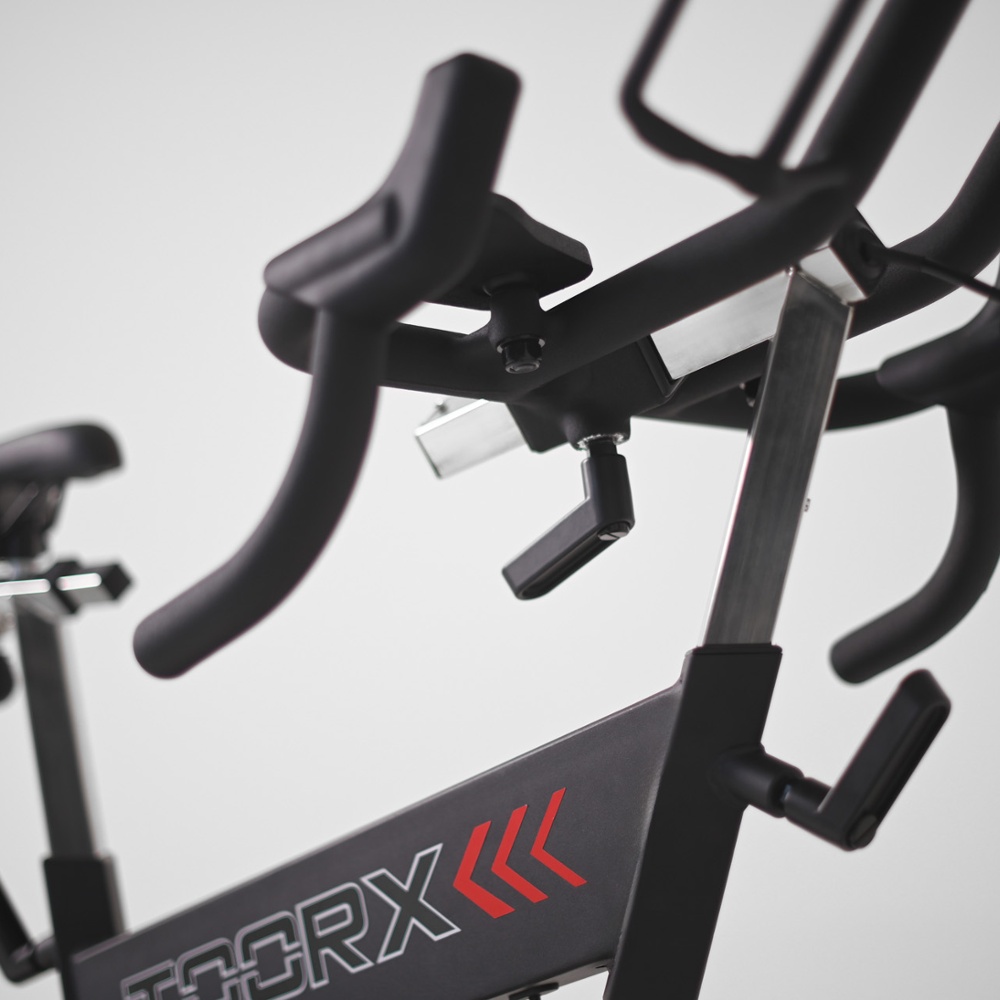

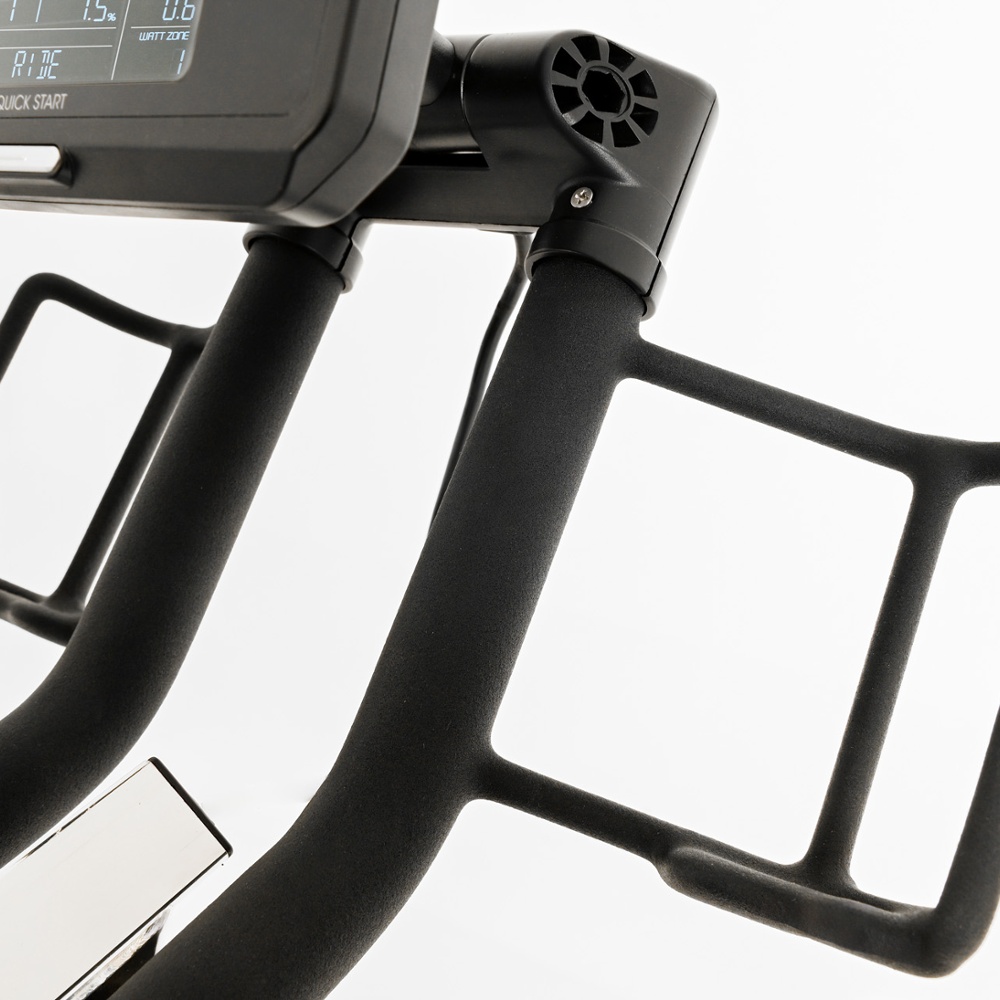

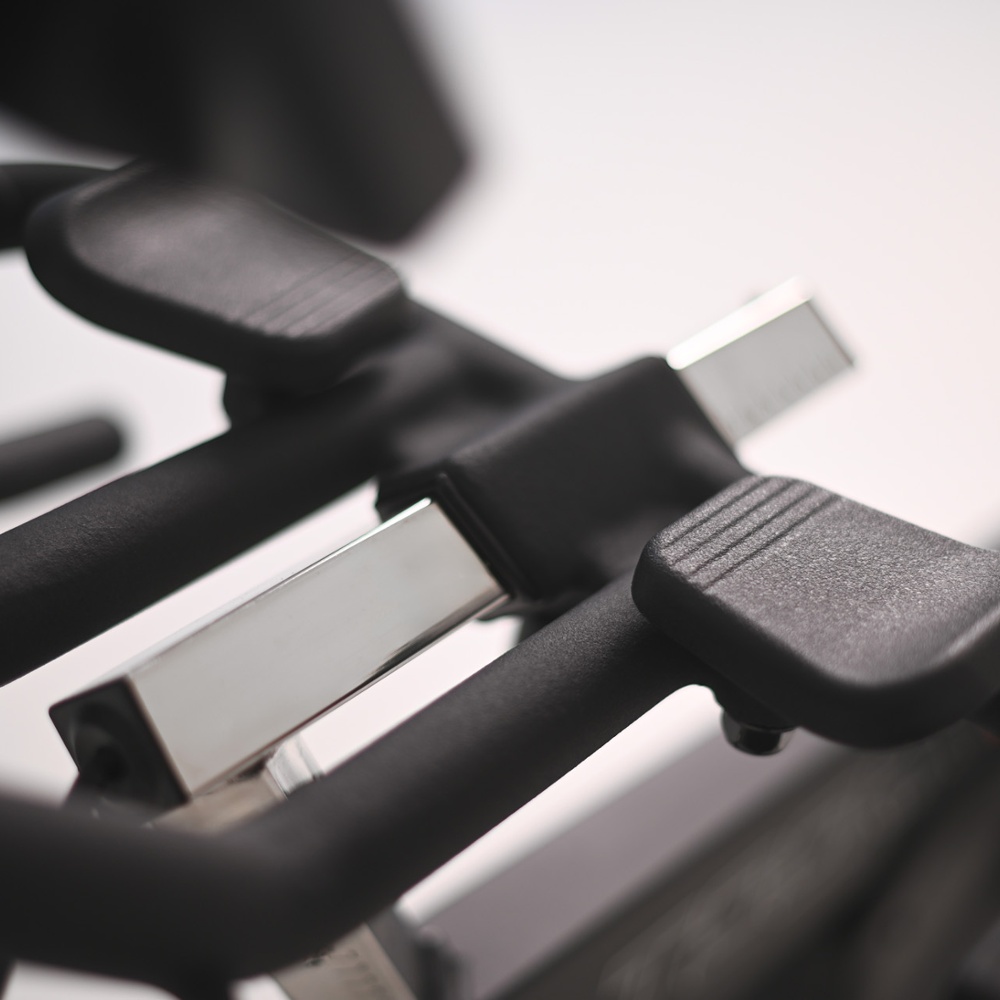

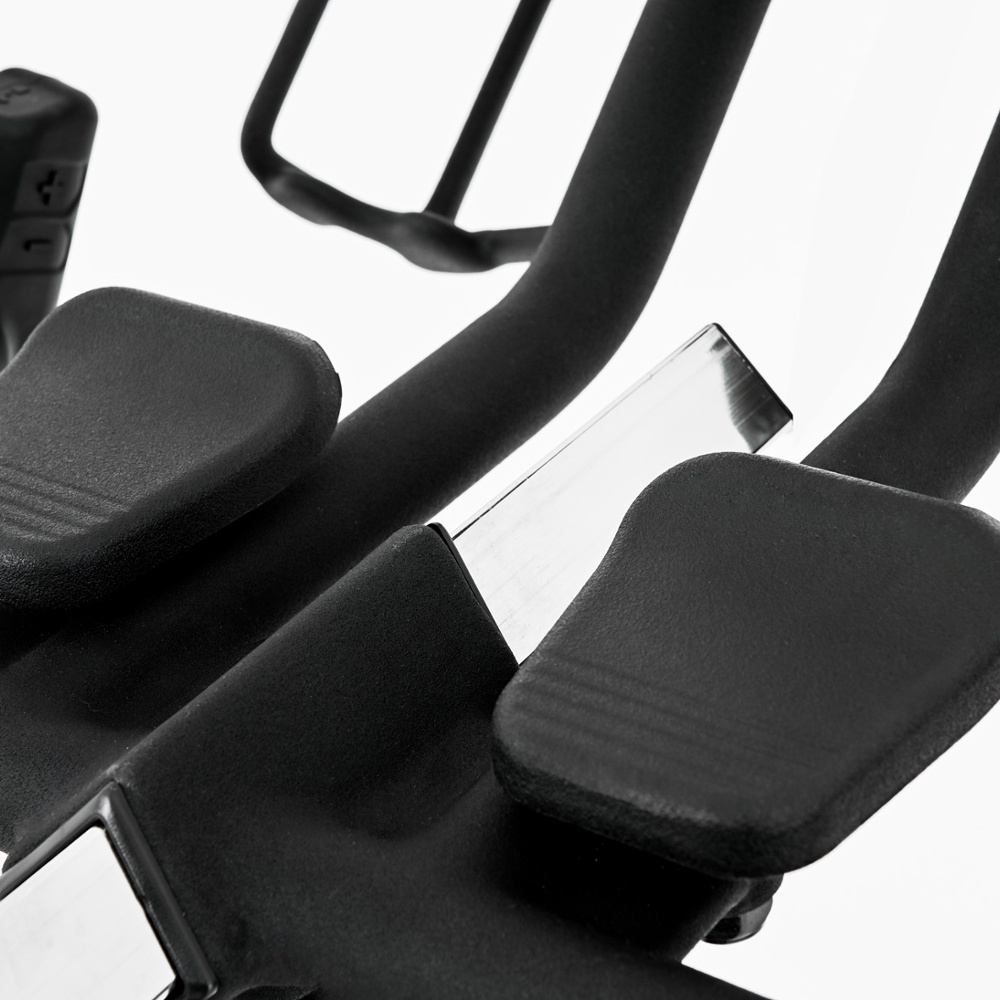

HandlebarDesigned to offer all the typical cycling grips: horizontal position, low hands, levers and time trial. For the latter, there are two rotatable supports to support the forearms. This allows an accurate simulation of the chrono position. The supports can be rotated to the rest position, thus allowing a comfortable grip without interference with the hands in the non-TTT (time trial) sockets. The handlebar body also includes 2 side water bottle holders that can be easily reached during training. Vertical and horizontal micrometric adjustment
Resistance adjustment
Resistance adjustmentFITNESS: 80 levels; BIKE: 24 Gears and 15% incline. The Rebel can change the virtual gear on 24 levels (Level 1: Shimano 34-30 | Level 24: Shimano 50-11) and simulate incline up to 15% (0.5% steps). These operations can be performed using the (+) and (-) buttons located on the right and left shifters, providing a more realistic and immersive cycling simulation.
Heart rate
Heart rateBuilt-in wireless pulse receiver ANT+/5.3kHz/BT
Moving wheels
Moving wheelsyes
Rubber adjustment feet

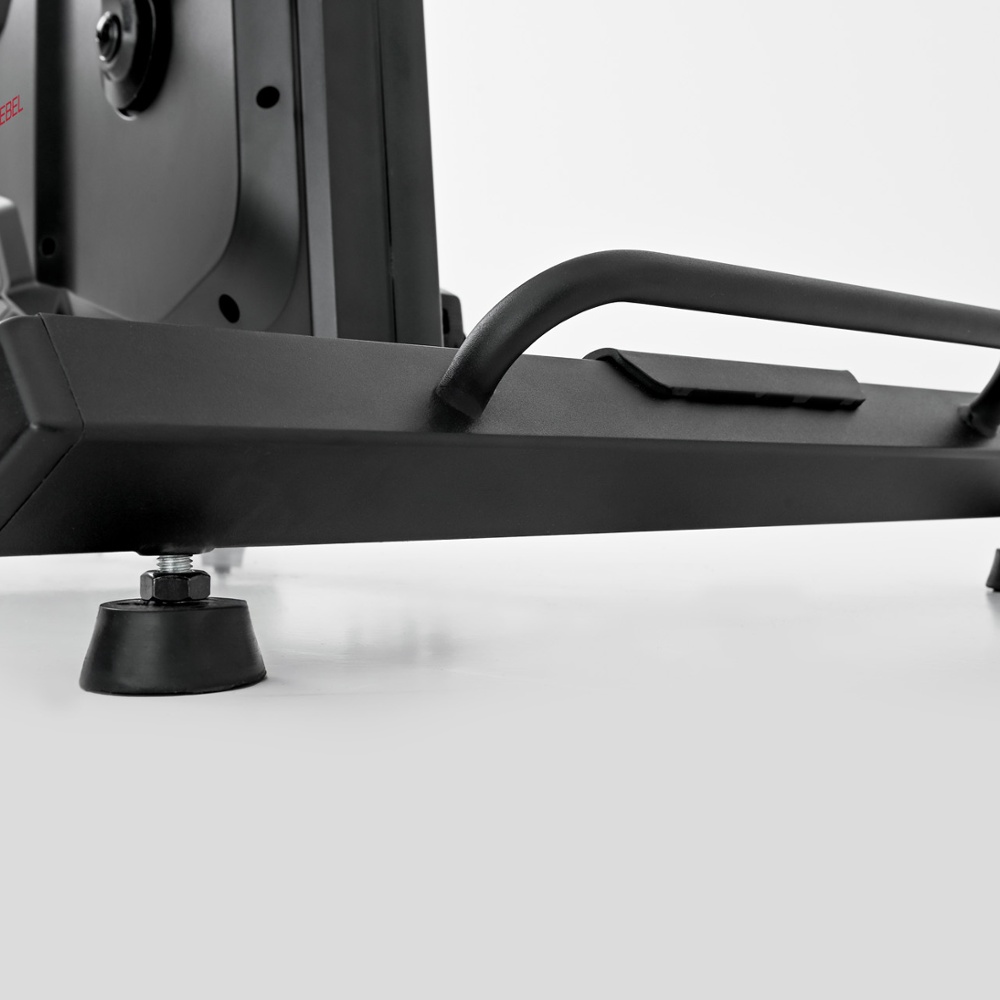

Rubber adjustment feetyes
Pedal crank
Pedal crank3 pieces
Pedals
Pedalsquick cleat retention system SPD
Equipment
Equipmentcontrol buttons: positioned on the handlebars, like on road bikes, for a more intuitive and realistic riding experience.
Weight
Weight57 kg
Set up size
Set up size1236 x 603 x 1322 mm
Gross weight
Gross weight65 kg
Packing size
Packing size1550 x 250 x 910 mm
Compliances
CompliancesCE-ROHS-EN957
Product code
Product codeSRX-REBEL
EAN
EAN8029975809731
