SRX-50 S

Drive train chain - fixed gear. Braking system long life felt pad. Brake lever for emergency stop. 20 Kg flywheel system (balanced). Hand pulse.

Technical data

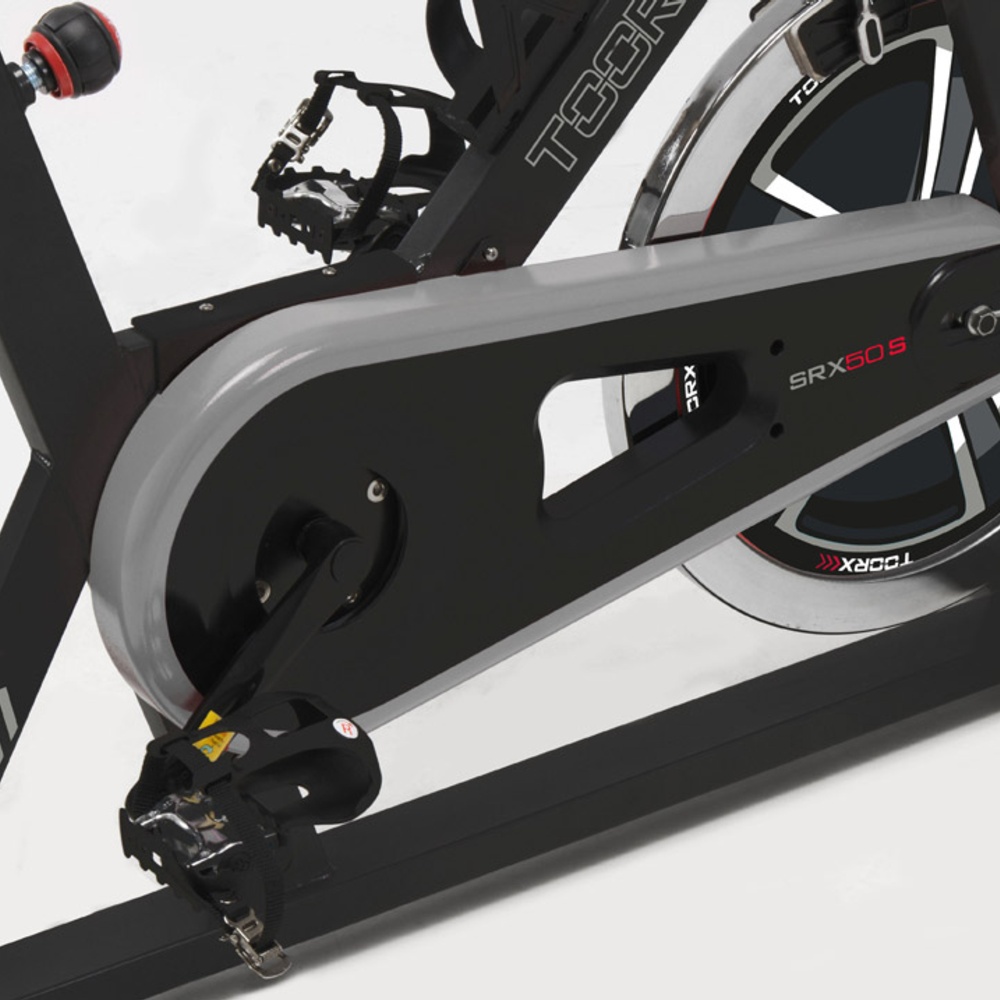

Drive trainchain - fixed gear

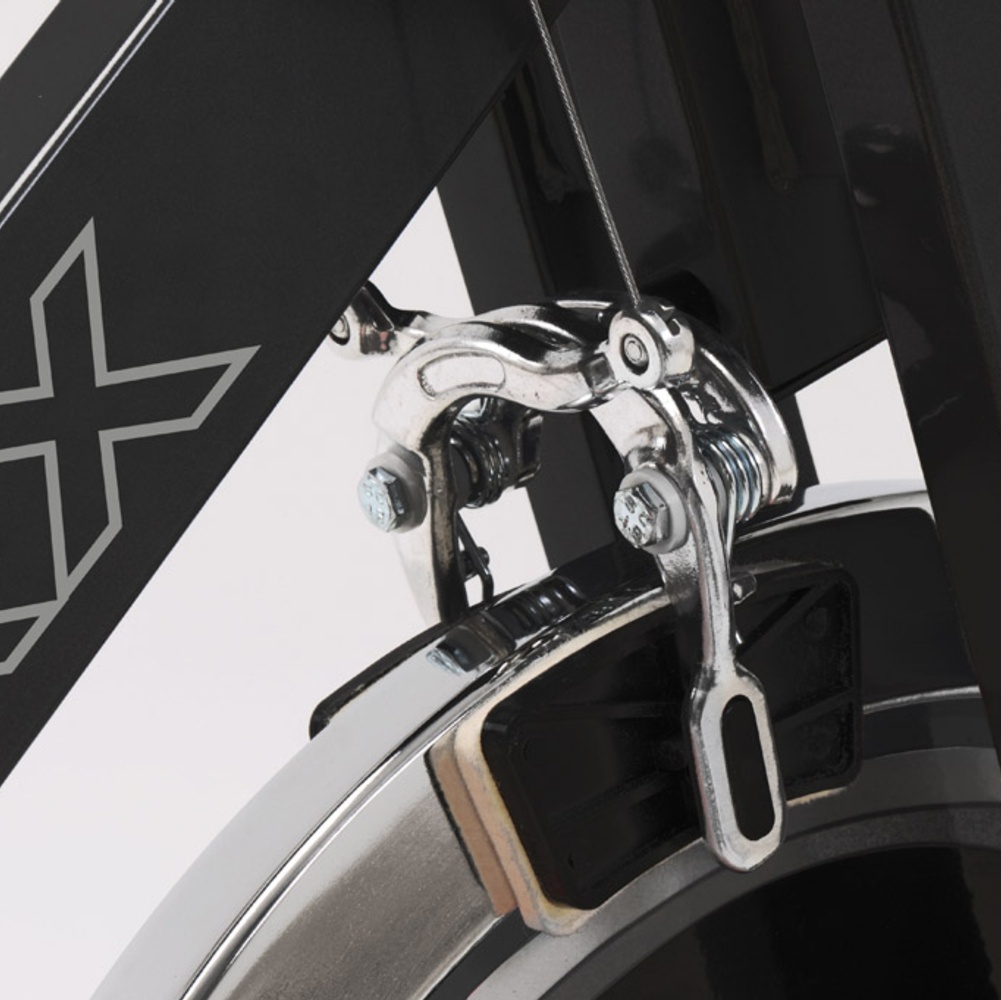

Braking systemlong life felt pad. Brake lever for emergency stop

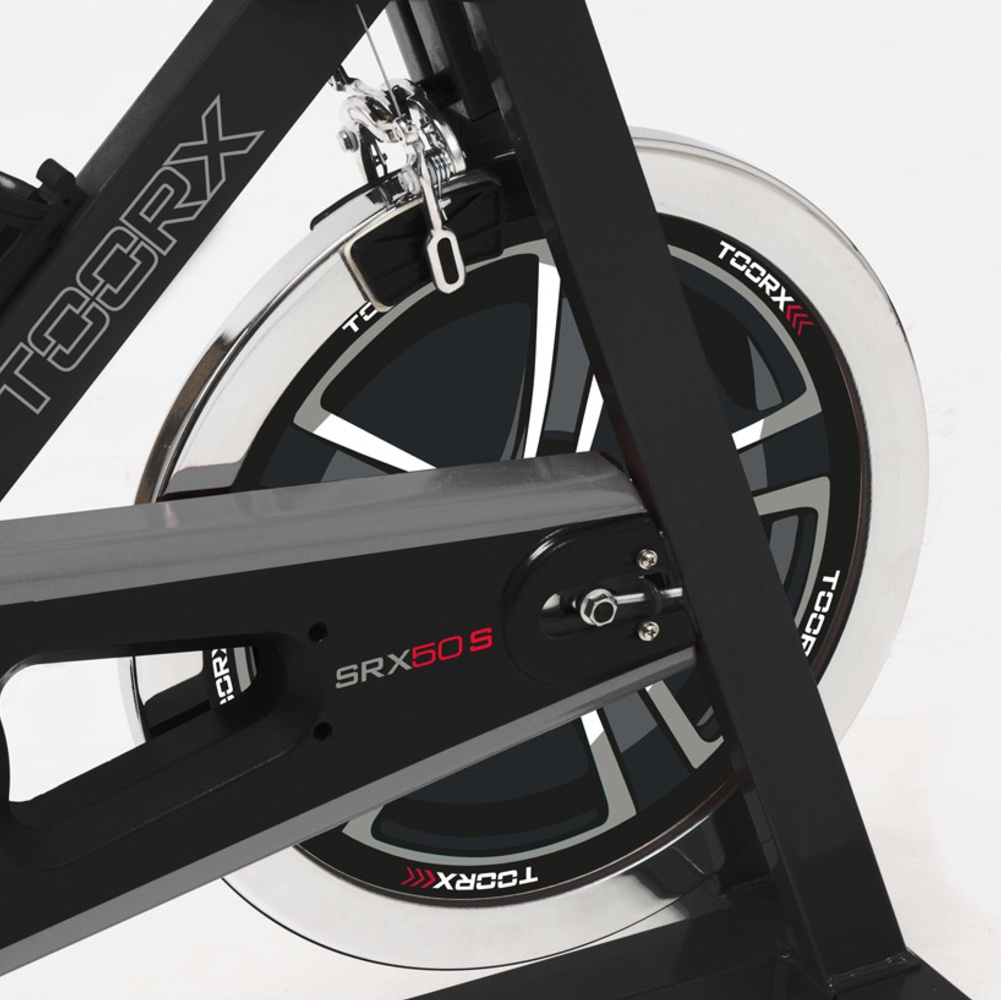

Flywheel system20 kg (balanced)
Max user weight125 Kg

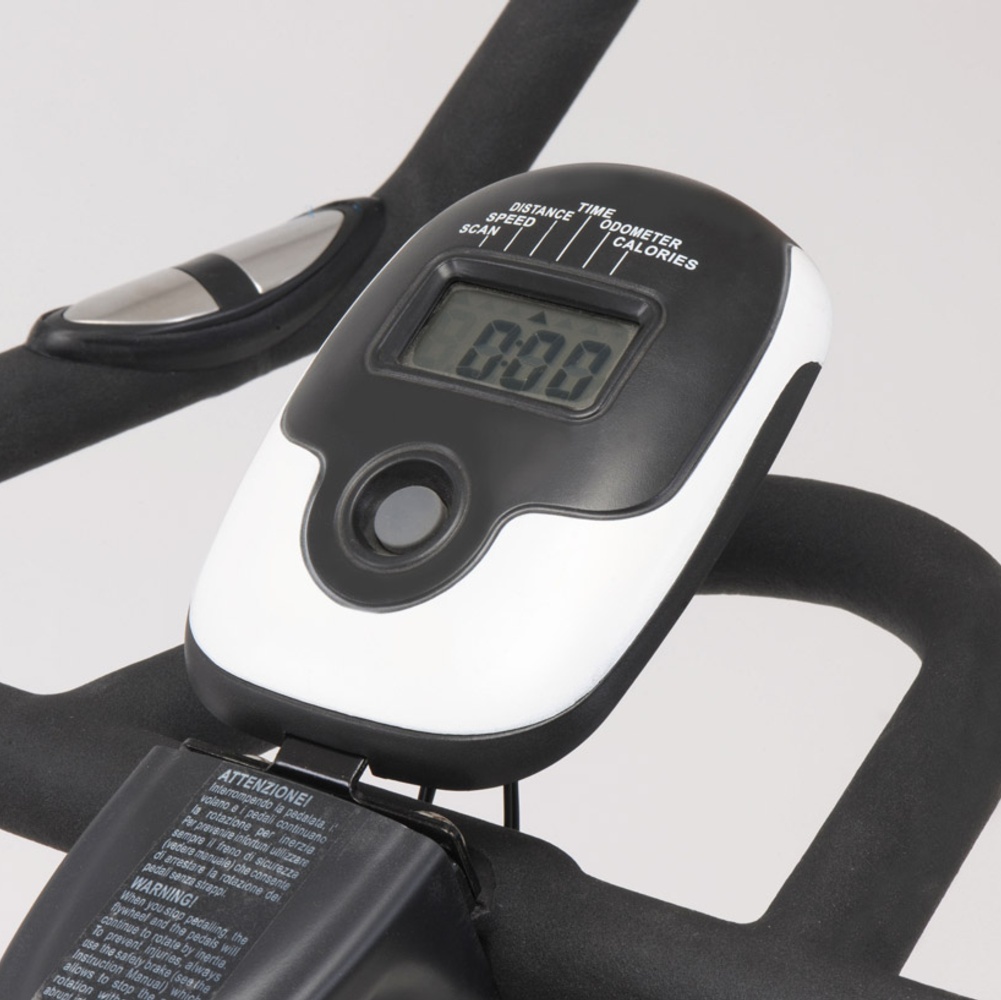

Console with LCDdistance, time, calories, pulse, speed, odometer

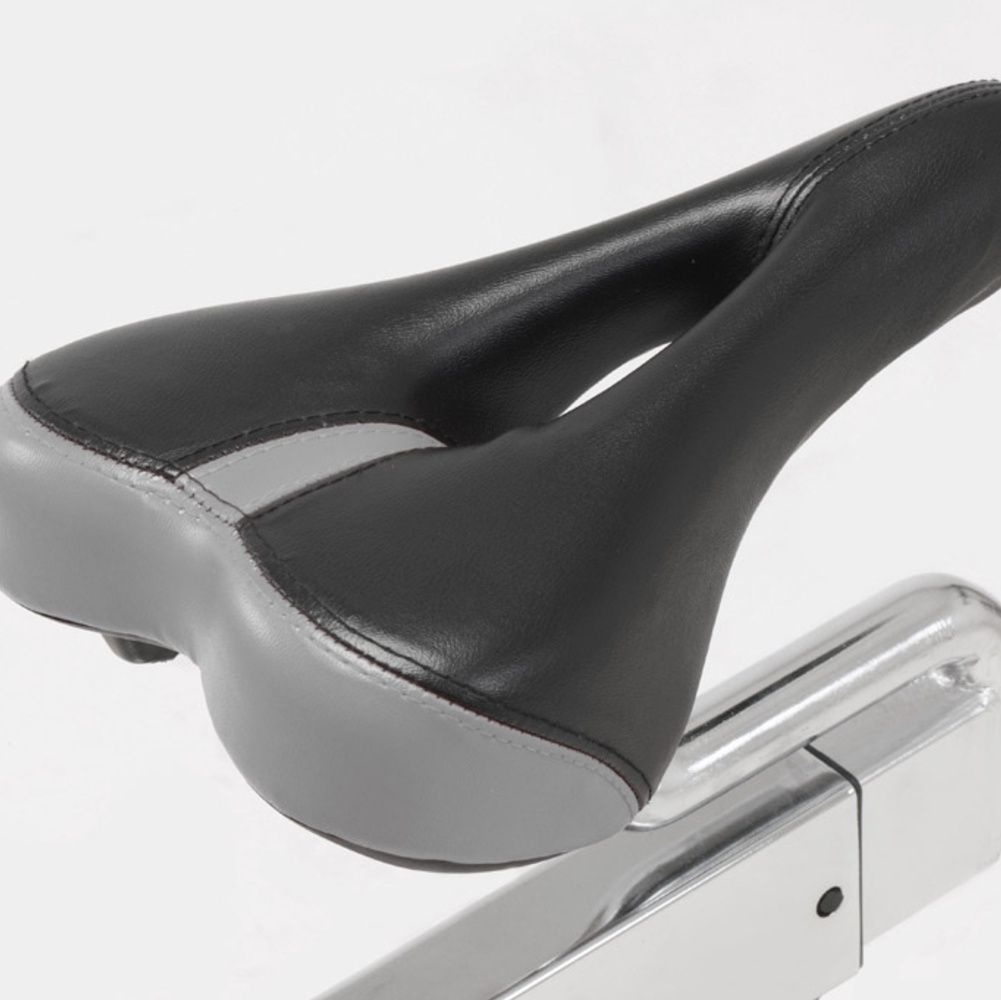

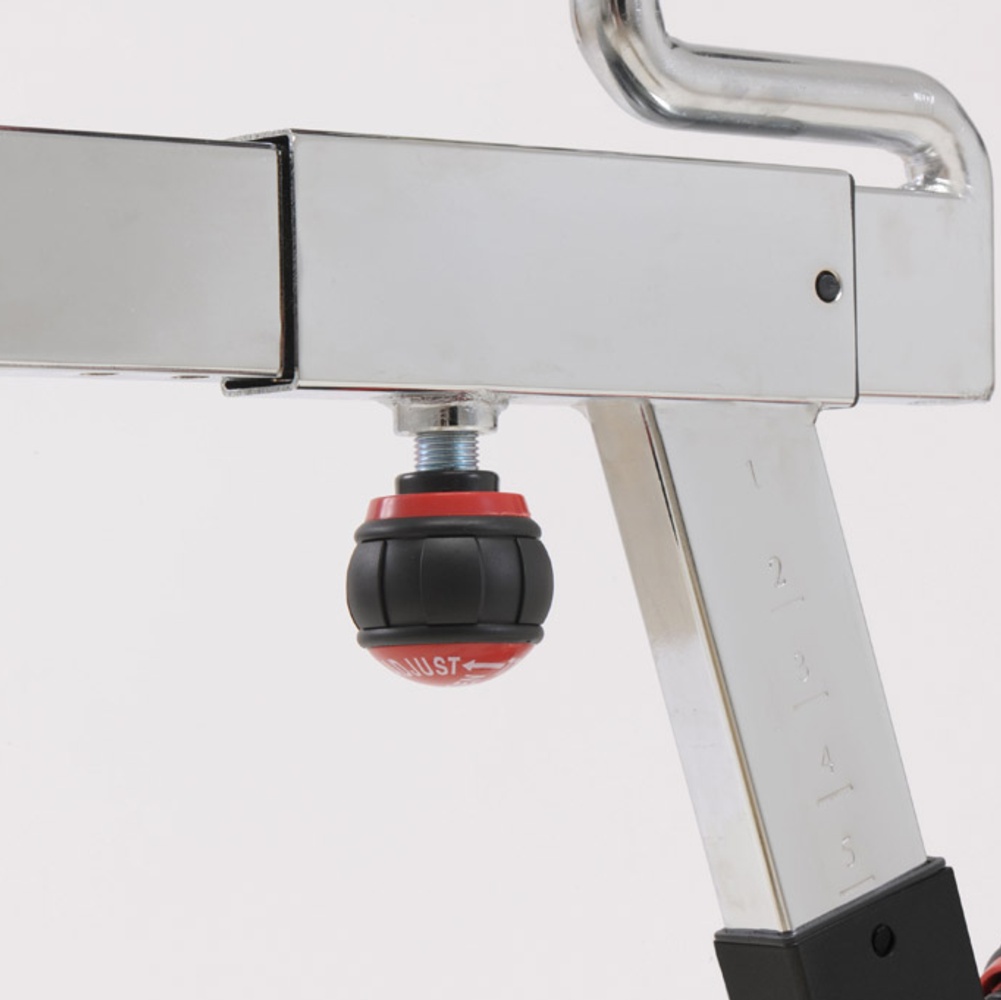

Seat positionbicolour saddle with vertical and horizontal adjustment
Pedal/seat distancemin 79 cm, max 101 cm
Handlebarvertical adjustment
Handlebar height *min 87.5 cm, max 101 cm
Sddle height *min 68 cm, max 89 cm
Fore & Aft Saddle position *min 60 cm, max 73.5 cm
Resistance adjustmentmanual - micrometric

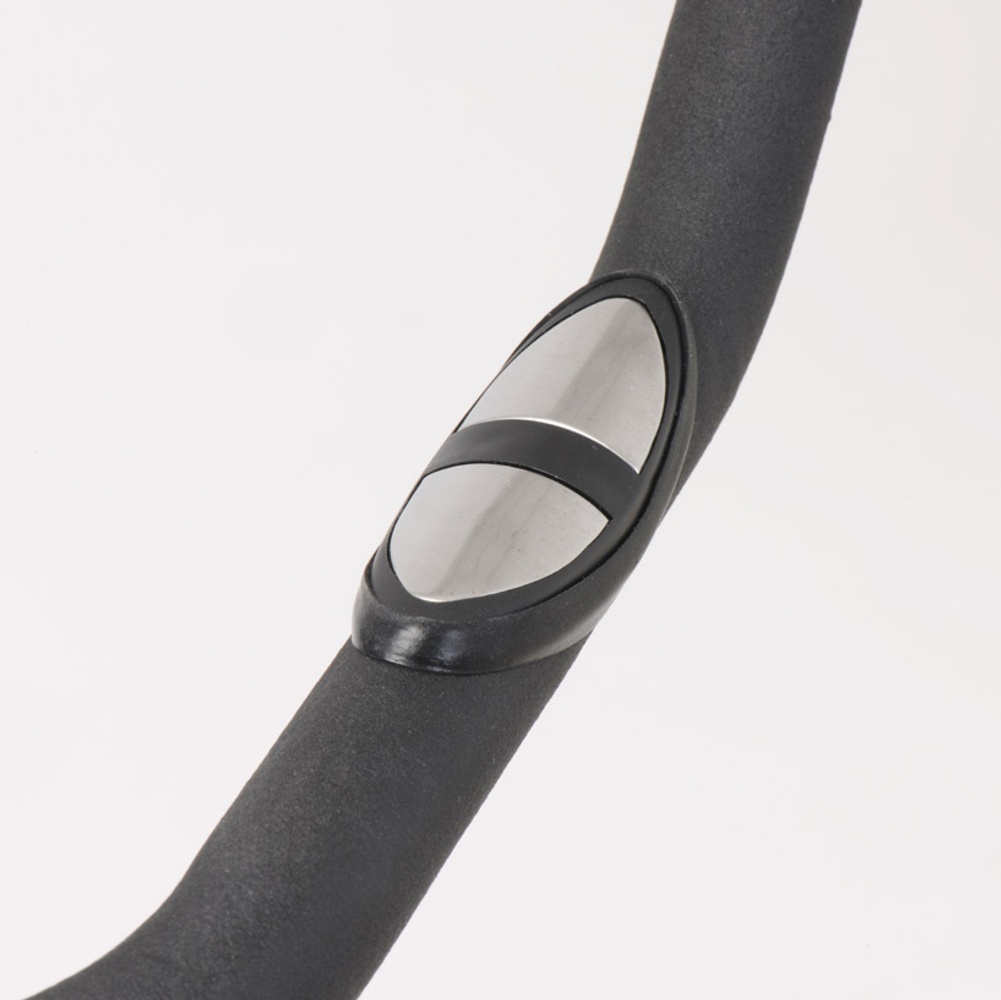

Heart ratehand pulse
Moving wheelsyes
Rubber adjustment feetyes

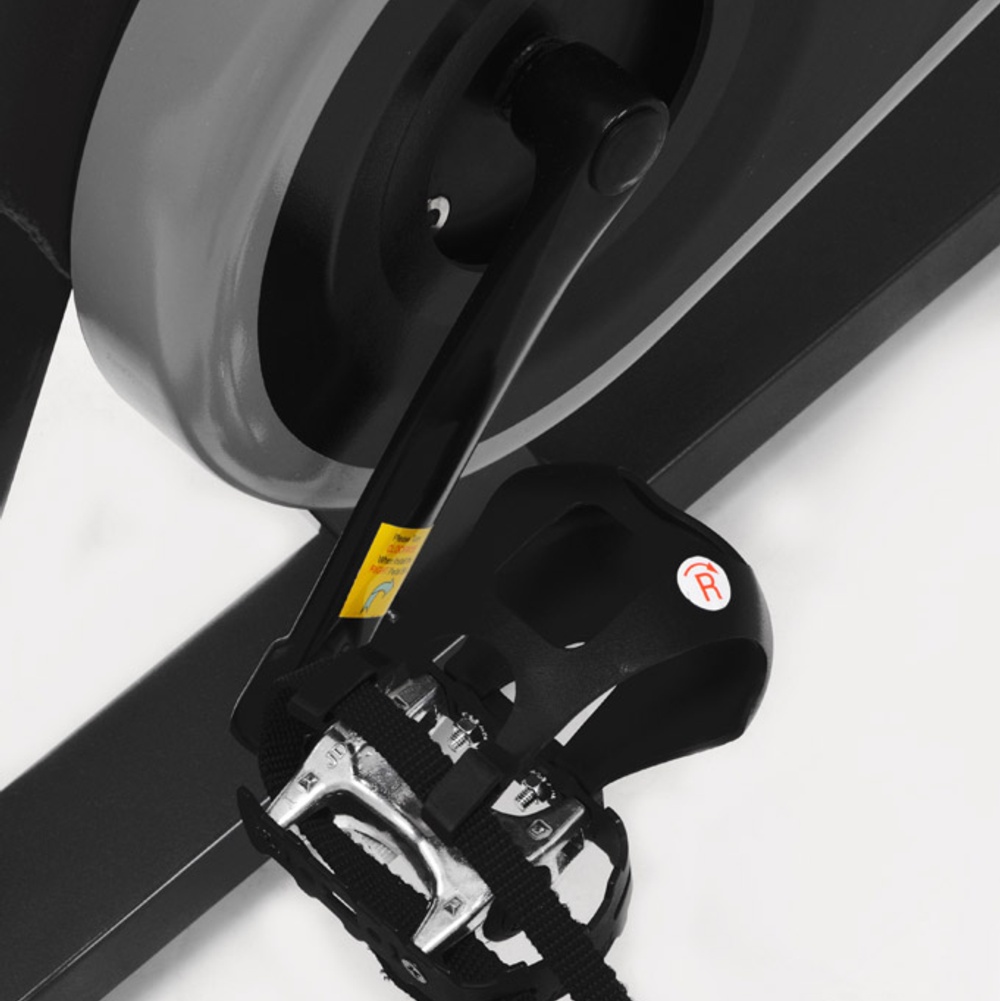

Pedal crank3 pieces
Q FactorTotal: 17,6 cm. - Left: 8,7 cm | Right: 8,9 cm
Framehigh-density steel
Paintingheavy duty powder coating
Weight41 Kg
Set up size1070 x 510 x 1150 mm
Gross weight46 Kg
Packing size1080 x 195 x 840 mm

* Measurements:

Fore & Aft Saddle position > from the seat anchor point to the minimum handlebar position
Handlebar height > from upper edge handlebar to bike support base (upper face)
Saddle height > from saddle anchor point (slide) to bike support base (upper face)
Handlebar position slide > Δ of the minimum and maximum position of the slide.
