SRX-100

Drive train belt - fixed gear. Braking system long life felt pad. Brake button for emergency stop. Flywheel system 26 kg (balanced). Built-in wireless pulse receiver - chest belt included.

Technical data

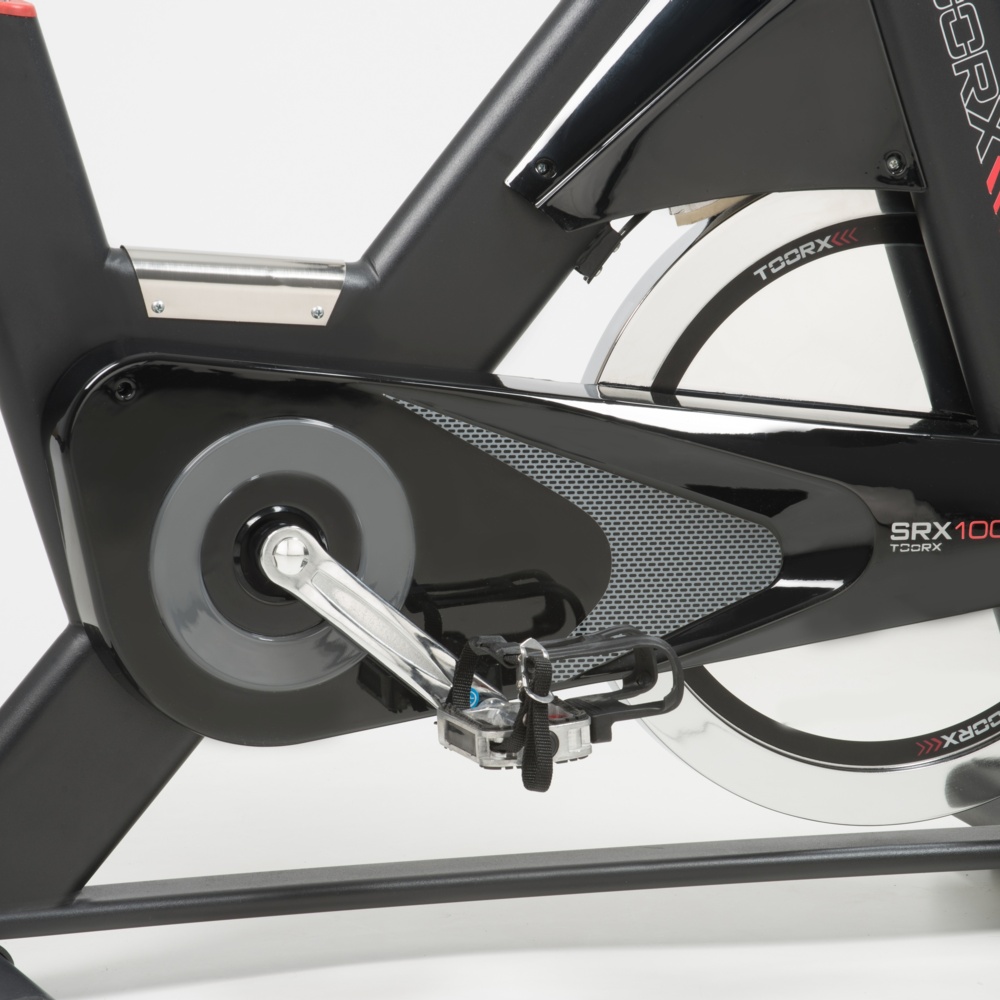

Drive trainbelt - fixed gear

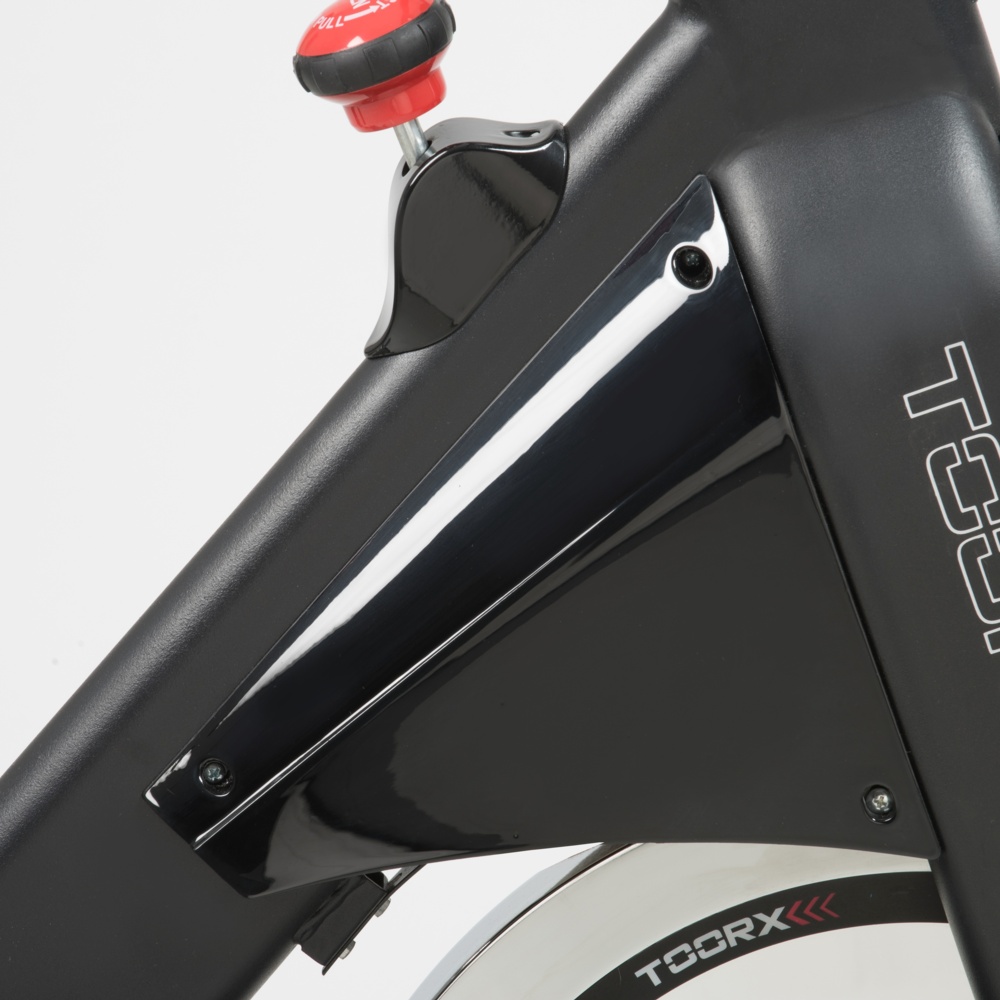

Braking systemlong life felt pad. Brake button for emergency stop
Flywheel system26 kg (balanced)
Max user weight150 Kg
Console with LCDdistance, time, calories, pulse, speed, odometer, scan

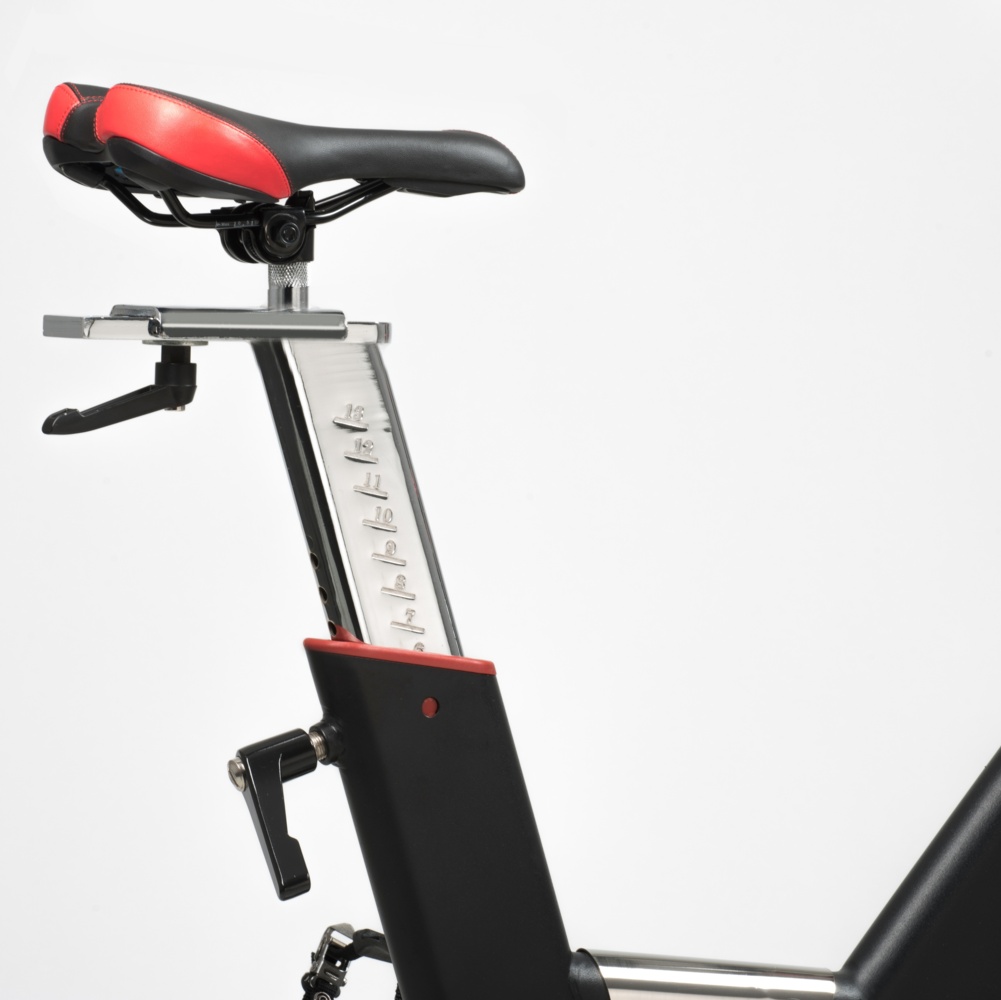

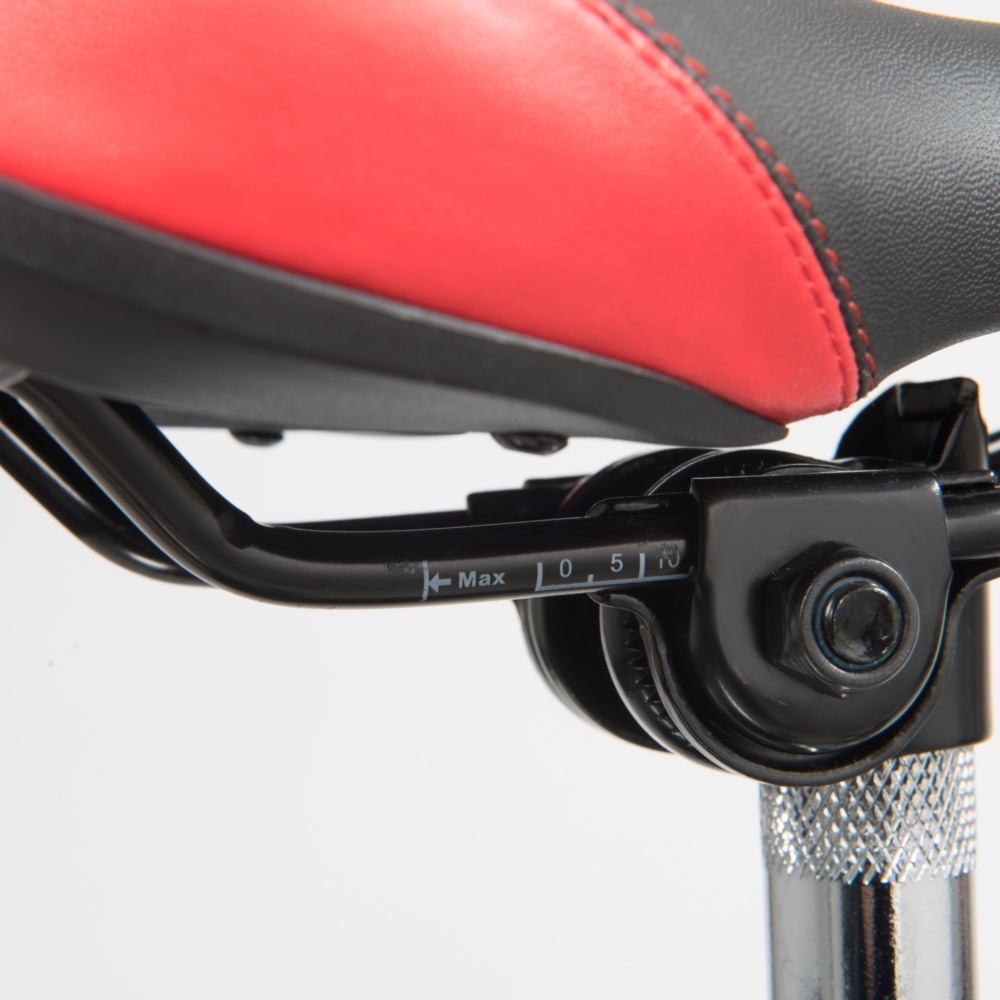

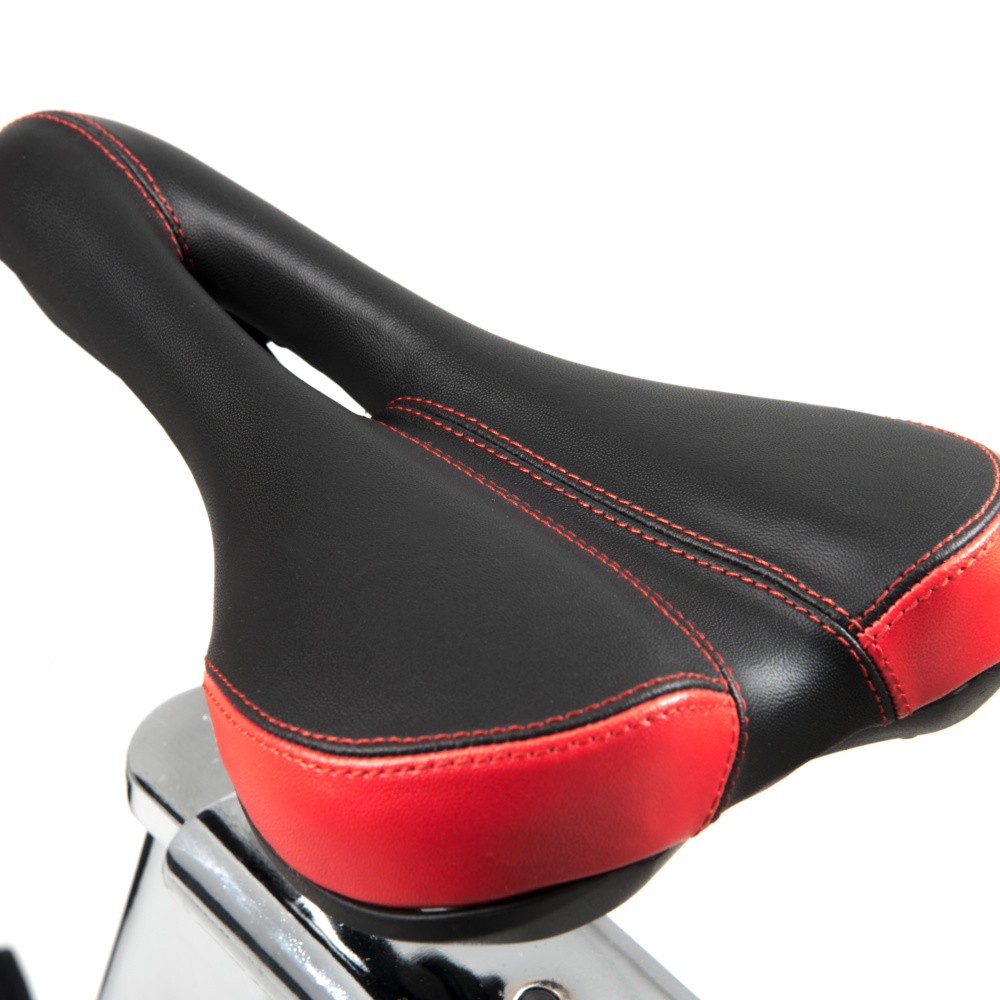

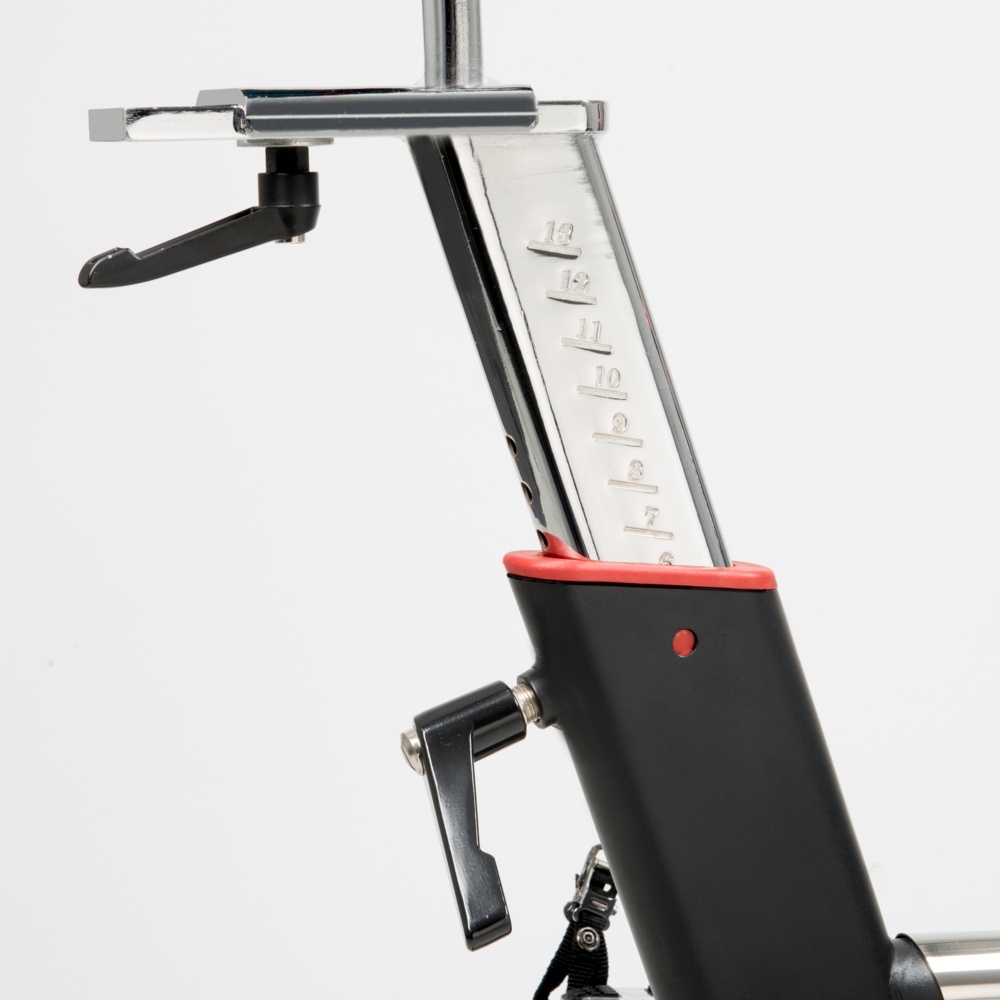

Seat positionbicolour saddle with vertical adjustment and micrometric horizontal adjustment

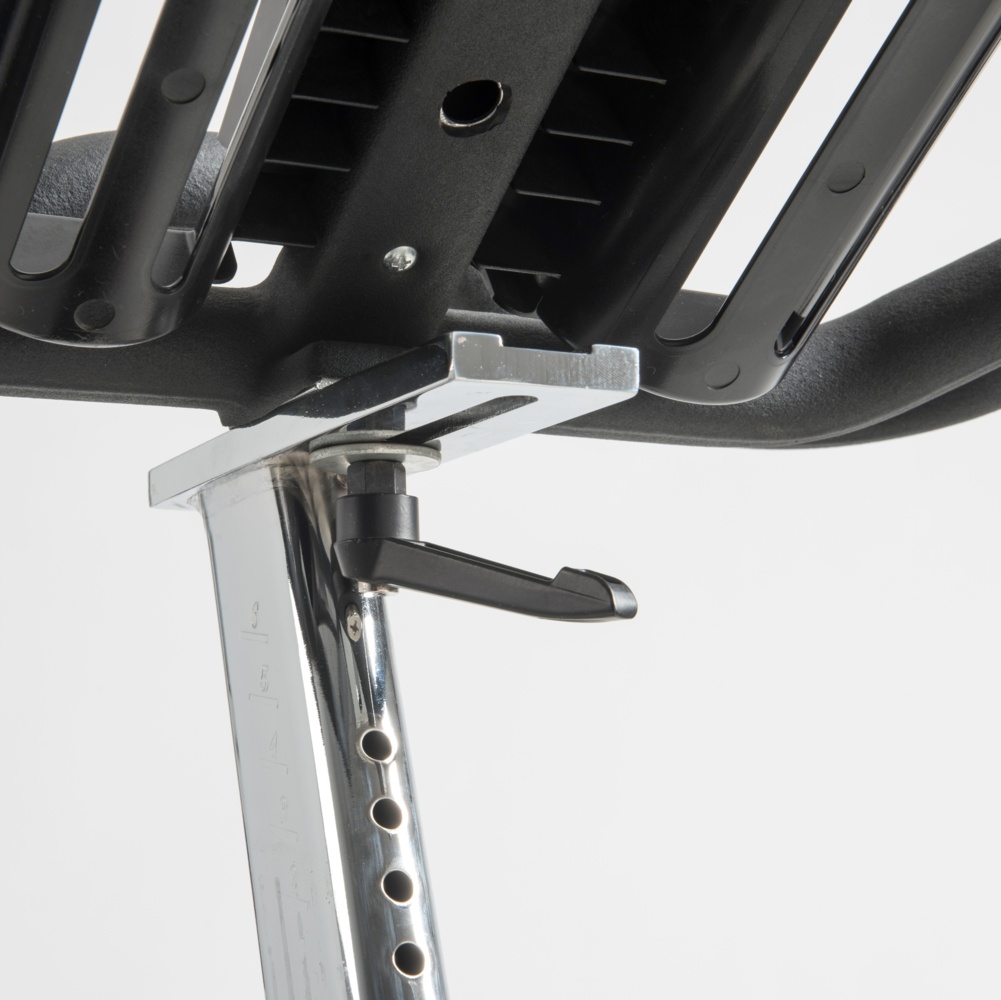

Handlebarvertical adjustment and micrometric horizontal adjustment with double bottle holder
Handlebar height *min 99 cm, max 110 cm
Sddle height *min 70 cm, max 93 cm
Handlebar position slide * +/- 8.5 cm
Fore & Aft Saddle position *min 56 cm, max 64 cm
Resistance adjustmentmanual - micrometric
Heart rateBuilt-in wireless pulse receiver - chest belt included

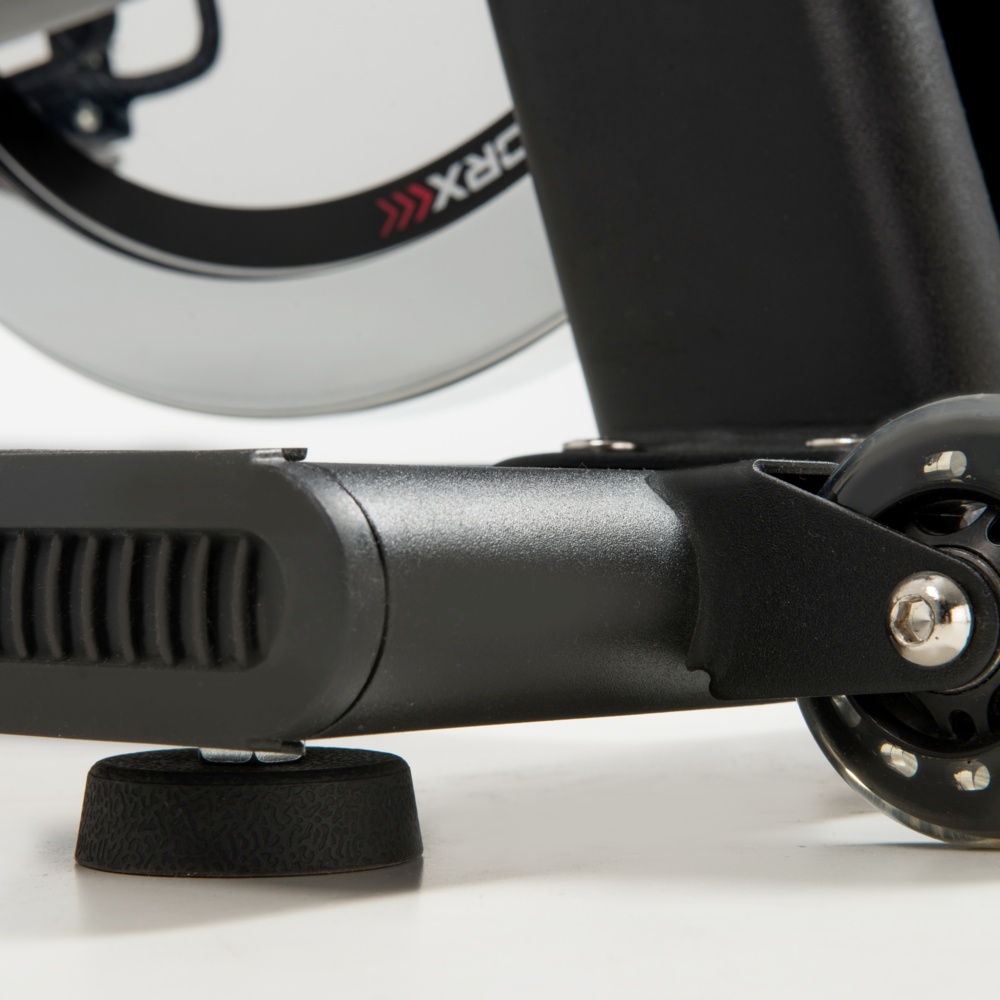

Moving wheelsyes
Rubber adjustment feetyes
Pedal crank3 pieces

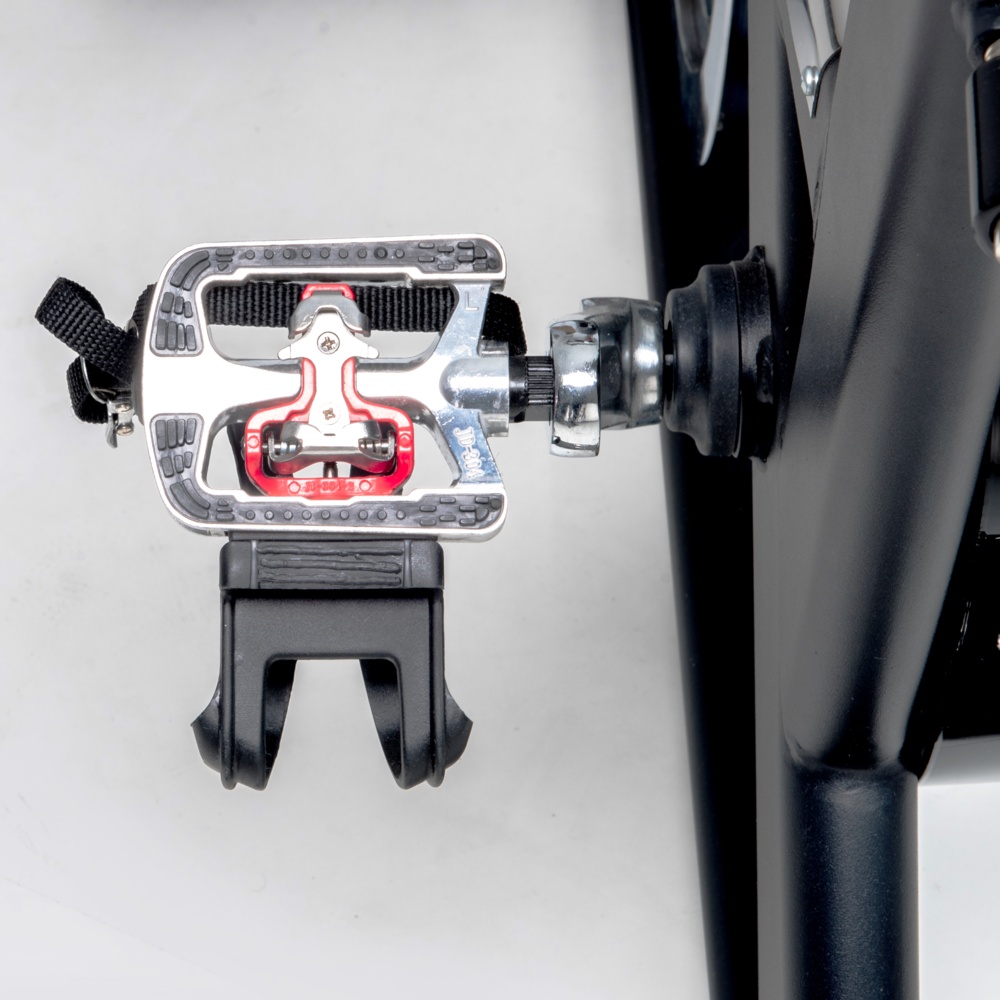

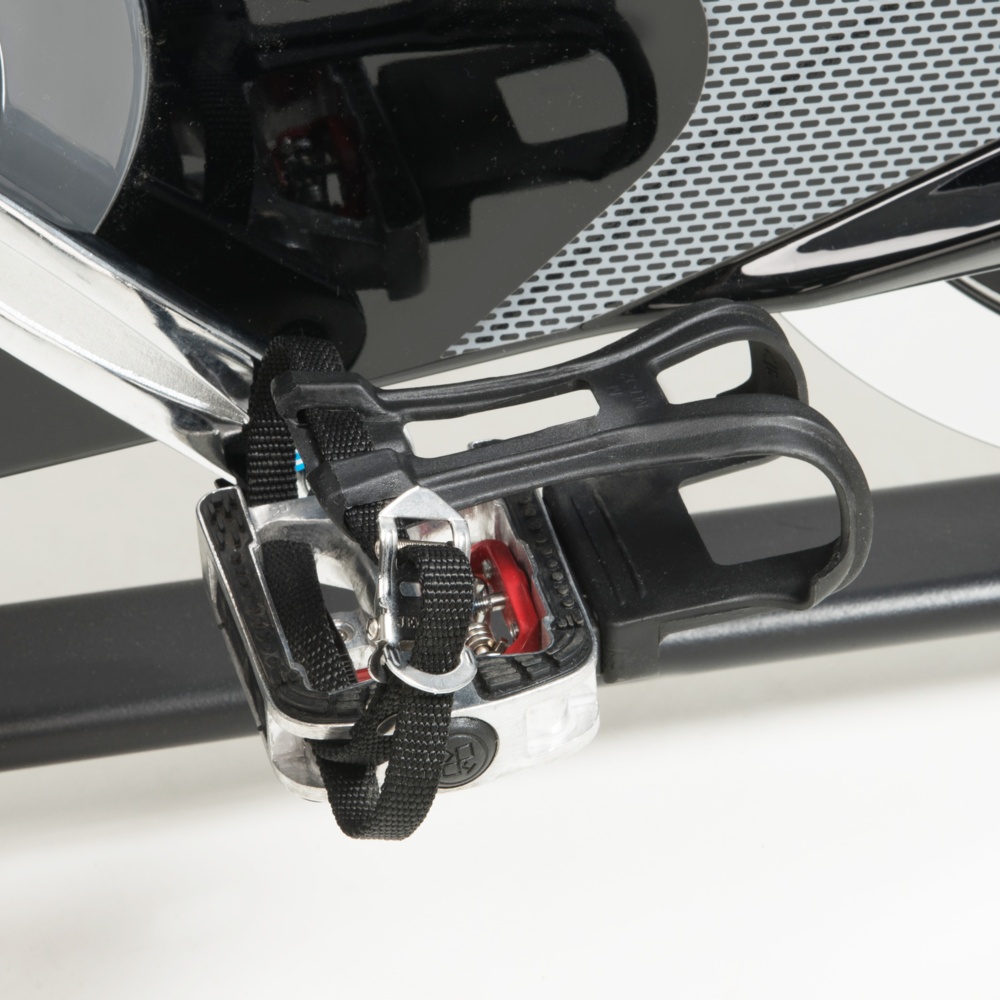

Pedalsquick cleat retention system SPD
Framehigh-density steel
Paintingheavy duty powder coating
Weight65 Kg
Set up size1180 X 530 X 1320 mm
Gross weight70 Kg
Packing size1065 x 230 x 900 mm
CompliancesCE-ROHS-EN957

* Measurements:

Fore & Aft Saddle position > from the seat anchor point to the minimum handlebar position
Handlebar height > from upper edge handlebar to bike support base (upper face)
Saddle height > from saddle anchor point (slide) to bike support base (upper face)
Handlebar position slide > Δ of the minimum and maximum position of the slide.
