SRX-85

Drive train belt - fixed gear. Braking system long life felt pad. Brake button for emergency stop. Flywheel system 24 kg (CNC-balanced). Built-in wireless pulse receiver - chest belt included.

Technical data

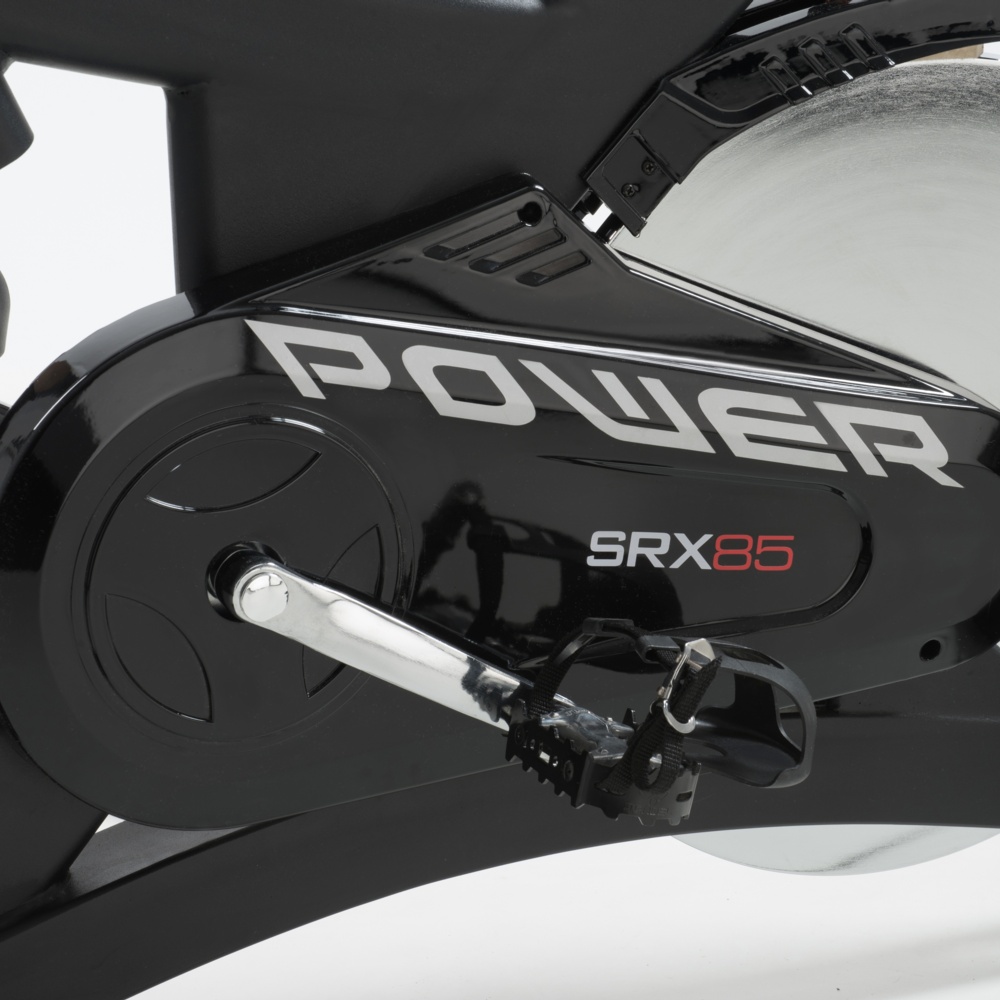

Drive trainbelt - fixed gear
Braking systemlong life felt pad. Brake button for emergency stop
Flywheel system24 kg (CNC-balanced)
Max user weight130 Kg

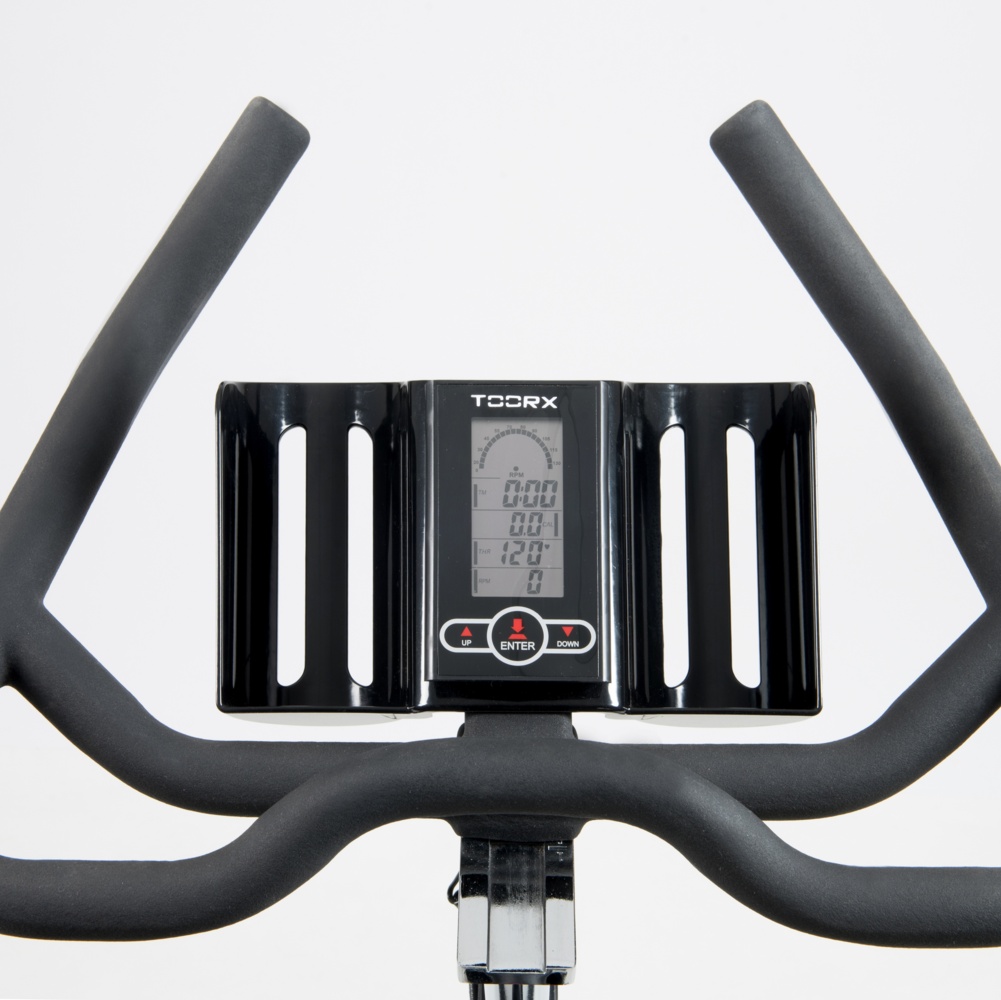

Console with LCDdistance, time, calories, pulse, speed, RPM

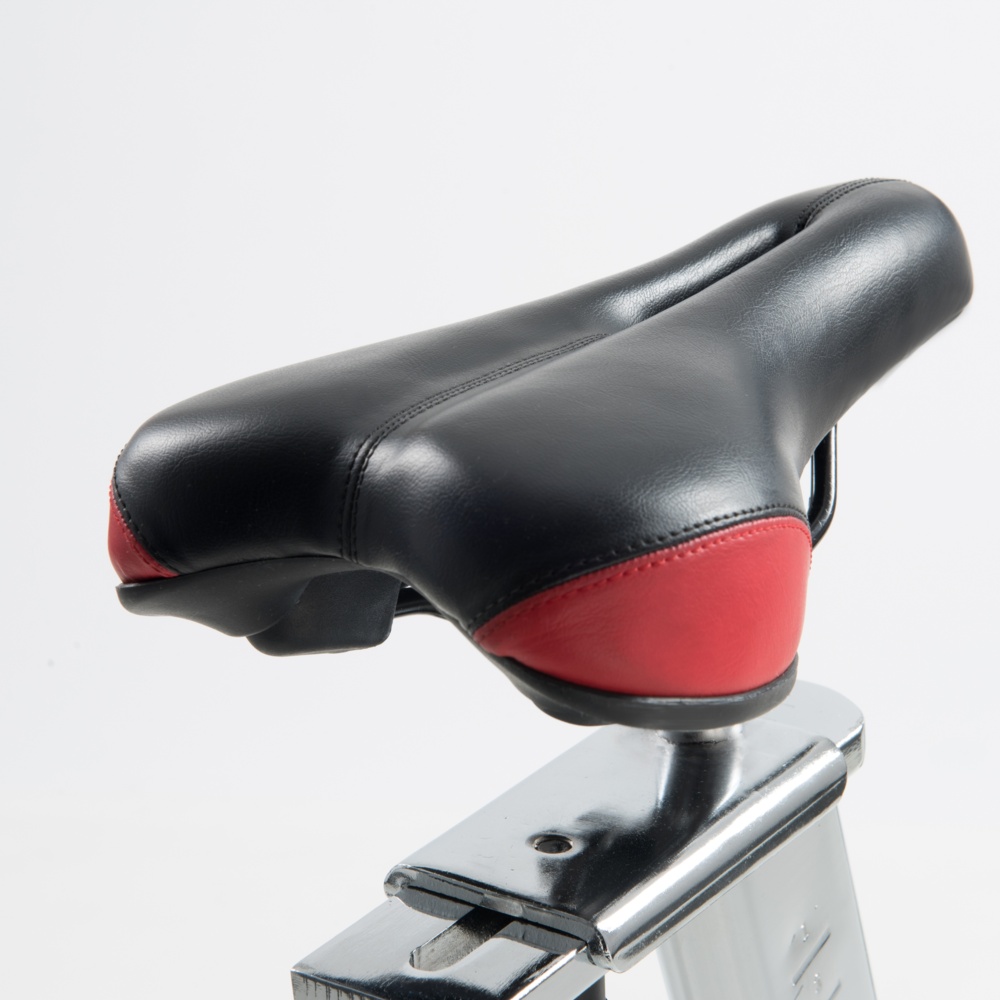

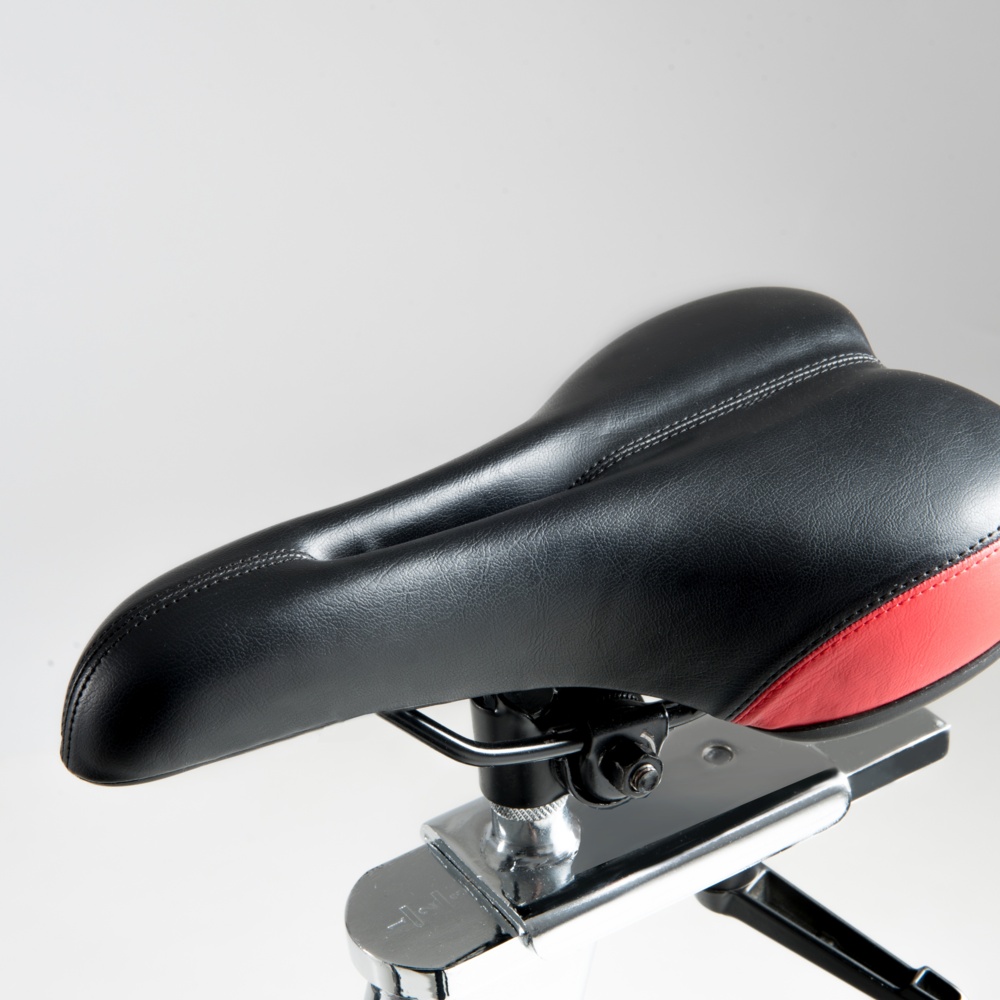

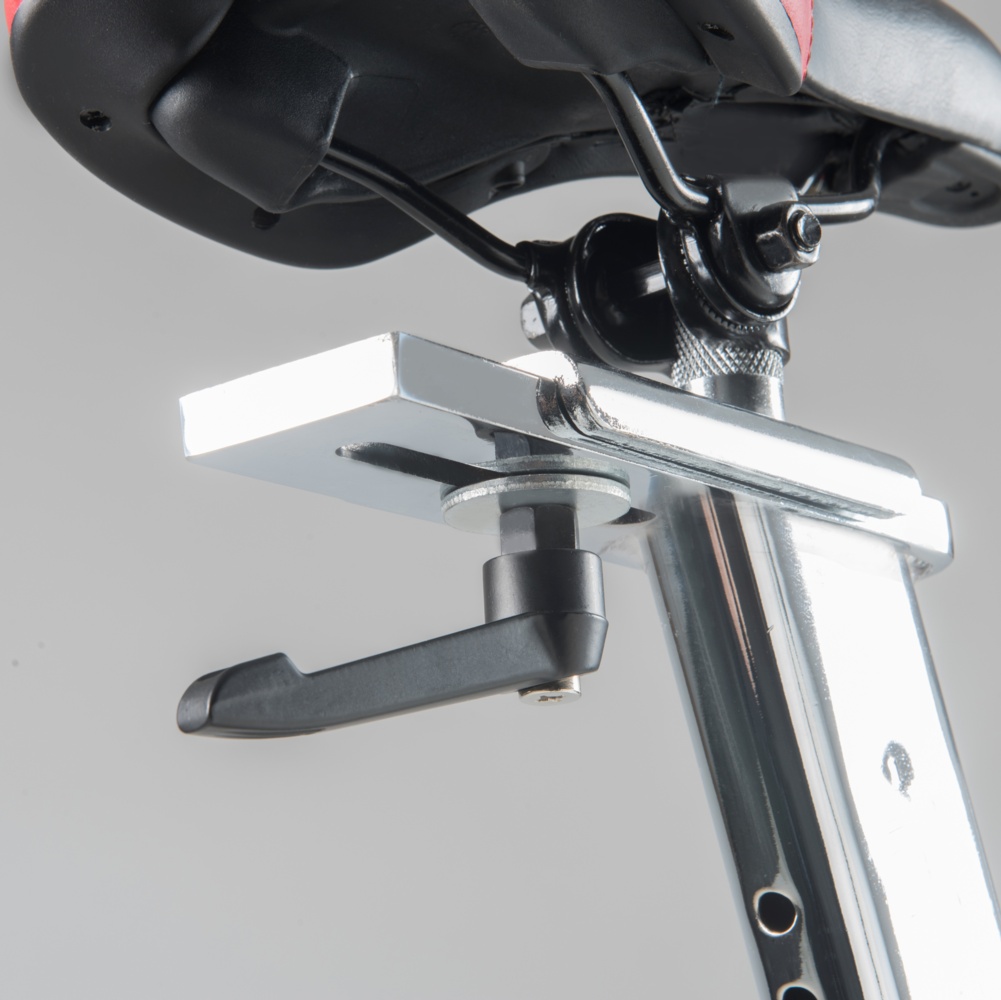

Seat positionbicolour saddle with vertical adjustment and micrometric horizontal adjustment

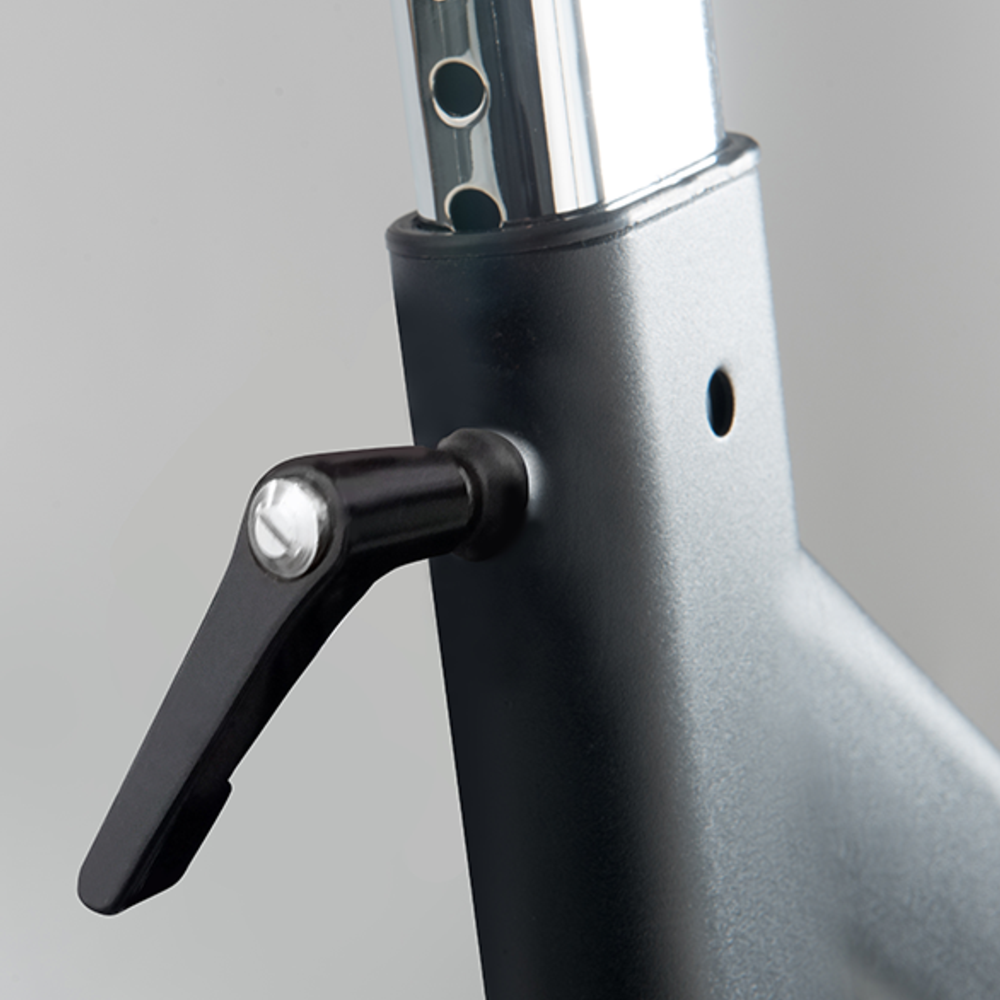

Handlebarvertical adjustment and micrometric horizontal adjustment with double bottle holder
Handlebar height *min 92 cm, max 104 cm
Sddle height *min 67.5 cm, max 84 cm
Handlebar position slide * +/- 8.5 cm
Fore & Aft Saddle position *min 55 cm, max 65 cm

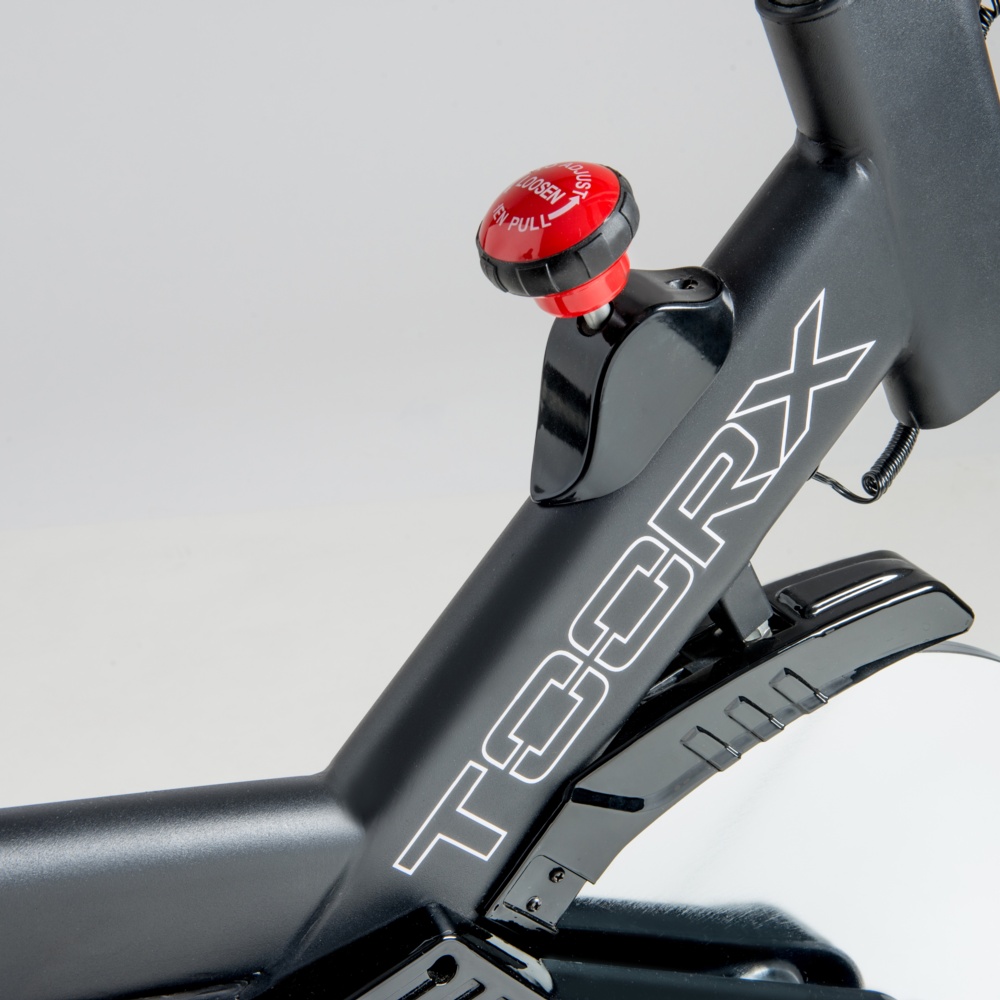

Resistance adjustmentmanual - micrometric
Heart rateBuilt-in wireless pulse receiver - chest belt included

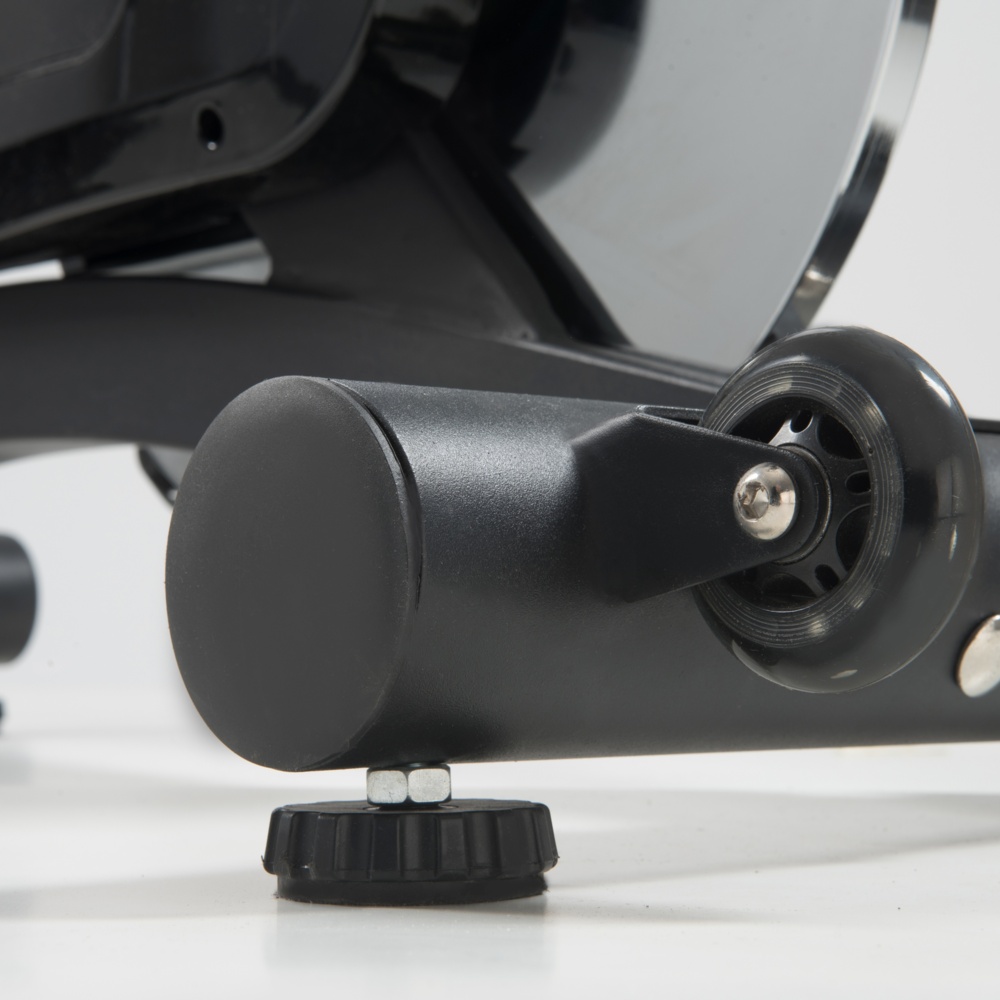

Moving wheelsyes
Rubber adjustment feetyes

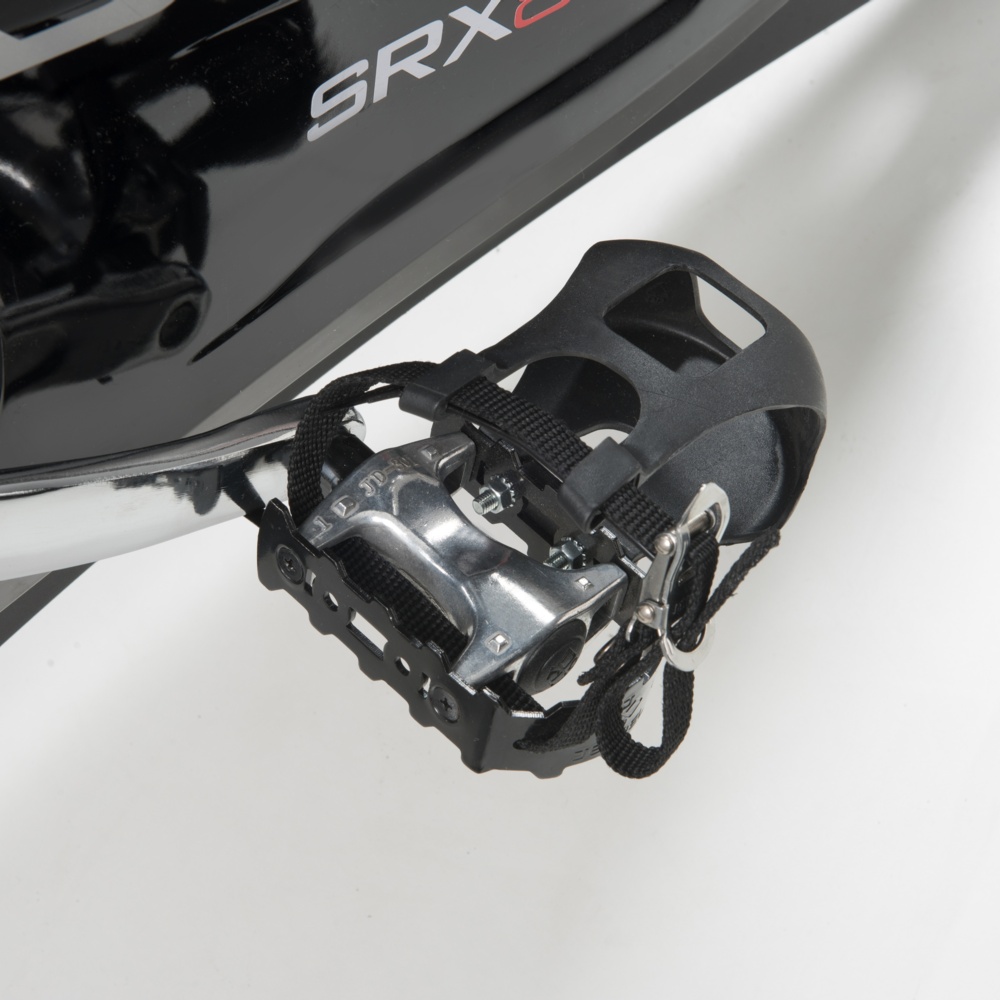

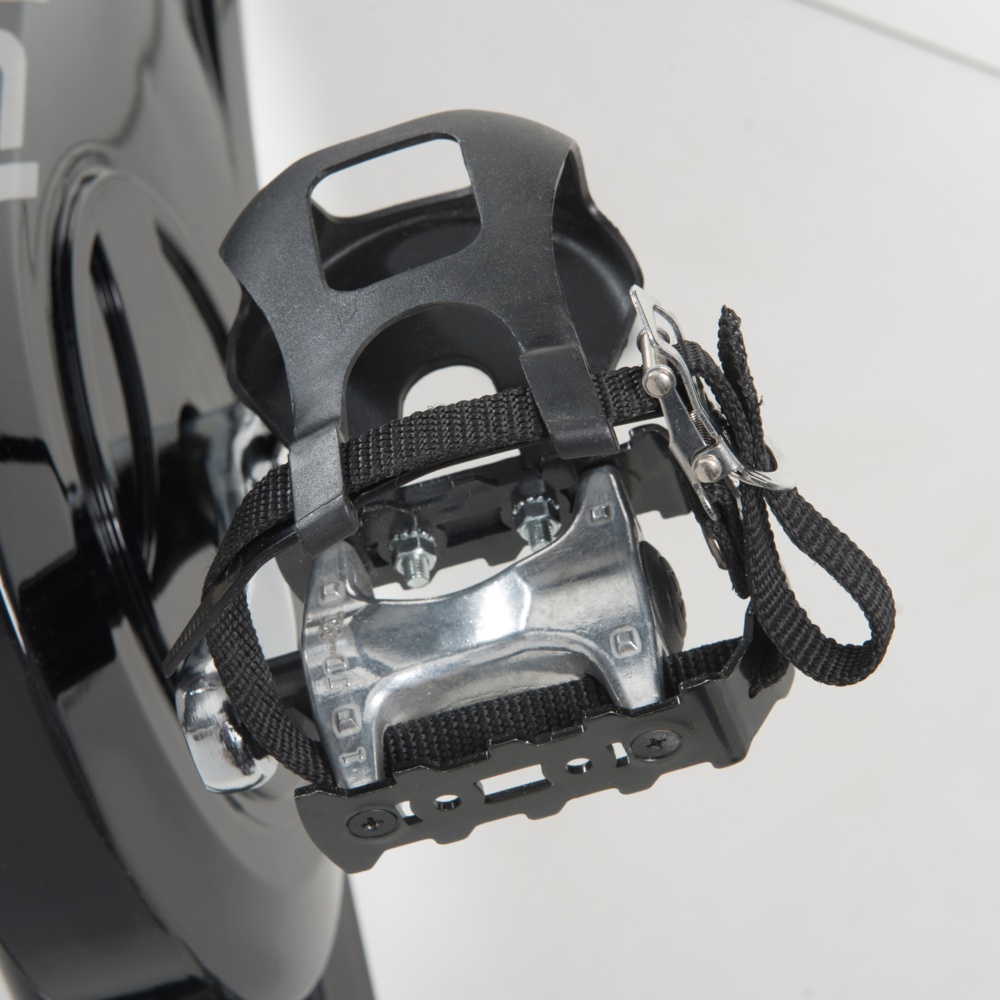

Pedal crank3 pieces
Framehigh-density steel
Paintingheavy duty powder coating
Weight52 Kg
Set up size1340 x 580 x 1230 mm
Gross weight55 Kg
Packing size1150 x 260 x 950 mm
CompliancesCE-ROHS-EN957

* Measurements:

Fore & Aft Saddle position > from the seat anchor point to the minimum handlebar position
Handlebar height > from upper edge handlebar to bike support base (upper face)
Saddle height > from saddle anchor point (slide) to bike support base (upper face)
Handlebar position slide > Δ of the minimum and maximum position of the slide.
