Gallery

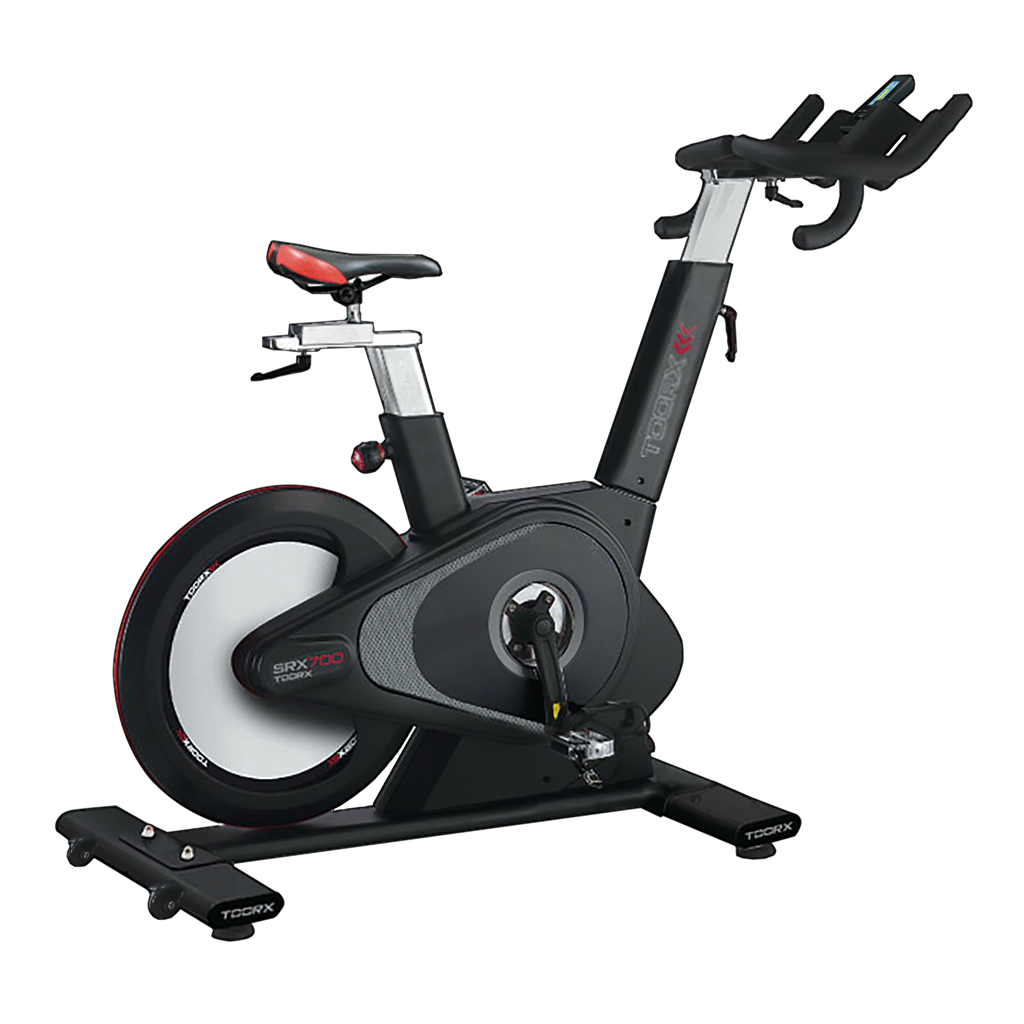

SRX-700

Drive train belt - one way bearing. Braking system magnetic with motorized resistance adjuster. Flywheel system 24 kg (balanced. HRC-HEART RATE CONTROL. Built-in wireless pulse receiver - chest belt included. APP READY. iConsole+App INCLUDED. Kinomap Fitness App COMPATIBLE


  • iconsole
  • kinomap

Technical data

Drive trainbelt - one way bearing
Braking systemmagnetic with motorized resistance adjuster
Flywheel system24 kg (balanced)
Max user weight150 Kg

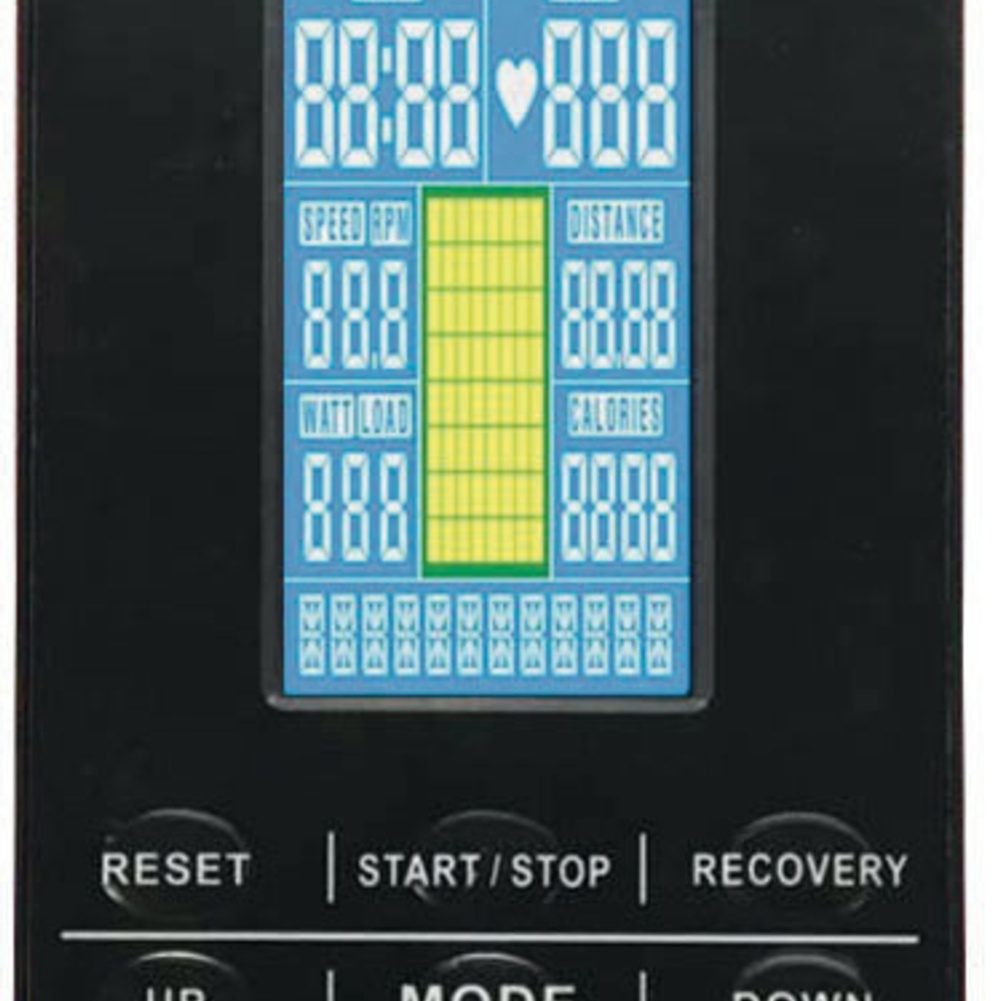

Consolemulticolor backlight LCD display - smartphone/tablet holder included
Functionstime, speed, pulse, distance, calories, odometer, RPM, 12 programs, 4 HRC, watt
App Ready

Built-in Bluetooth intelligent system which enables your bike to fully interact with the most motivating Apps specifically suitable for bike training. Includes iConsole+ App with maps and routes worldwide, fitness plan and workout record. Compatible with Kinomap fitness App (subscription not included)

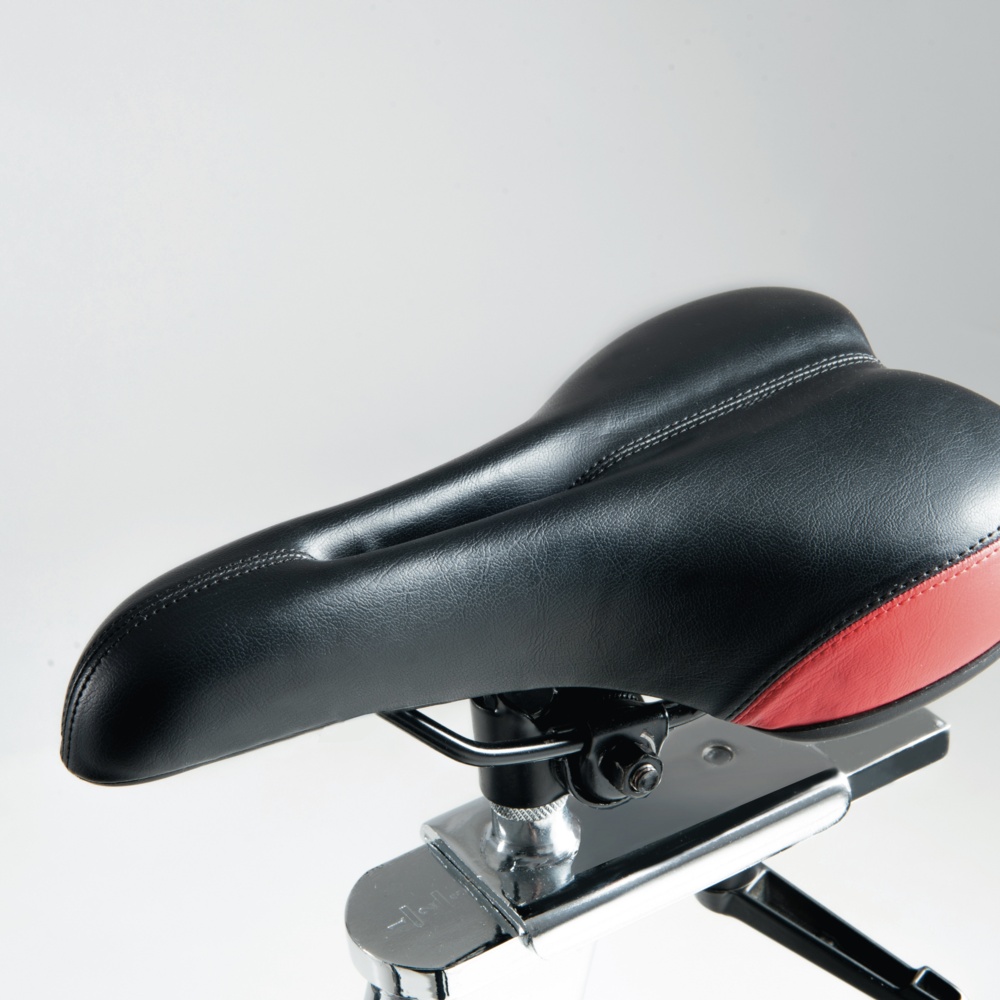

Seat positionracing saddle with vertical adjustment and micrometric horizontal adjustment
Handlebarmicrometric vertical and horizontal adjustment
Handlebar height *min 102.5 cm, max 120 cm
Sddle height *min 73 cm, max 101 cm
Handlebar position slide * +/- 10 cm
Fore & Aft Saddle position *min 71 cm, max 79.5 cm
Resistance adjustmentmotorized with 32-level tension control
Heart rateBuilt-in wireless pulse receiver - chest belt included
Moving wheelsyes
Rubber adjustment feetyes
Pedal crank3 pieces

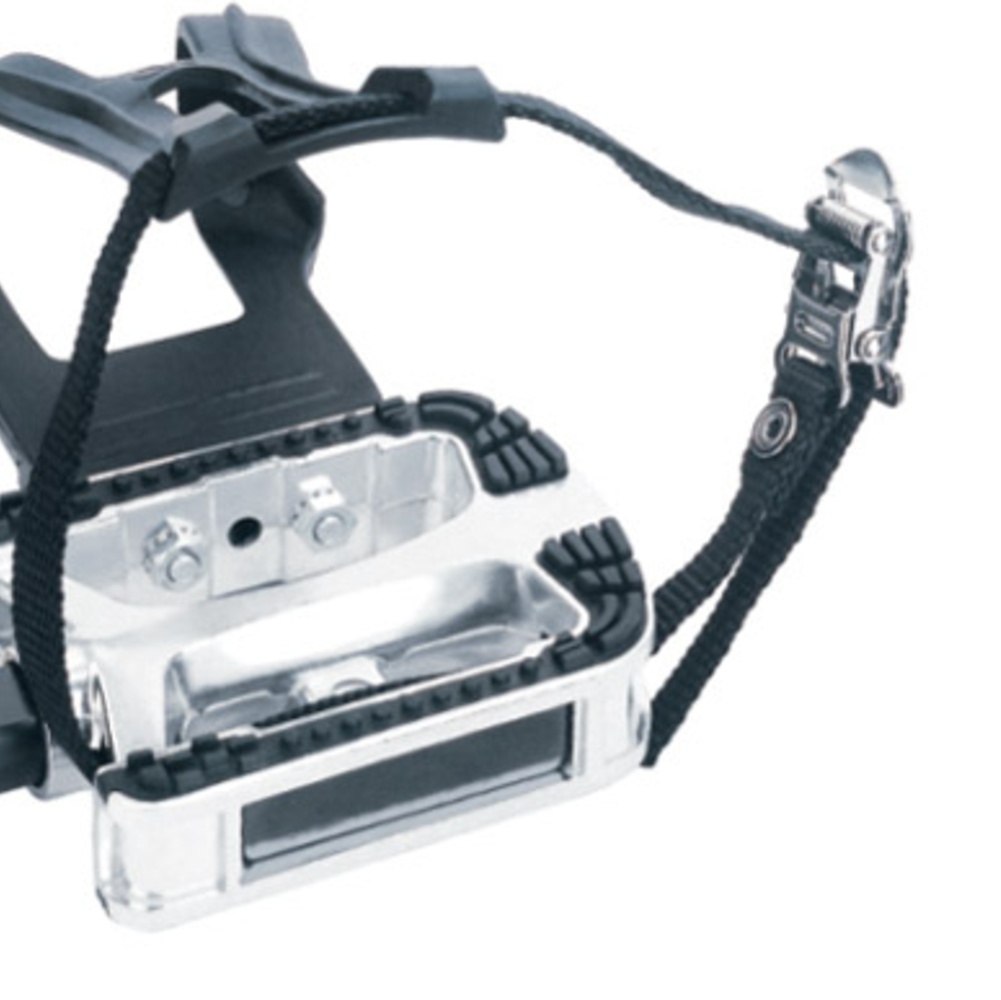

Pedalsquick cleat retention system SPD
Framehigh-density steel
Paintingheavy duty powder coating
Weight66 Kg
Set up size1475 x 620 x 1225 mm
Gross weight72 Kg
Packing size1200 x 250 x 1000 mm
CompliancesCE-ROHS-EN957

* Measurements:

Fore & Aft Saddle position > from the seat anchor point to the minimum handlebar position
Handlebar height > from upper edge handlebar to bike support base (upper face)
Saddle height > from saddle anchor point (slide) to bike support base (upper face)
Handlebar position slide > Δ of the minimum and maximum position of the slide.

PDF Instruction Manual

Download the instruction manual in .PDF

Other languages:

PDF Technical Data Sheet

Download the technical data sheet in .PDF
