SRX-65

Drive train belt - fixed gear. Braking system long life felt brake shoes. Brake lever for emergency stop. Flywheel system 22 kg (balanced). Built-in wireless pulse receiver.

Technical data

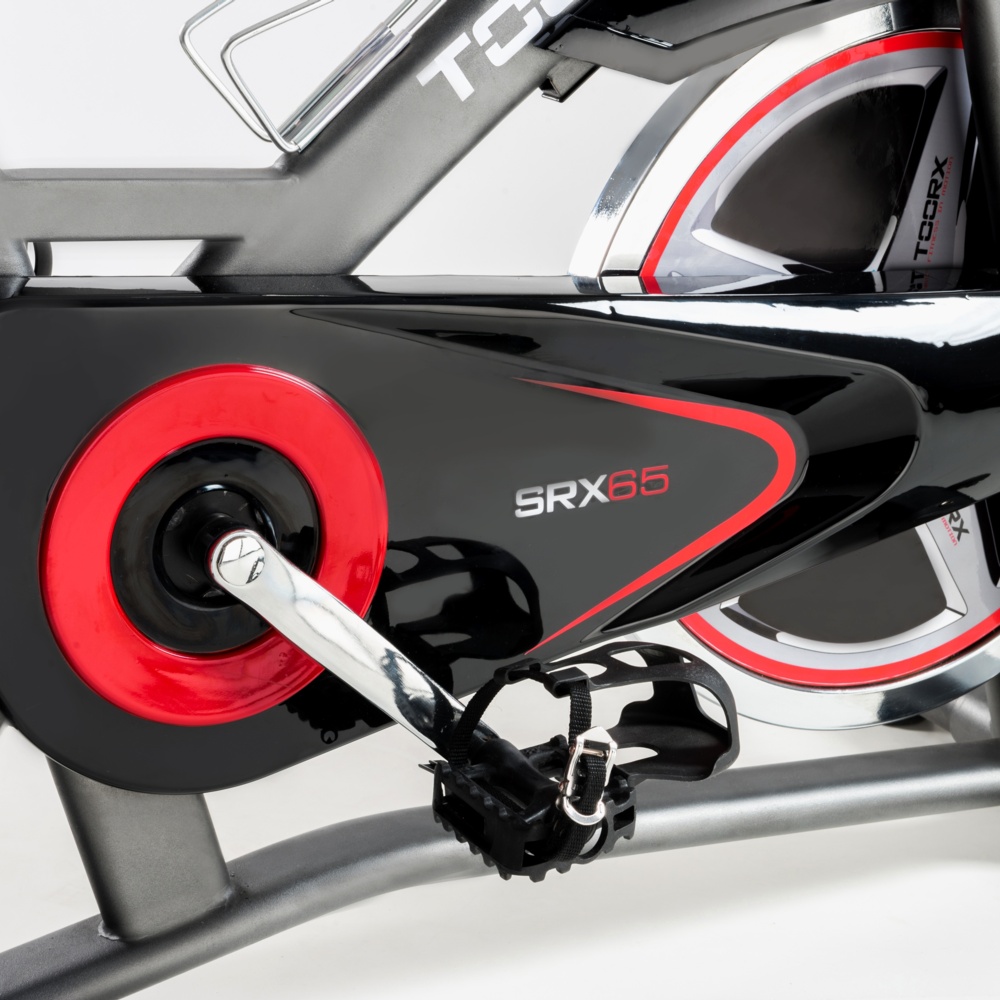

Drive trainbelt - fixed gear

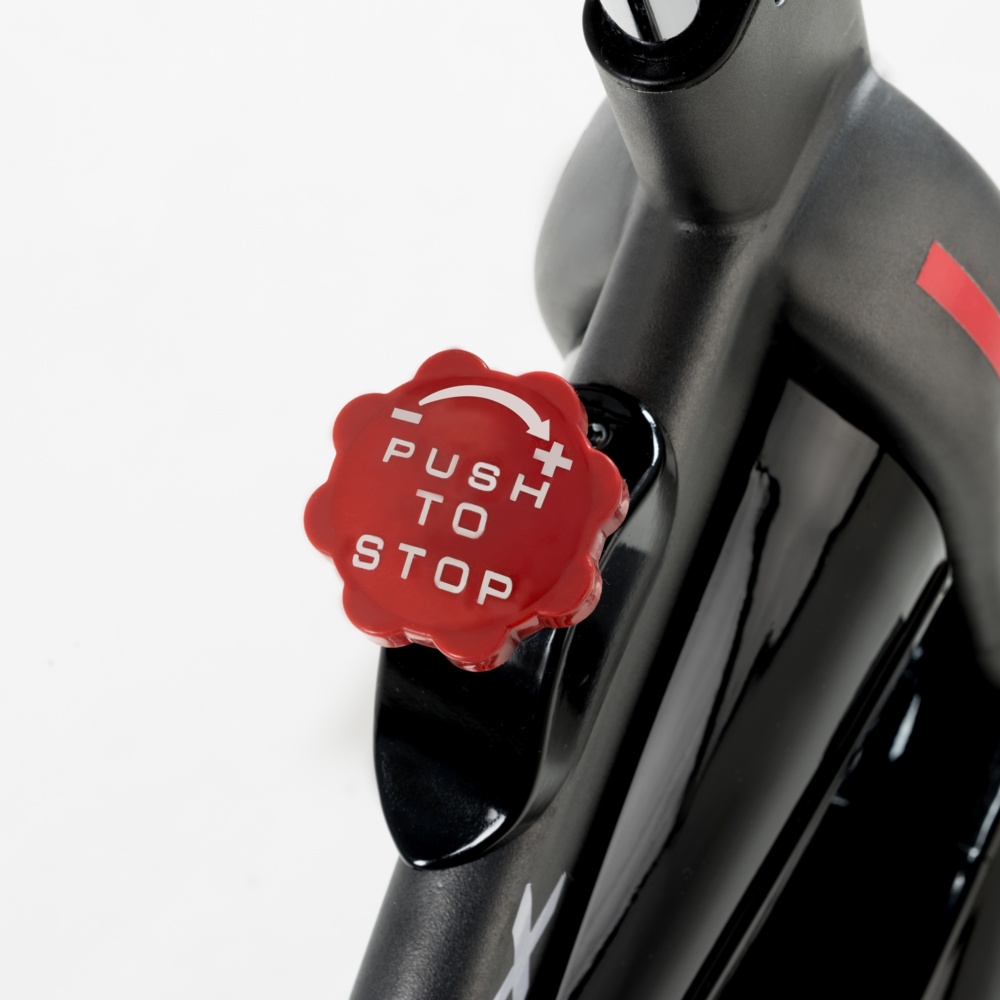

Braking systemlong life felt brake shoes. Brake lever for emergency stop
Flywheel system22 kg (balanced)
Max user weight125 Kg

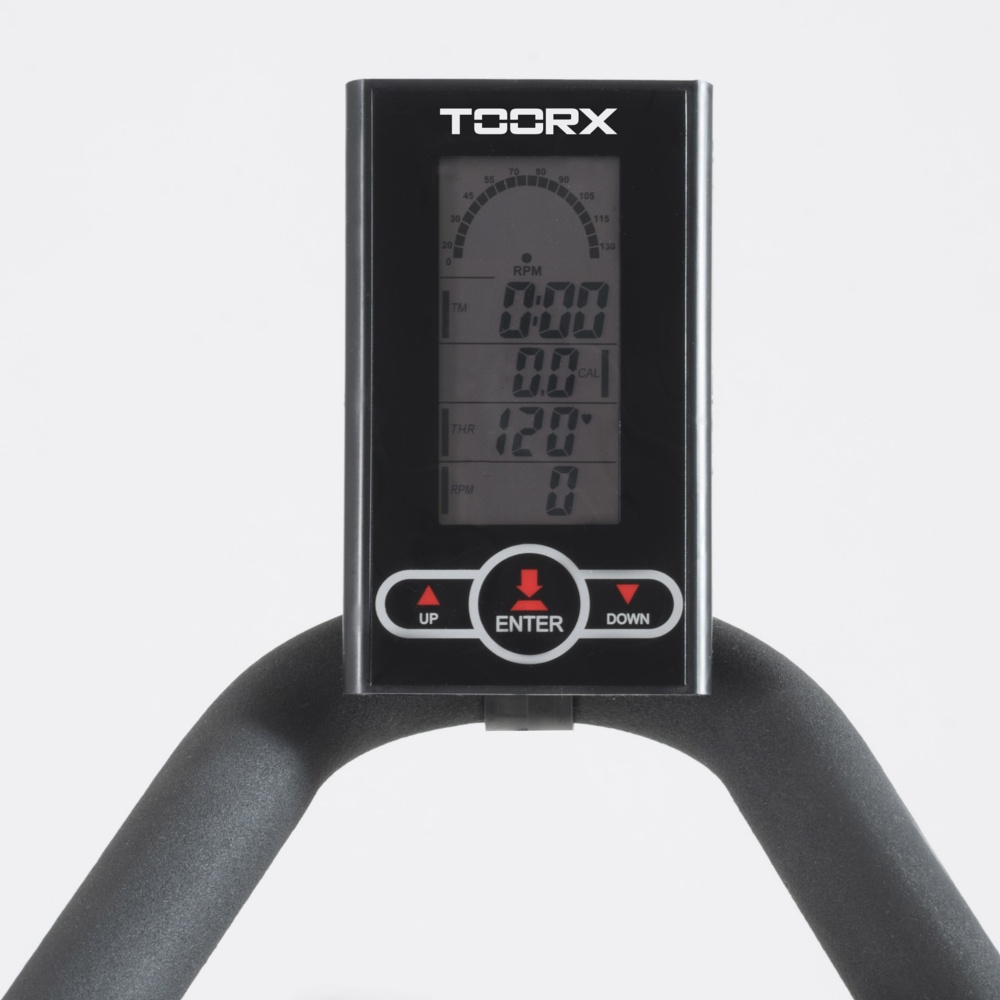

Console with LCDdistance, time, calories, pulse, speed, RPM

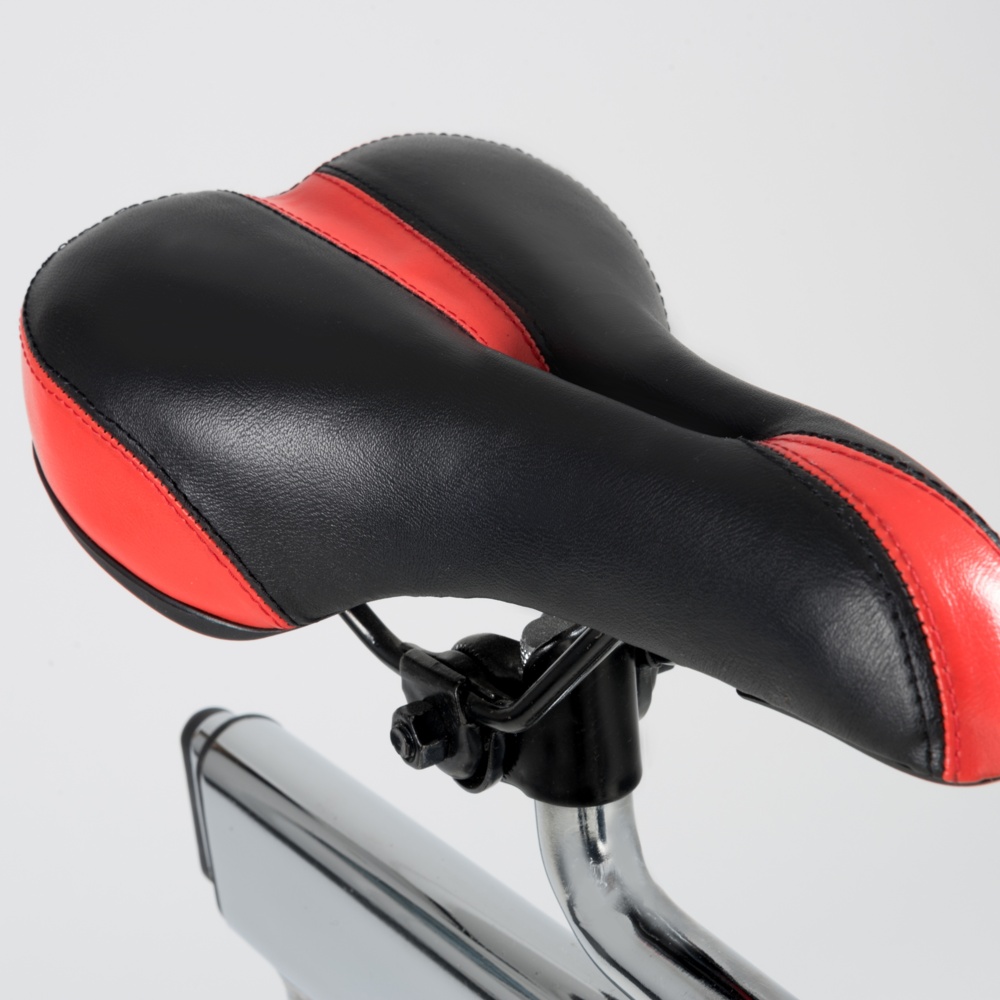

Seat positionbicolour saddle with vertical adjustment and micrometric horizontal adjustment

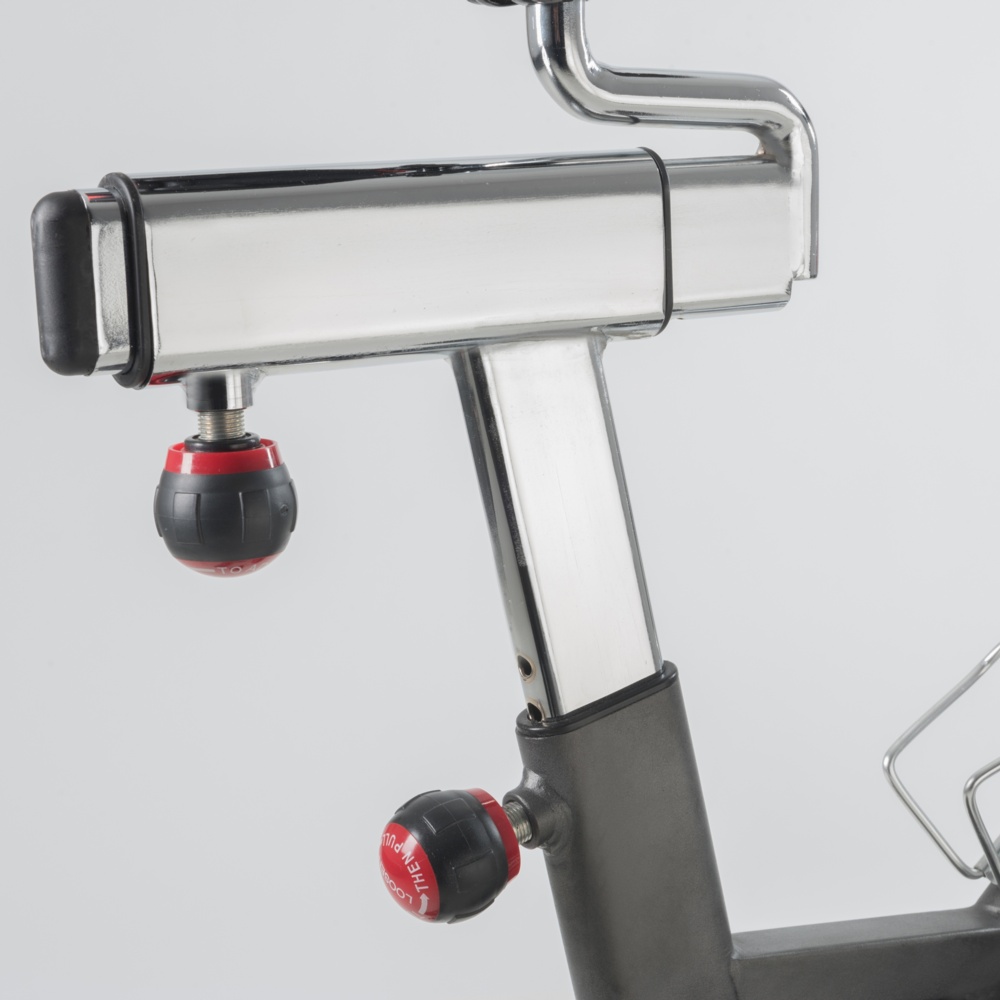

Handlebarvertical adjustment
Handlebar height *min 84 cm, max 98 cm
Sddle height *min 68.5 cm, max 89 cm
Fore & Aft Saddle position *min 60 cm, max 67.5 cm
Resistance adjustmentmanual - micrometric
Heart ratebuilt-in wireless pulse receiver
Moving wheelsyes

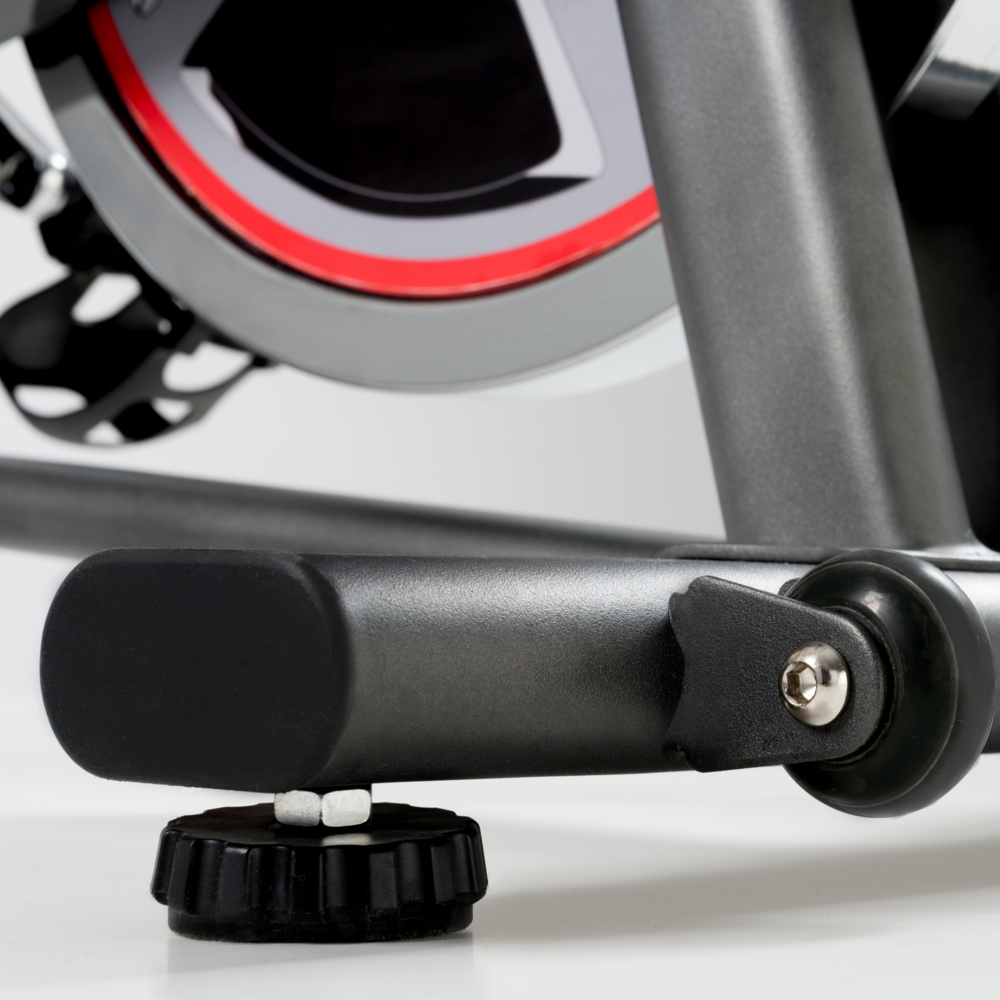

Rubber adjustment feetyes

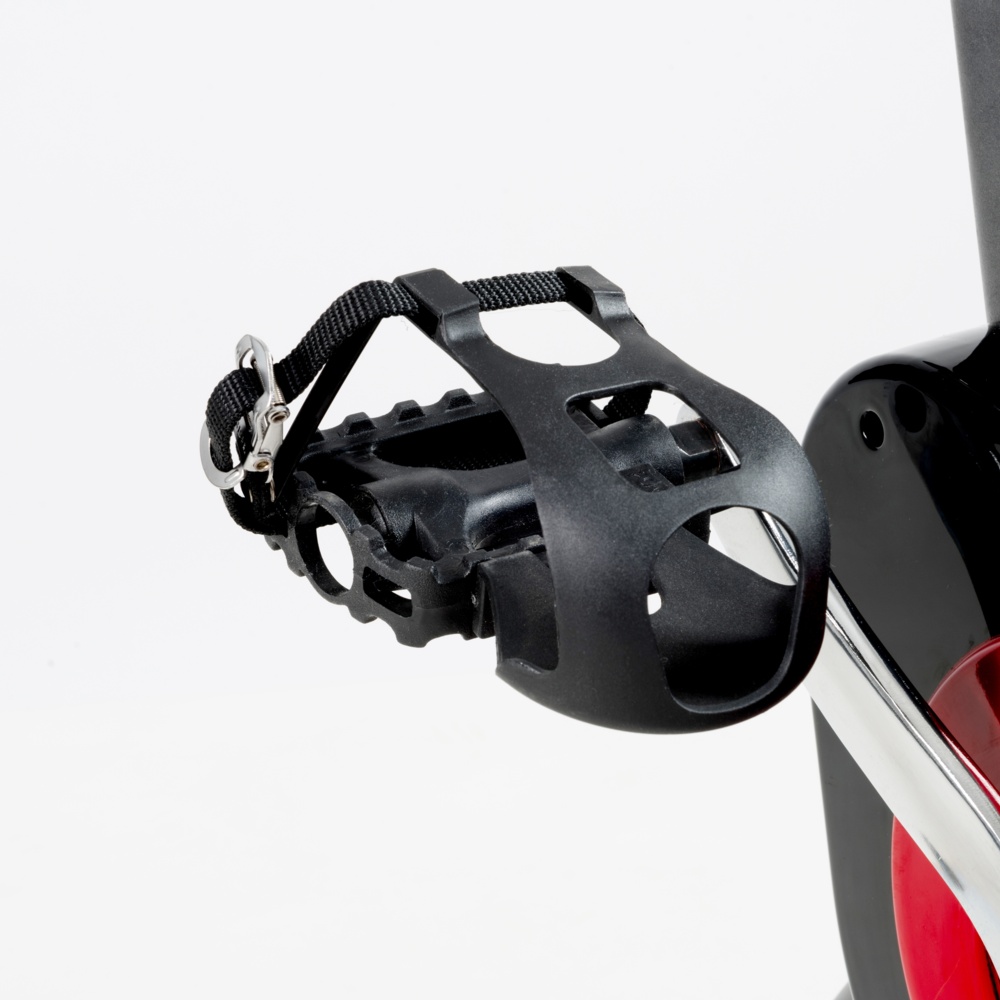

Pedal crank3 pieces
Framehigh-density steel
Paintingheavy duty powder coating
Weight45 Kg
Set up size1170 x 500 x 1100 mm
Gross weight49 Kg
Packing size1060 x 250 x 850 mm
CompliancesCE-ROHS-EN957

* Measurements:

Fore & Aft Saddle position > from the seat anchor point to the minimum handlebar position
Handlebar height > from upper edge handlebar to bike support base (upper face)
Saddle height > from saddle anchor point (slide) to bike support base (upper face)
Handlebar position slide > Δ of the minimum and maximum position of the slide.
