Drive train belt - fixed gear. Braking system magnetic with motorized resistance adjuster and safety felt pad. Brake button for emergency stop. Flywheel system 24 kg (CNC-balanced). HRC-HEART RATE CONTROL. Built-in wireless pulse receiver - chest belt included. APP READY. iConsole+App (included). Kinomap Fitness App (compatible).

  • iconsole
  • kinomap

Technical data

Drive trainbelt - fixed gear
Braking systemmagnetic with motorized resistance adjuster and safety felt pad. Brake button for emergency stop
Flywheel system24 kg (CNC-balanced)
Max user weight150 Kg
Consolewith LCD display - multicolor - smartphone/tablet holder included
Functionsdistance, time, calories, pulse, speed, odometer, RPM, 12 pre-set programs, 4 HRC, watt
App Ready

Built-in Bluetooth intelligent system which enables your bike to fully interact with the most motivating Apps specifically suitable for bike training. Includes iConsole+ App with maps and routes worldwide, fitness plan and workout record. Compatible with Kinomap fitness App (subscription not included)

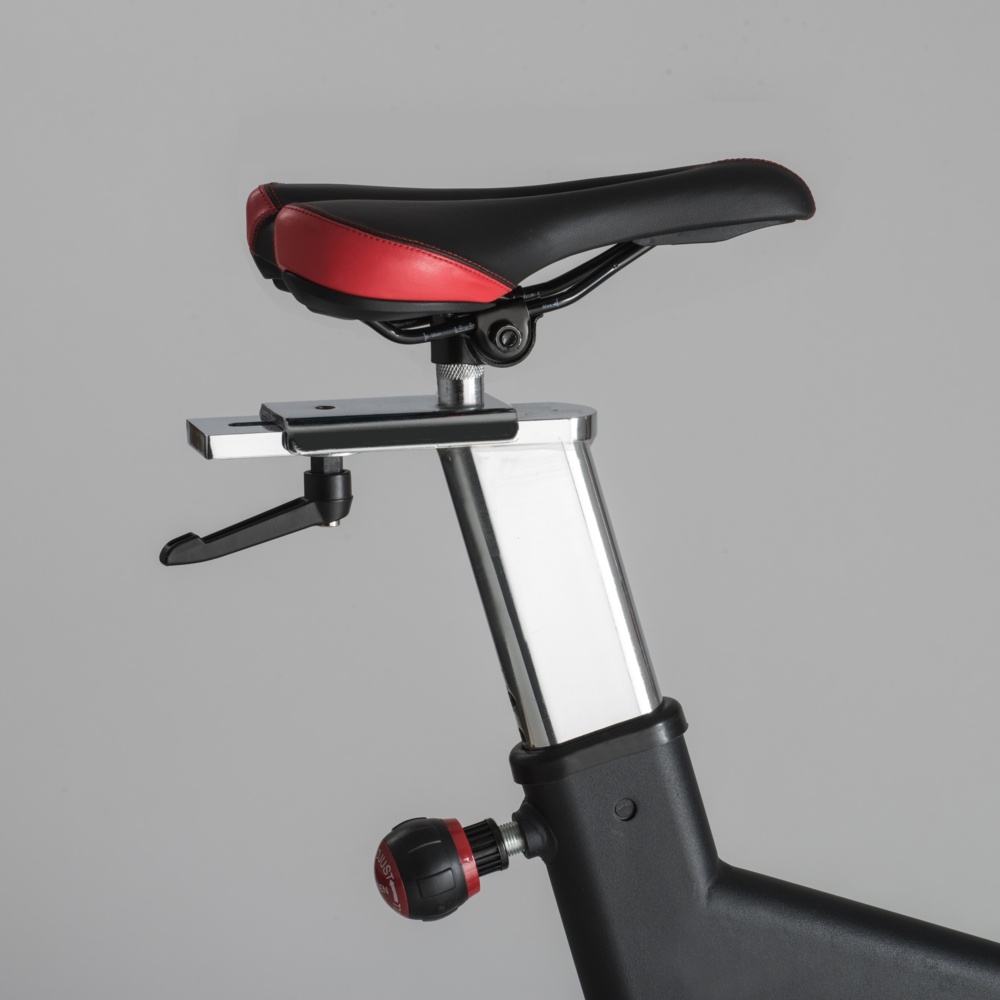

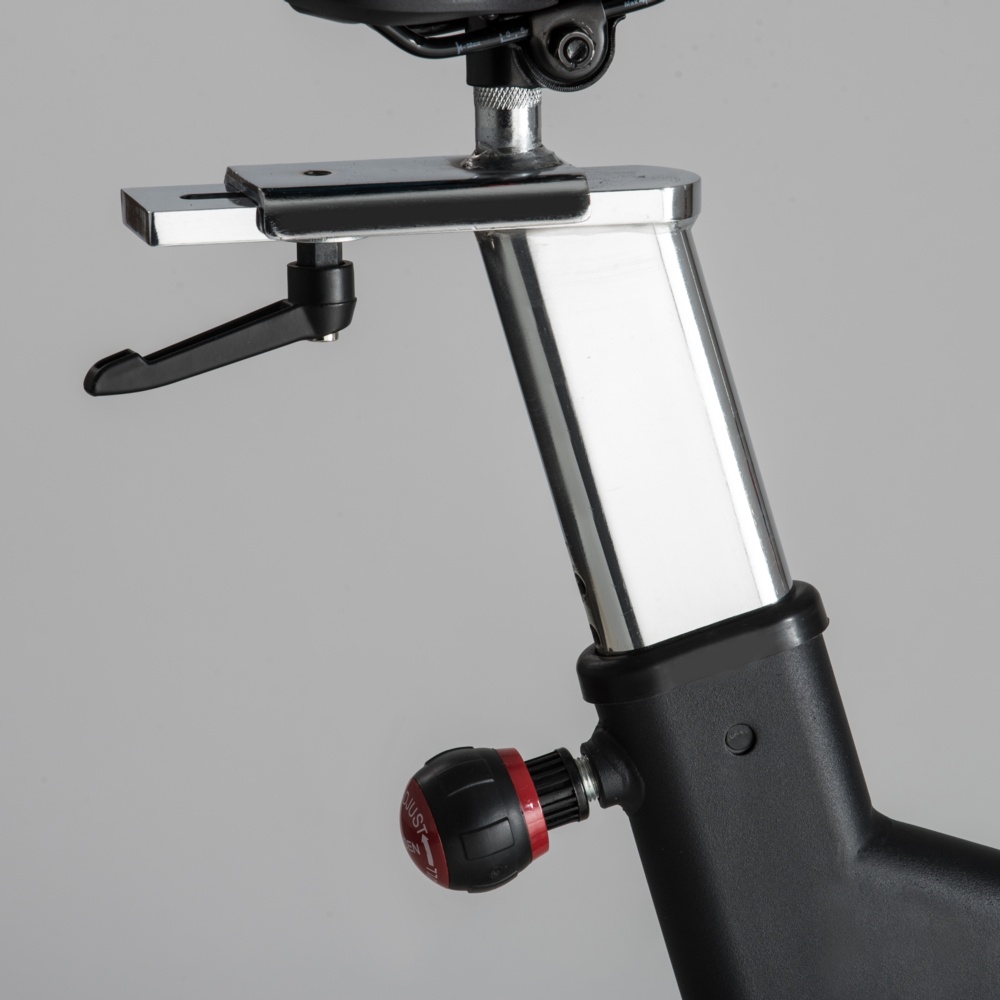

Seat positionbicolour saddle with vertical adjustment and micrometric horizontal adjustment

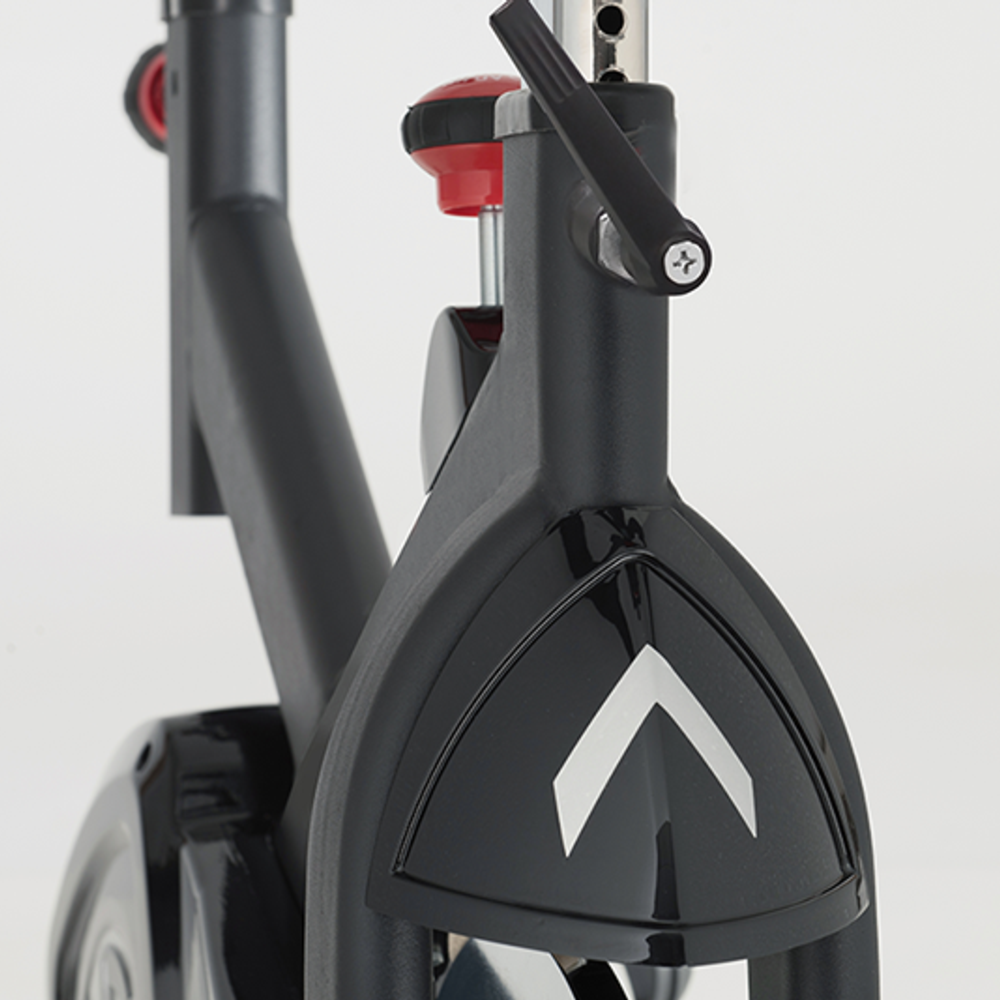

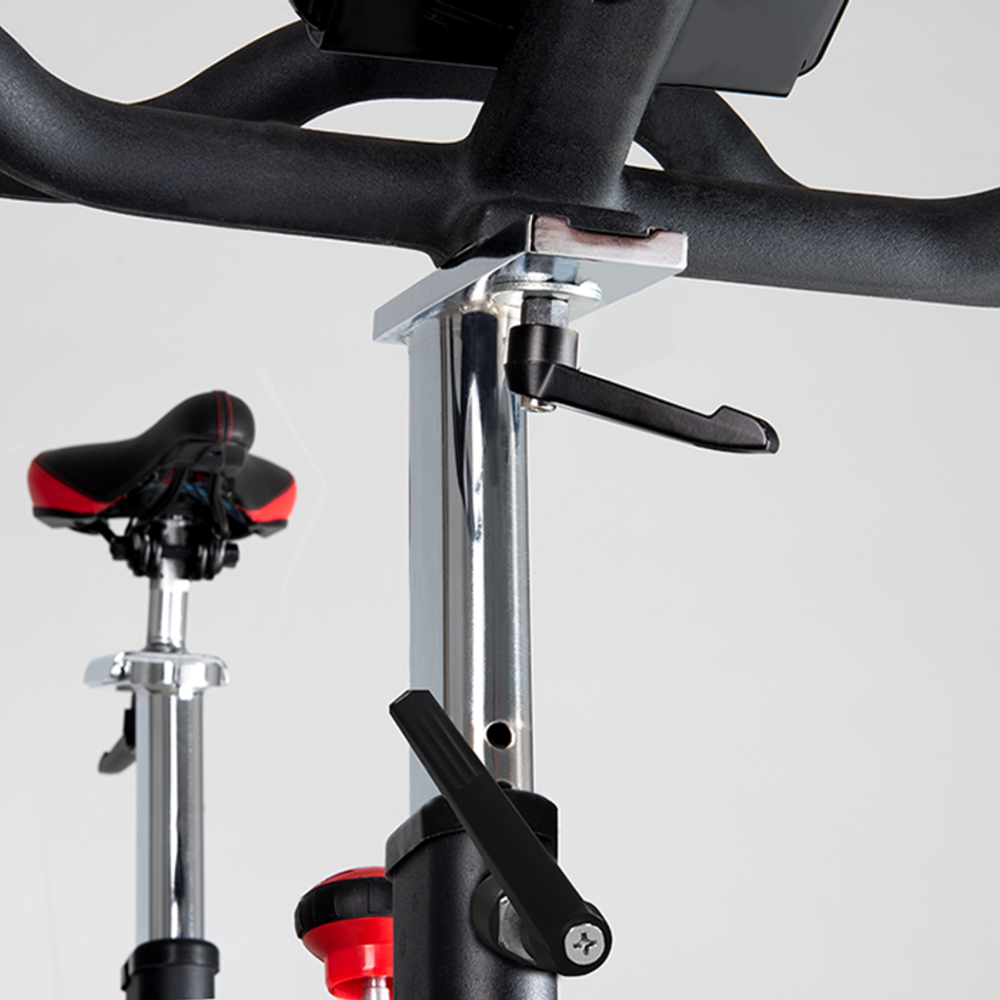

Handlebarmicrometric vertical and horizontal adjustment
Handlebar height *min 91 cm, max 105.5 cm
Sddle height *min 76 cm, max 96 cm
Handlebar position slide * +/- 8.5 cm
Fore & Aft Saddle position *min 54 cm, max 61 cm

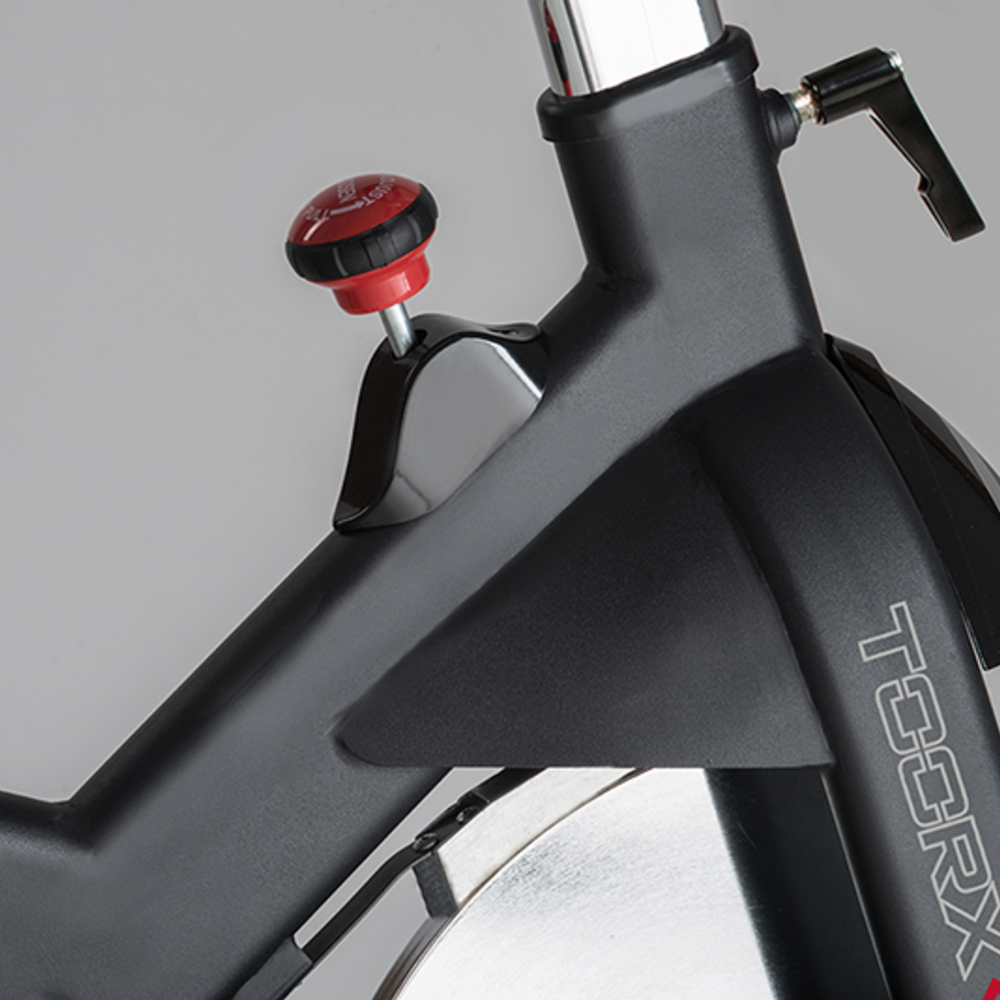

Resistance adjustmentmotorized with 32-level tension control
Heart rateBuilt-in wireless pulse receiver - chest belt included

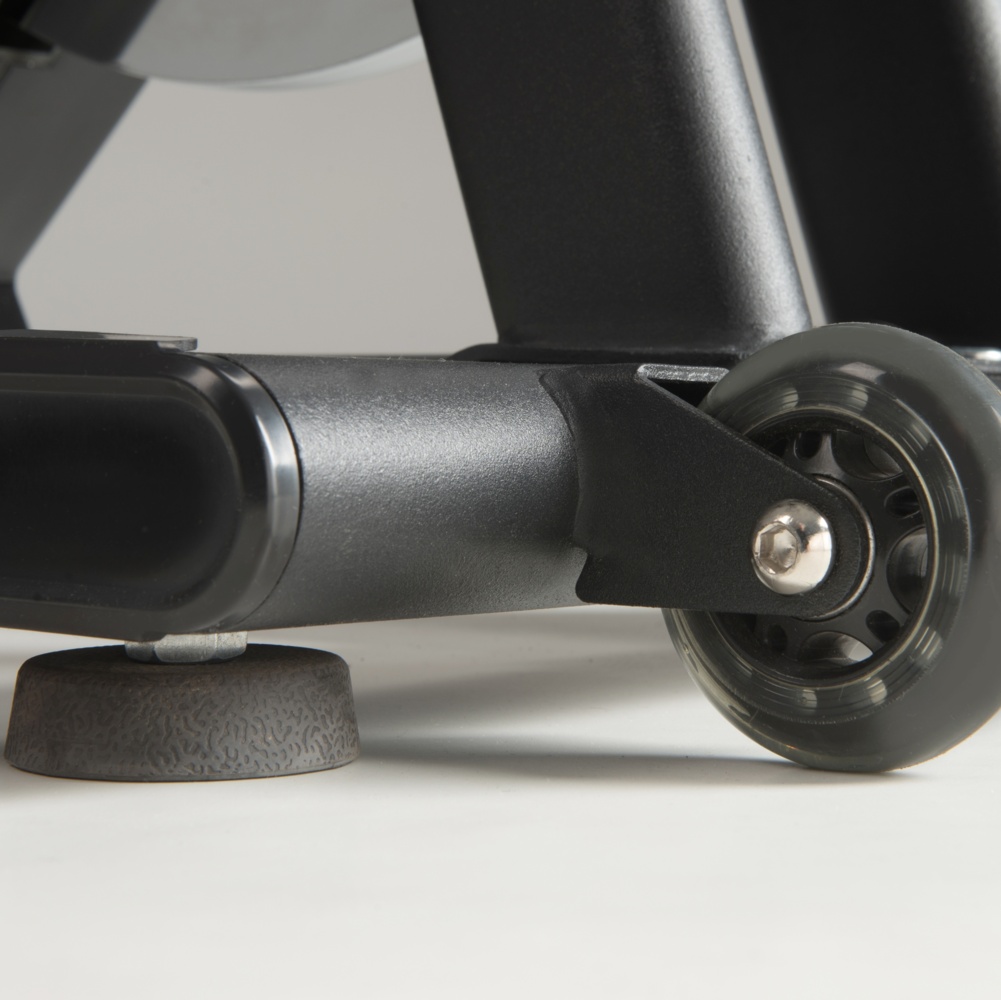

Moving wheelsyes
Rubber adjustment feetyes

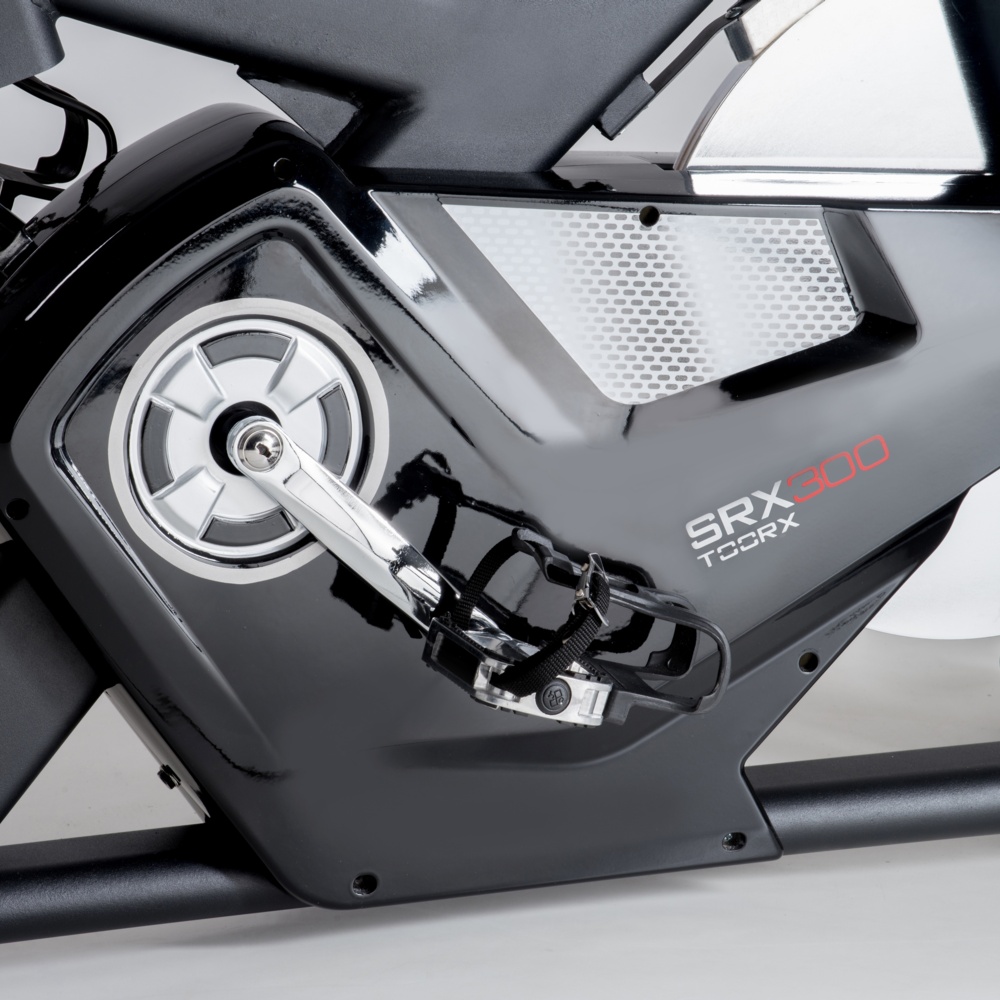

Pedal crank3 pieces

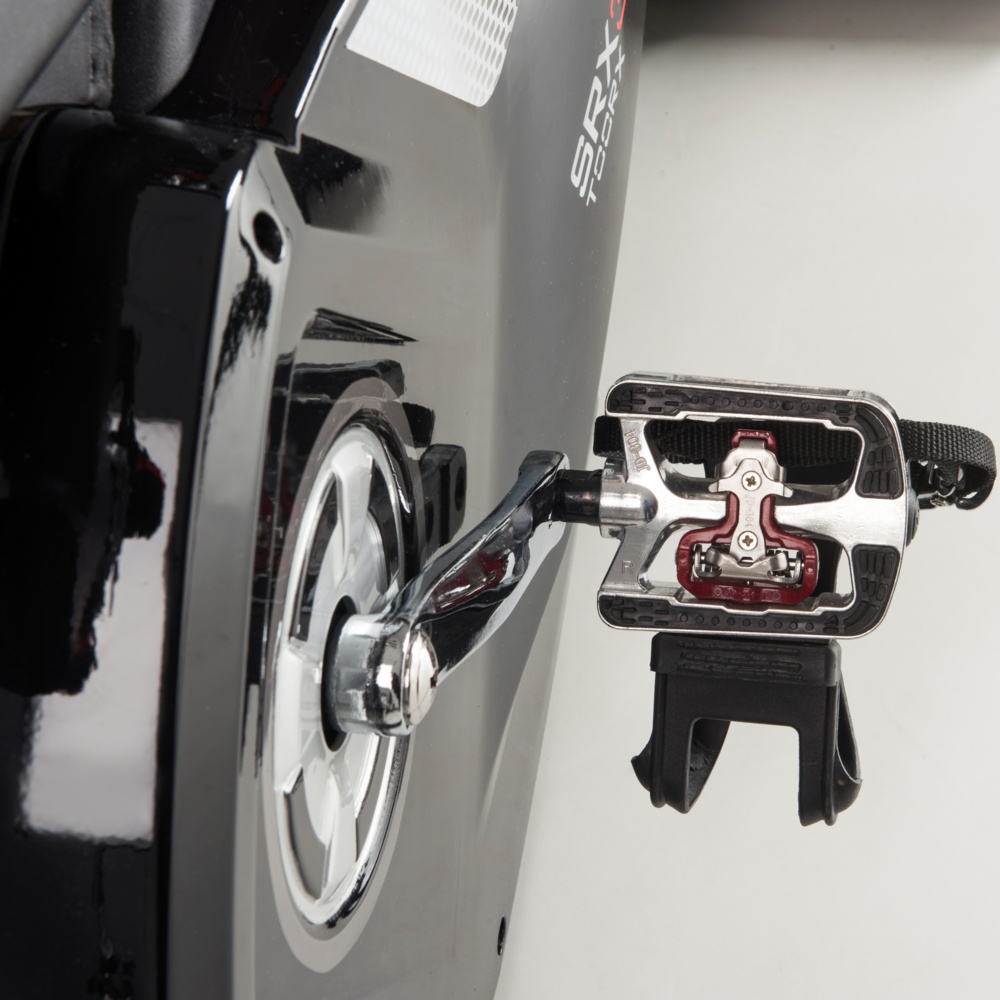

Pedalsquick cleat retention system SPD
Framehigh-density steel
Paintingheavy duty powder coating
Weight59 Kg
Set up size1210 X 530 X 1150 mm
Gross weight62 Kg
Packing size1010 x 230 x 850 mm

* Measurements:

Fore & Aft Saddle position > from the seat anchor point to the minimum handlebar position
Handlebar height > from upper edge handlebar to bike support base (upper face)
Saddle height > from saddle anchor point (slide) to bike support base (upper face)
Handlebar position slide > Δ of the minimum and maximum position of the slide.
