indoor cycles: SRX-500; cod. SRX-500

KEY POINTS
SRX 500 features a new braking system directly acting on the flywheel, allowing to pedal in an extremely smooth way at the lowest braking system action levels and thus completely eliminating the slight effort feeling which, instead, characterizes the SRX 300 braking system under the same use conditions.

the images and the data cointained in web site and catalogue may differ in some details from the originals.

COMPARE

Technical data

Drive train
Drive train	belt - fixed gear
Braking system
Braking system	magnetic with motorized resistance adjuster. New direct- acting braking system. Brake button for emergency stop
Flywheel system
Flywheel system	24 kg (CNC-balanced)
Max user weight
Max user weight	150 Kg
Console

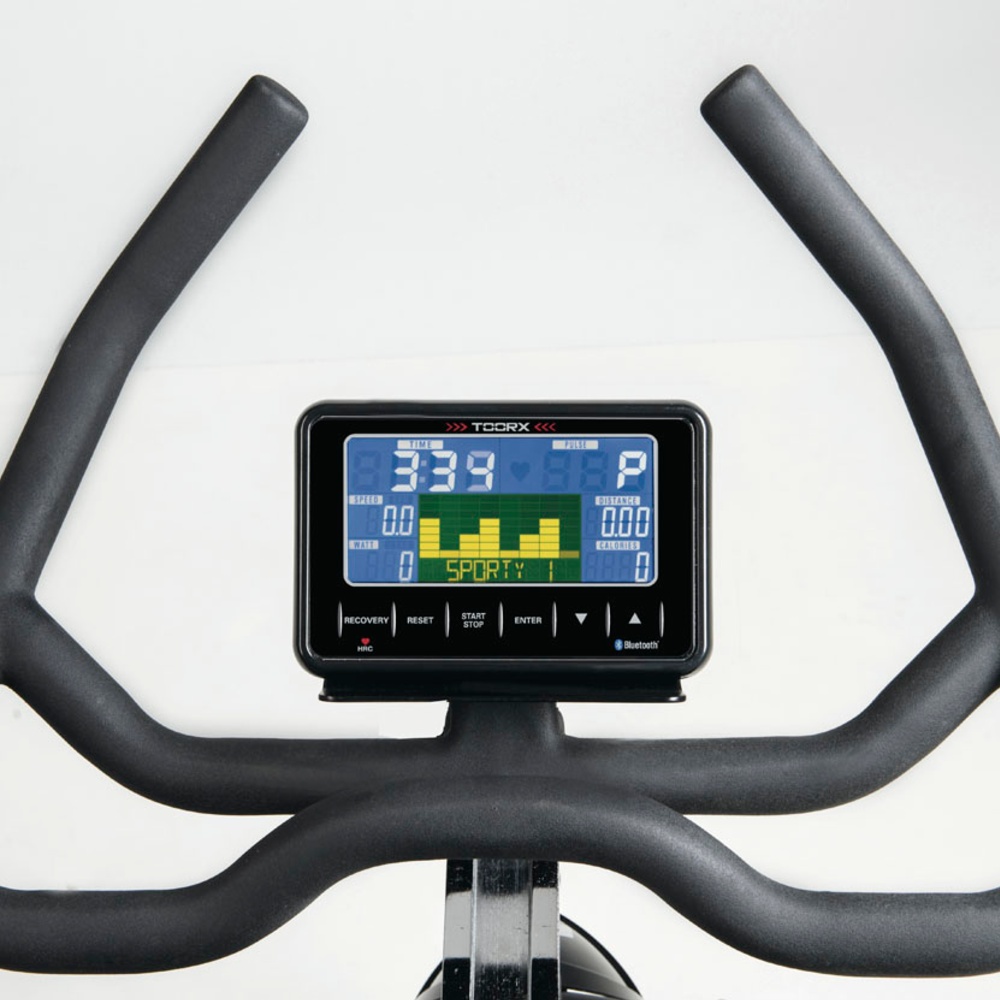

Console	multicolor LCD display - smartphone/tablet holder included
Functions
Functions	distance, time, calories, pulse, speed, odometer, RPM. PROGRAMS: 12 pre-set programs, 4 HRC, watt
App Ready
App Ready	Built-in Bluetooth intelligent system which enables your bike to fully interact with the most motivating Apps specifically suitable for bike training. Includes iConsole+ App. Compatible with Kinomap fitness App (subscription not included)
Seat position

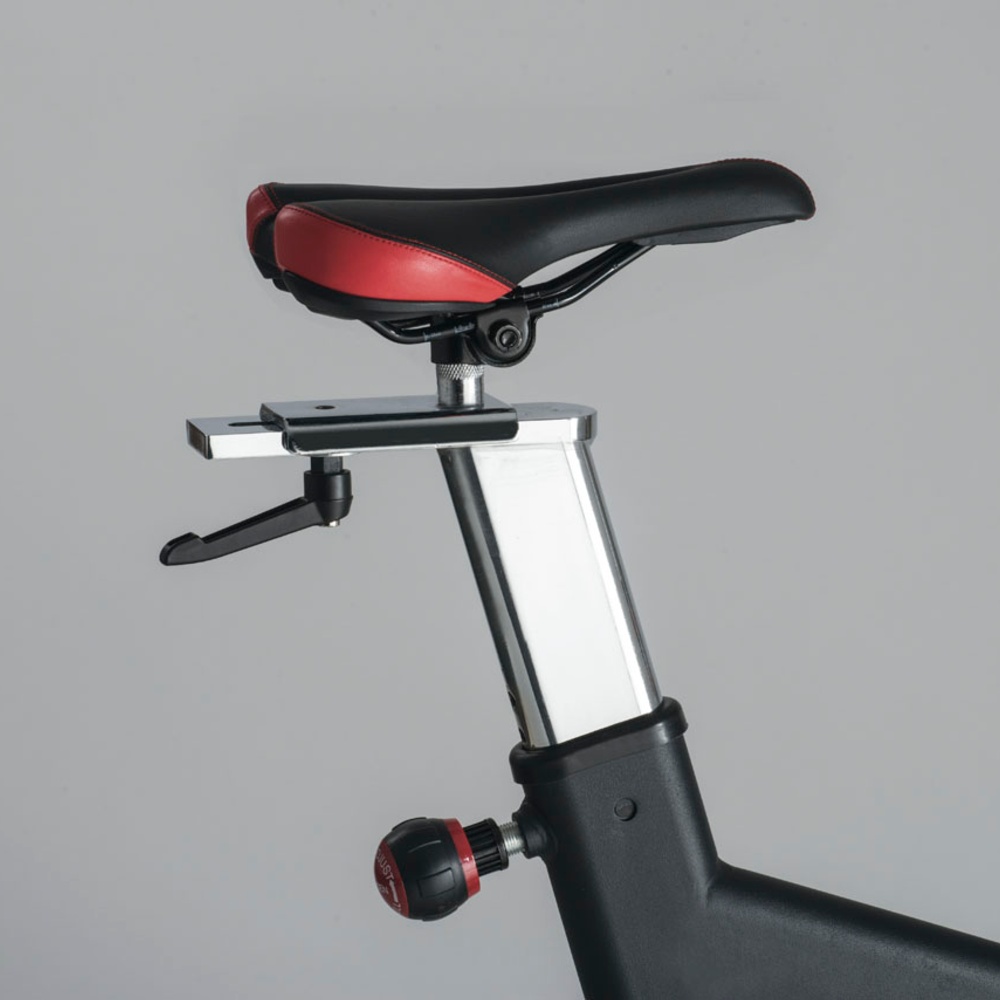

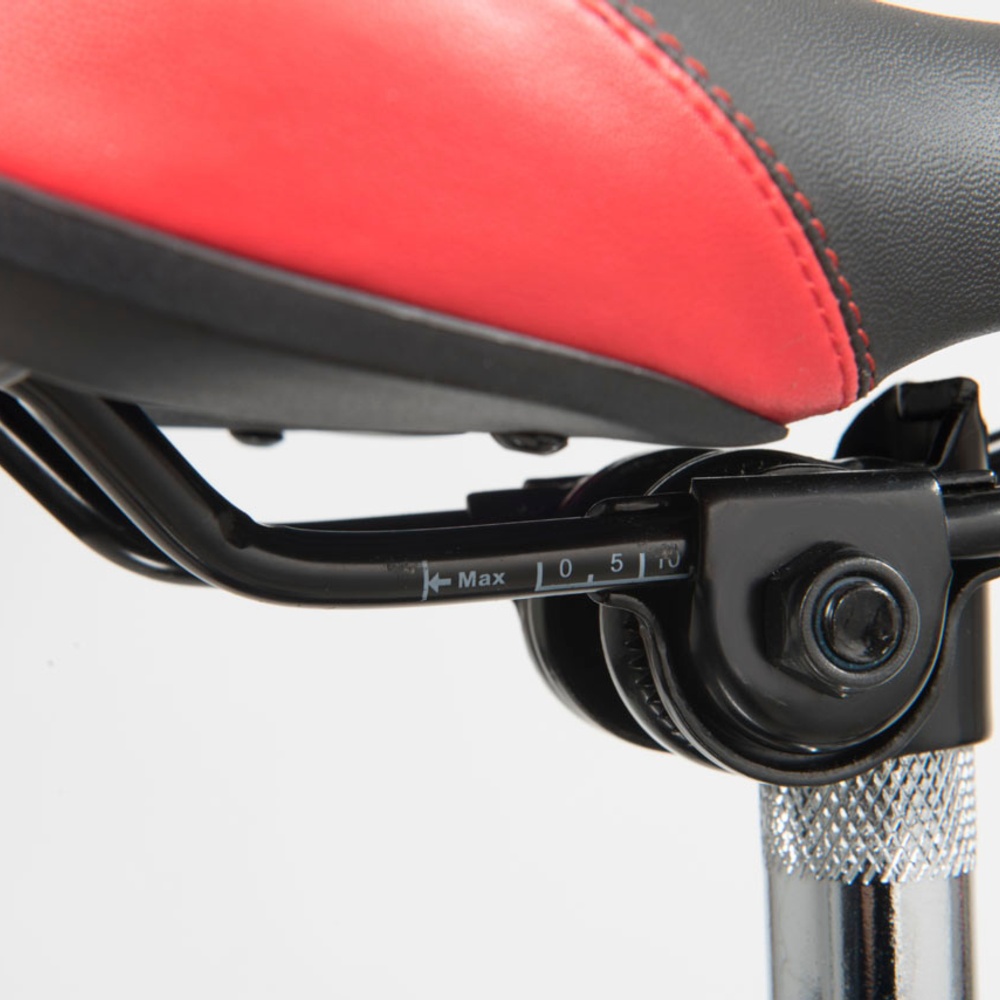

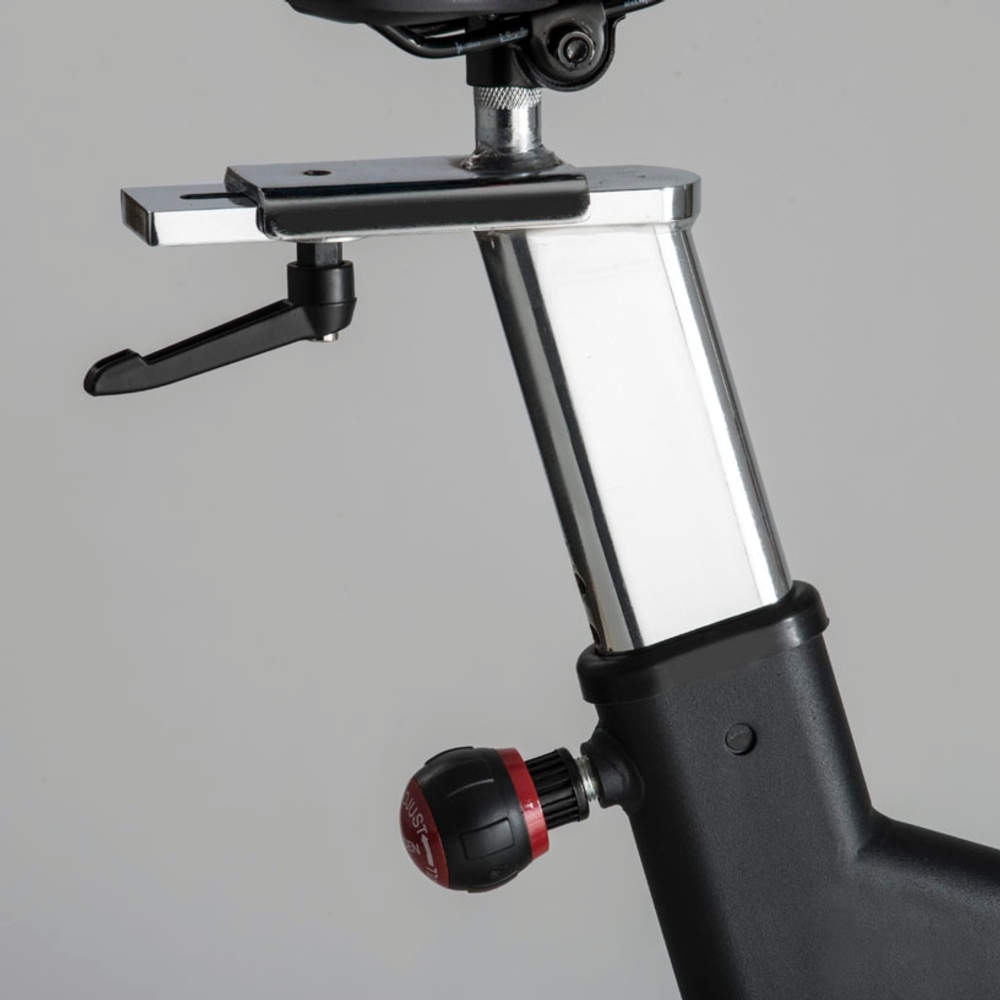

Seat position	bicolour saddle with vertical adjustment and micrometric horizontal adjustment
Handlebar

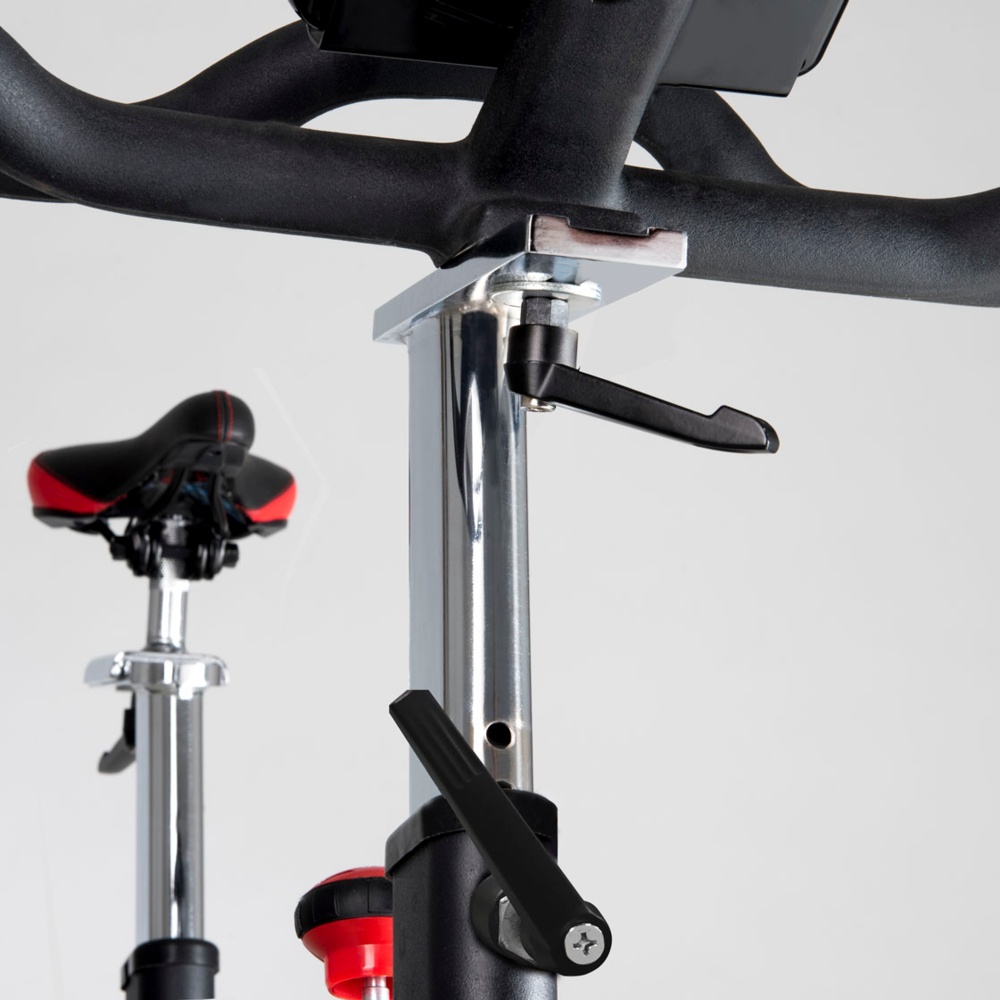

Handlebar	micrometric vertical and horizontal adjustment
Handlebar height *
Handlebar height *	min 91 cm, max 105.5 cm
Sddle height *
Sddle height *	min 76 cm, max 96 cm
Handlebar position slide *
Handlebar position slide *	+/- 8.5 cm
Fore & Aft Saddle position *
Fore & Aft Saddle position *	min 54 cm, max 61 cm
Q Factor
Q Factor	Total: 19,6 cm. - Left: 9,9 cm \| Right: 9,7 cm
Resistance adjustment
Resistance adjustment	motorized with 32- level tension control
Heart rate
Heart rate	Built-in wireless pulse receiver - chest belt included
Moving wheels

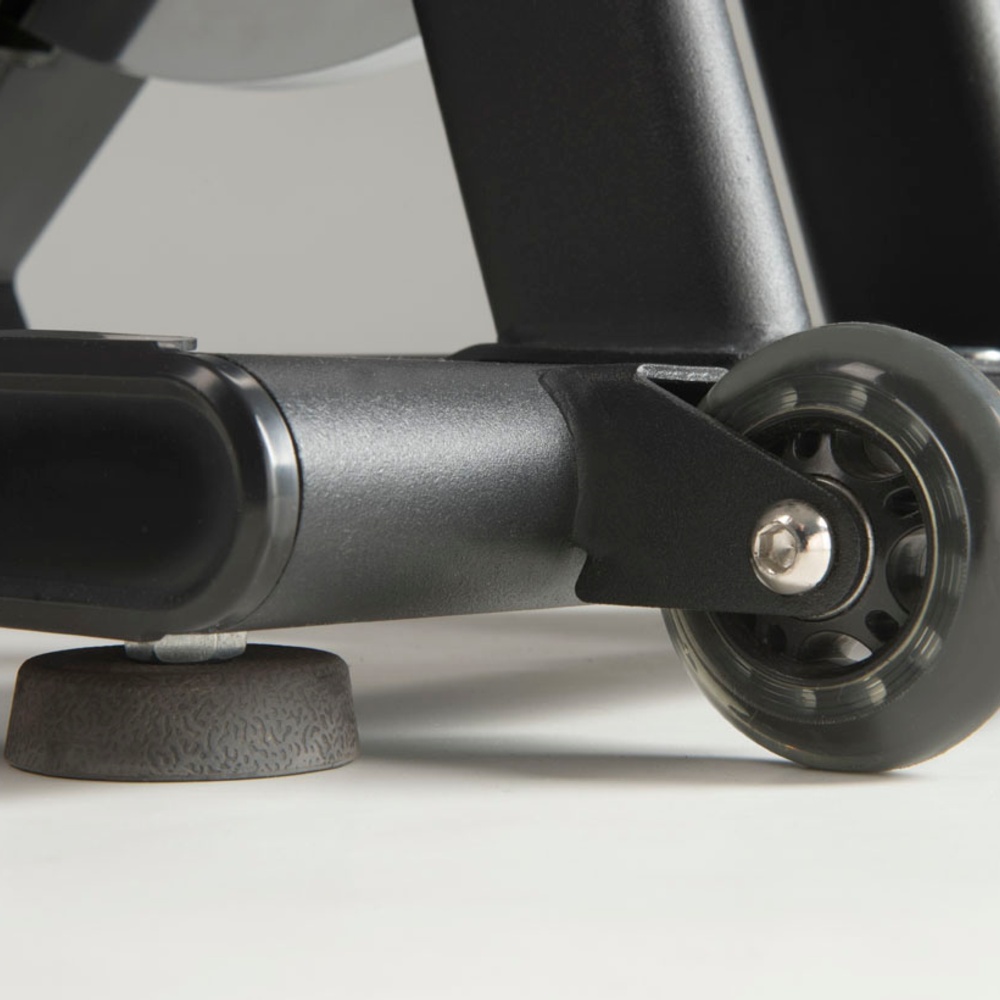

Moving wheels	siyes
Rubber adjustment feet
Rubber adjustment feet	yes

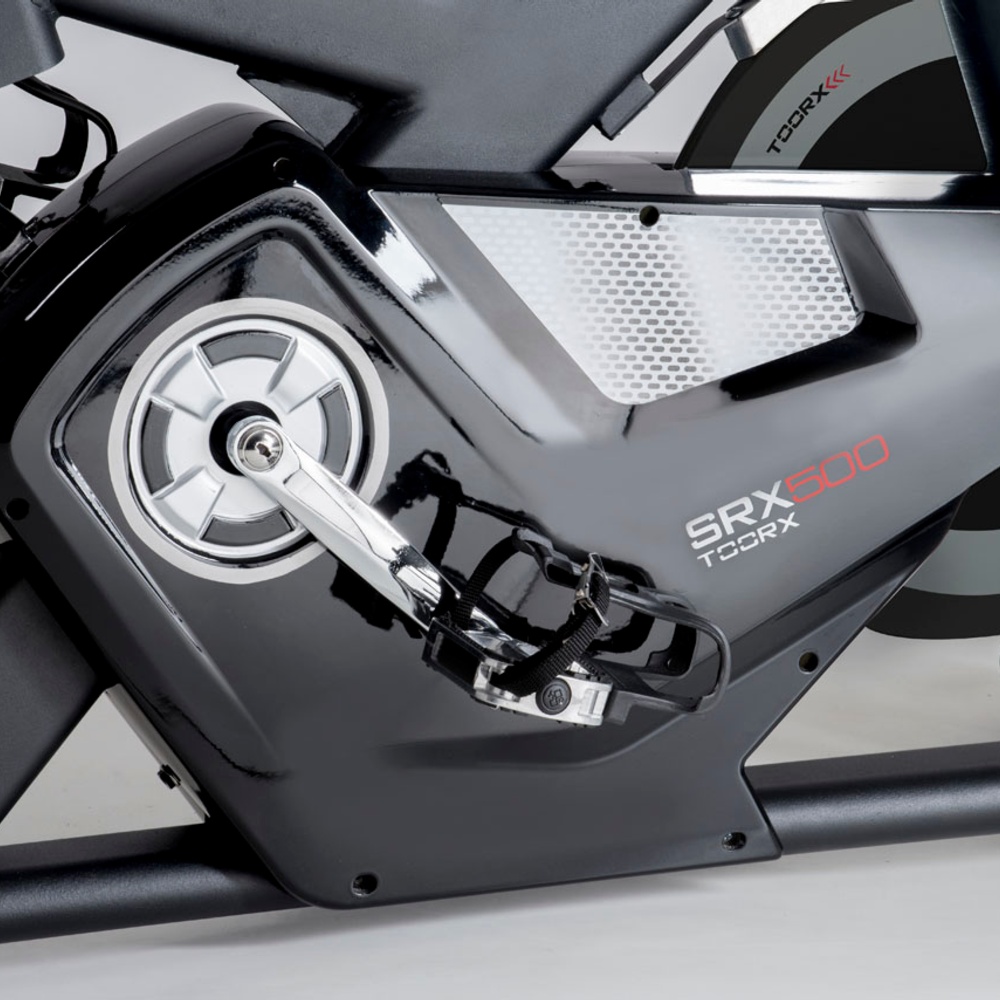

Pedal crank
Pedal crank	3 pieces
Pedals

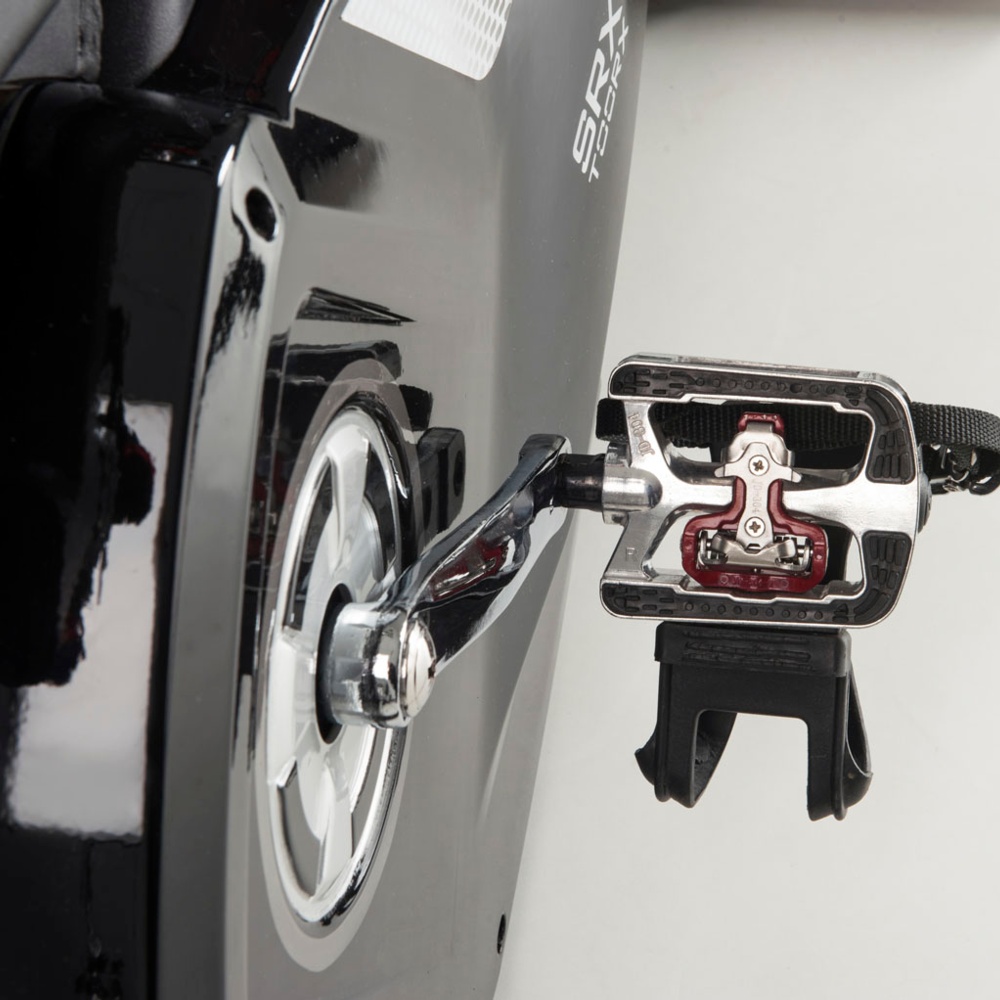

Pedals	quick cleat retention system SPD
Frame
Frame	high-density steel
Painting
Painting	heavy duty powder coating
Weight
Weight	59 Kg
Set up size
Set up size	1210 x 530 x 1150 mm
Gross weight
Gross weight	62 Kg
Packing size
Packing size	1010 x 230 x 850 mm
Compliances
Compliances	CE-ROHS-EN957
Product code
Product code	SRX-500

^* Measurements:

Fore & Aft Saddle position > from the seat anchor point to the minimum handlebar position

Handlebar height > from upper edge handlebar to bike support base (upper face)

Saddle height > To make sure you will be able to use this equipment properly you should measure the cm from your heel to your crotch, bearing in mind that your leg must never be fully extended during the training

Handlebar position slide > Δ of the minimum and maximum position of the slide.
