WBX-220 MULTIFIT

the images and the data cointained in web site and catalogue may differ in some details from the originals.

COMPARE

Technical data

Max structure weight (user + loaded weights)
Max structure weight (user + loaded weights)	320 Kg
Saddle size
Saddle size	340/240 x 365 x 60
Saddle incline
Saddle incline	4-level adjustment (0/22°)
Backrest size
Backrest size	240/210 x 800 x 60
Saddle
Saddle	thickness 60 mm
Backrest incline
Backrest incline	7-level adjustment (-25,5/+88°)
Characteristic

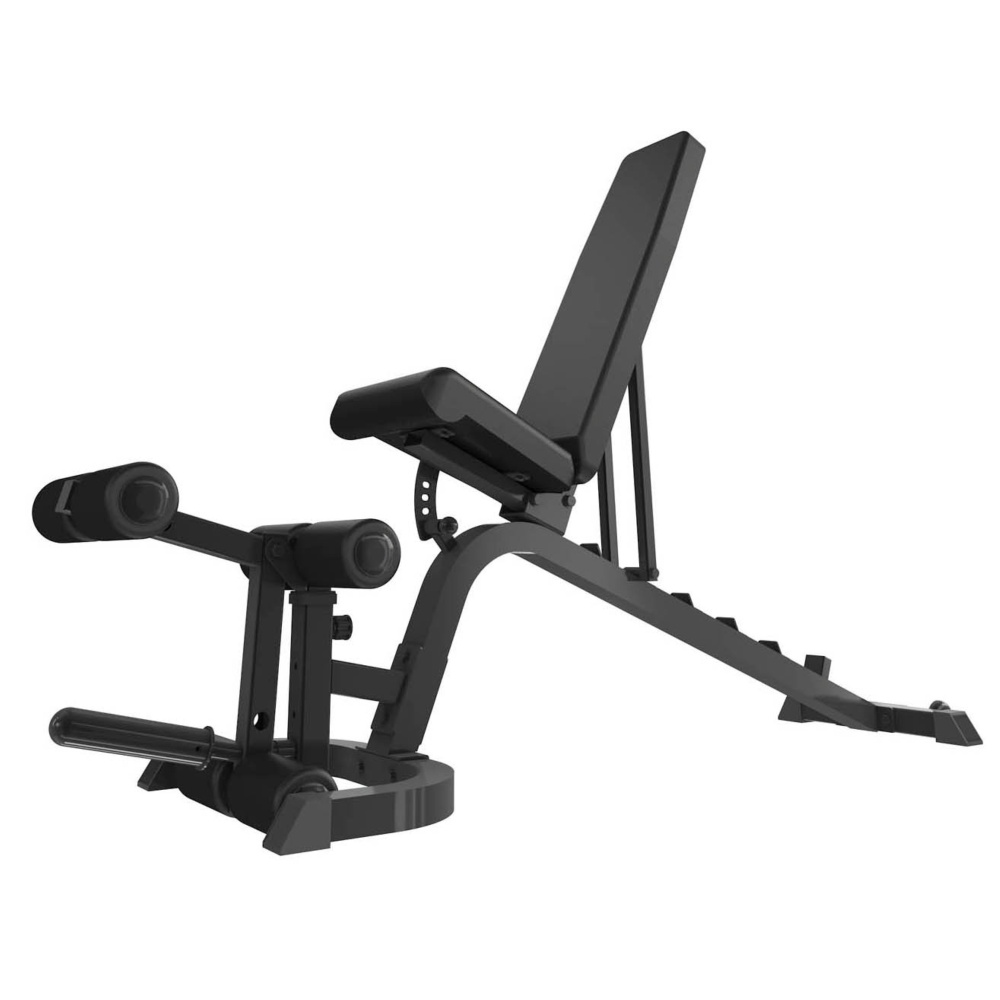

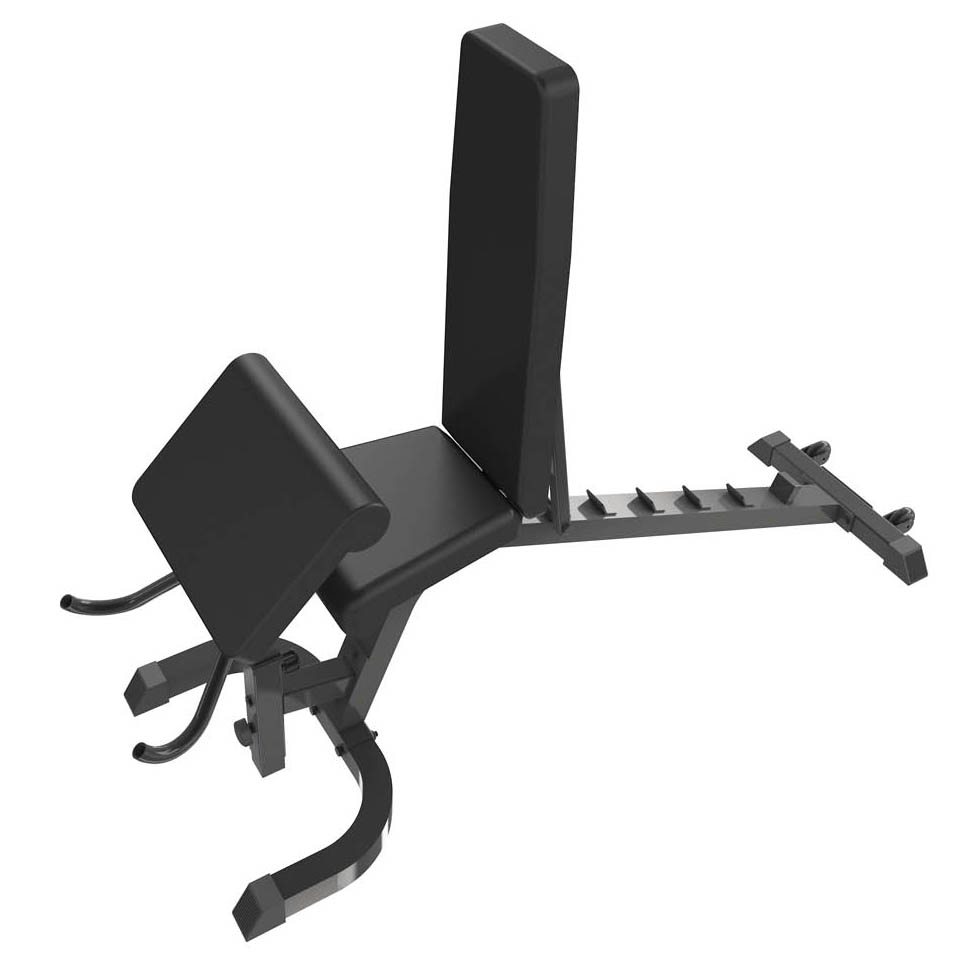

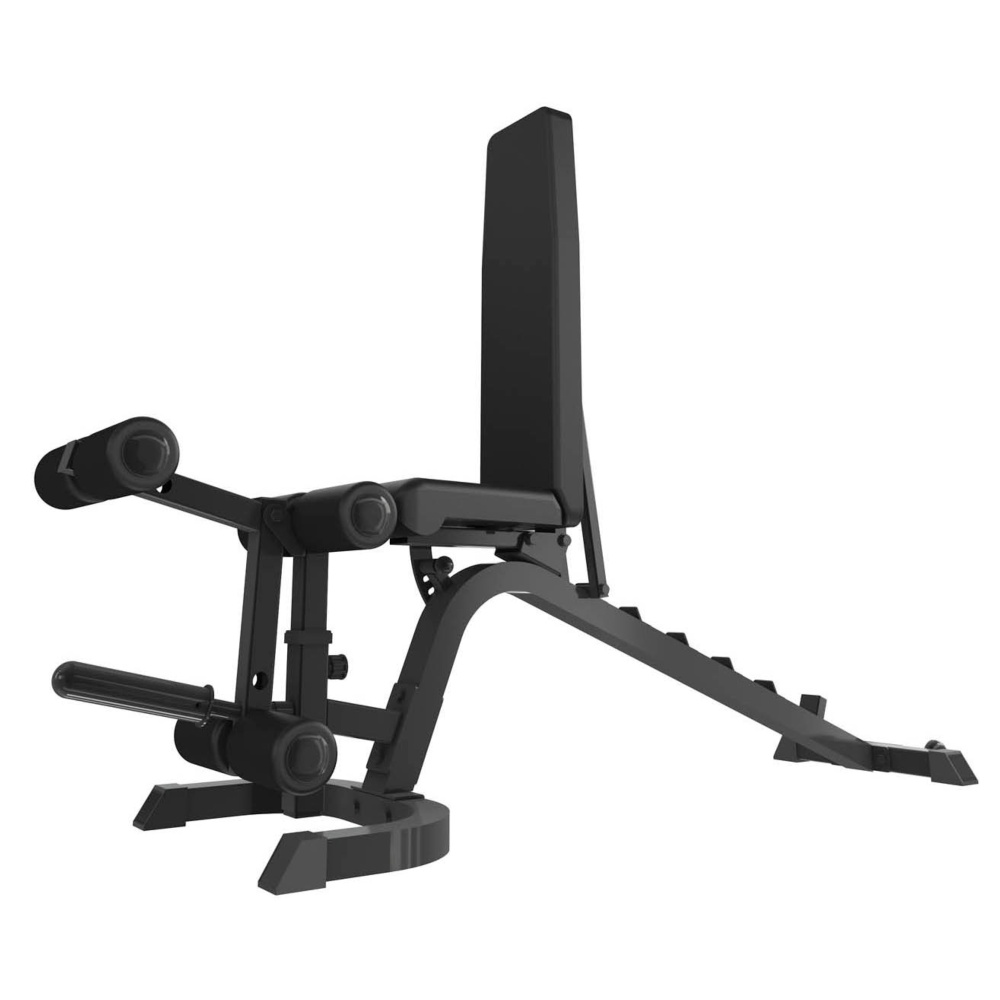

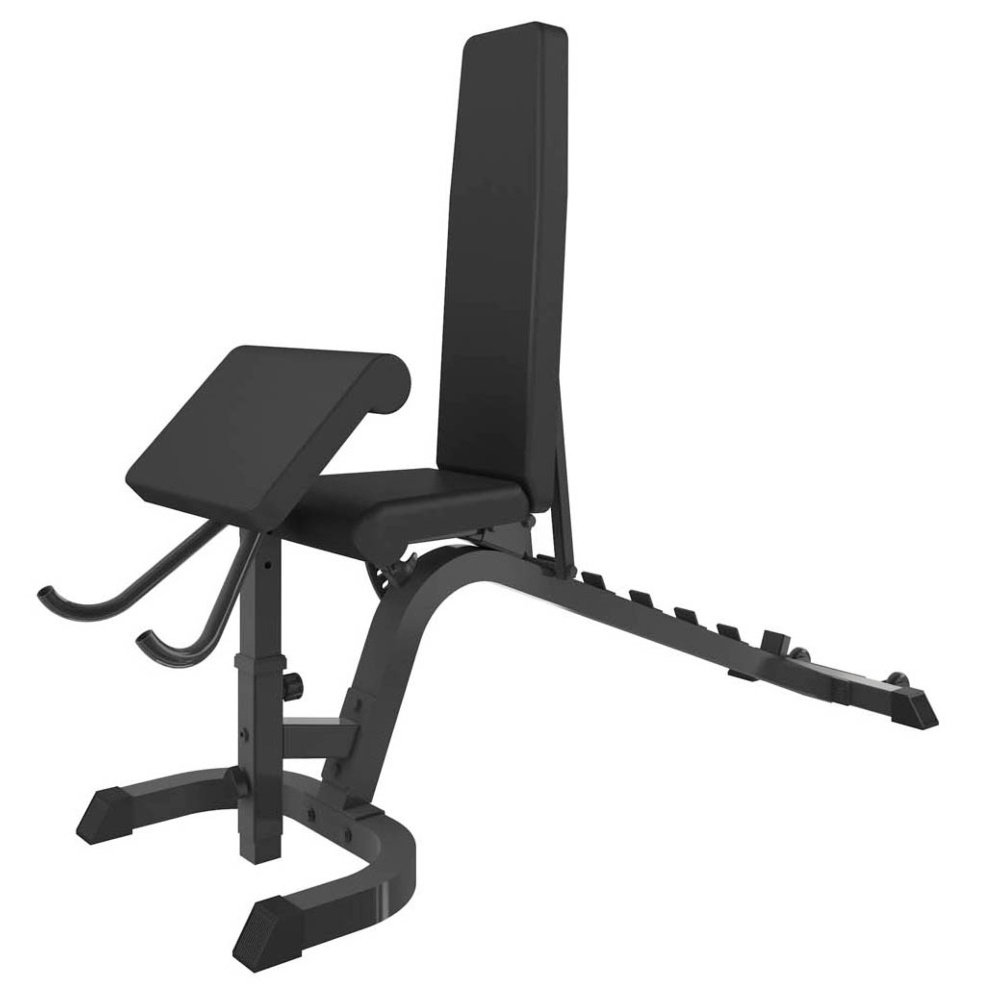

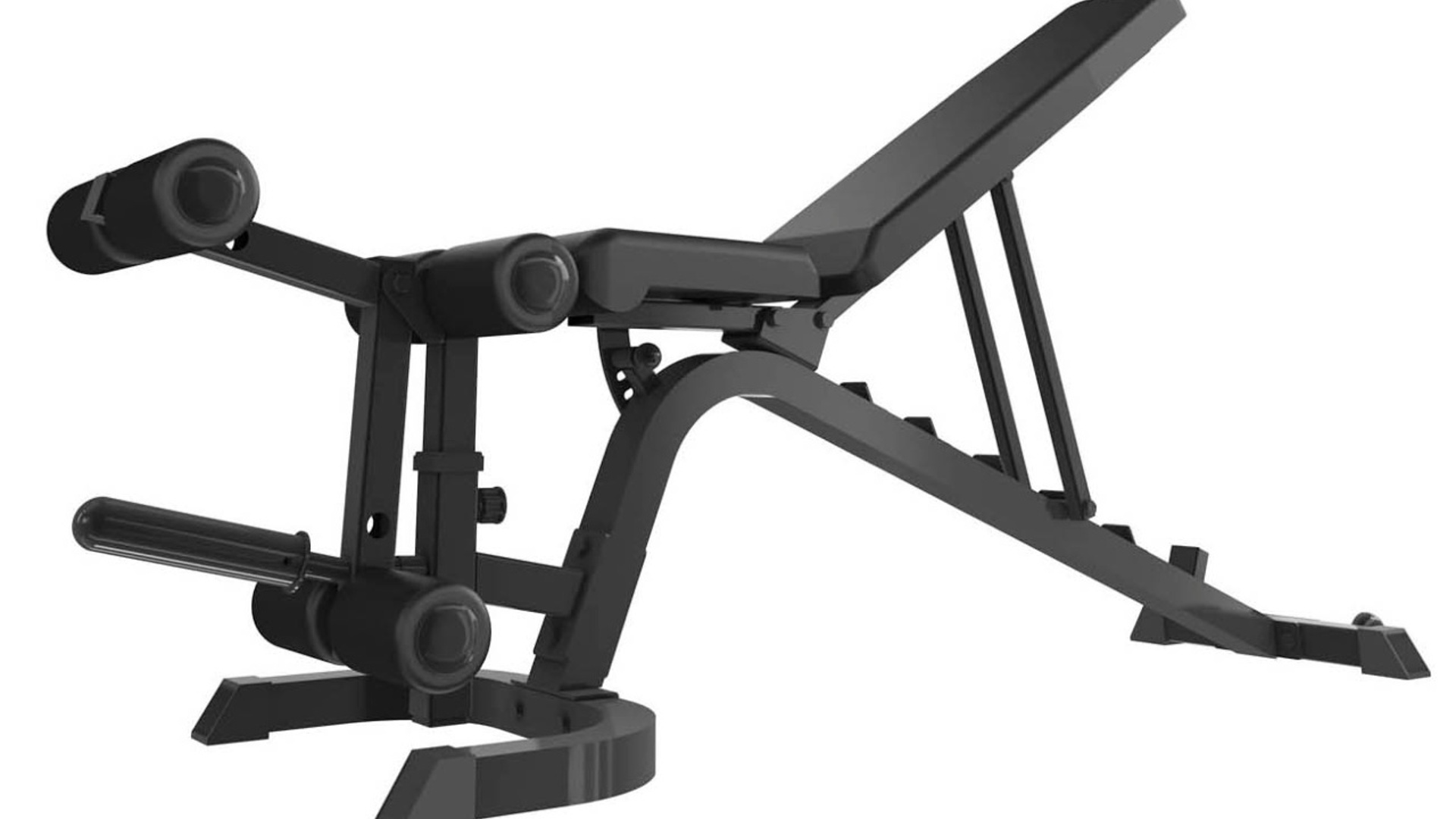

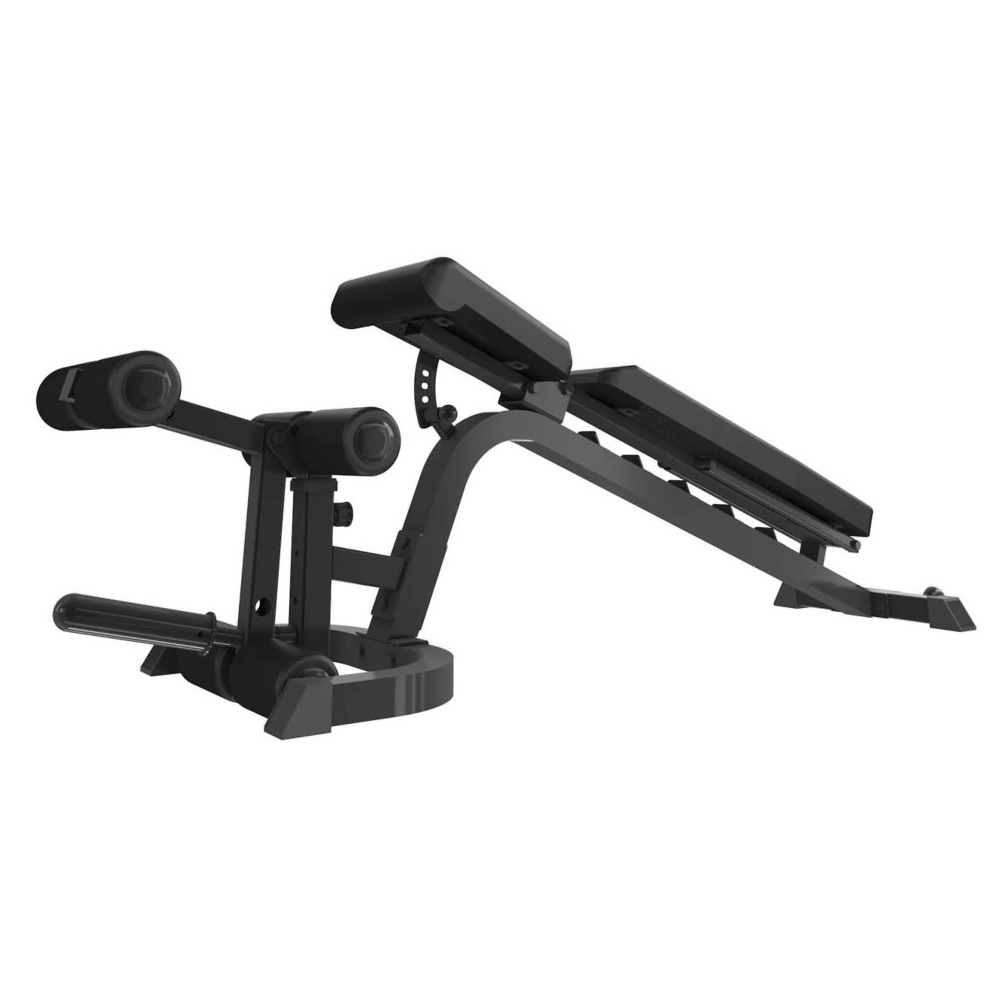

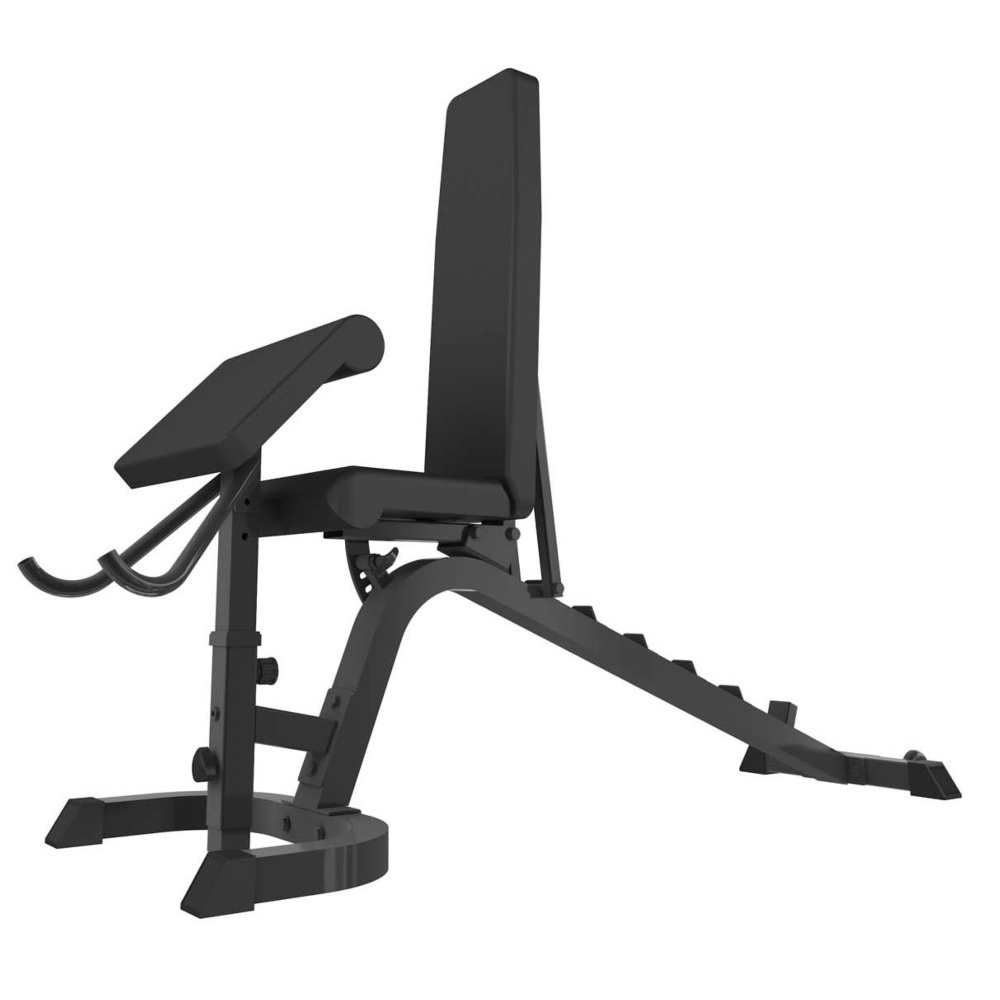

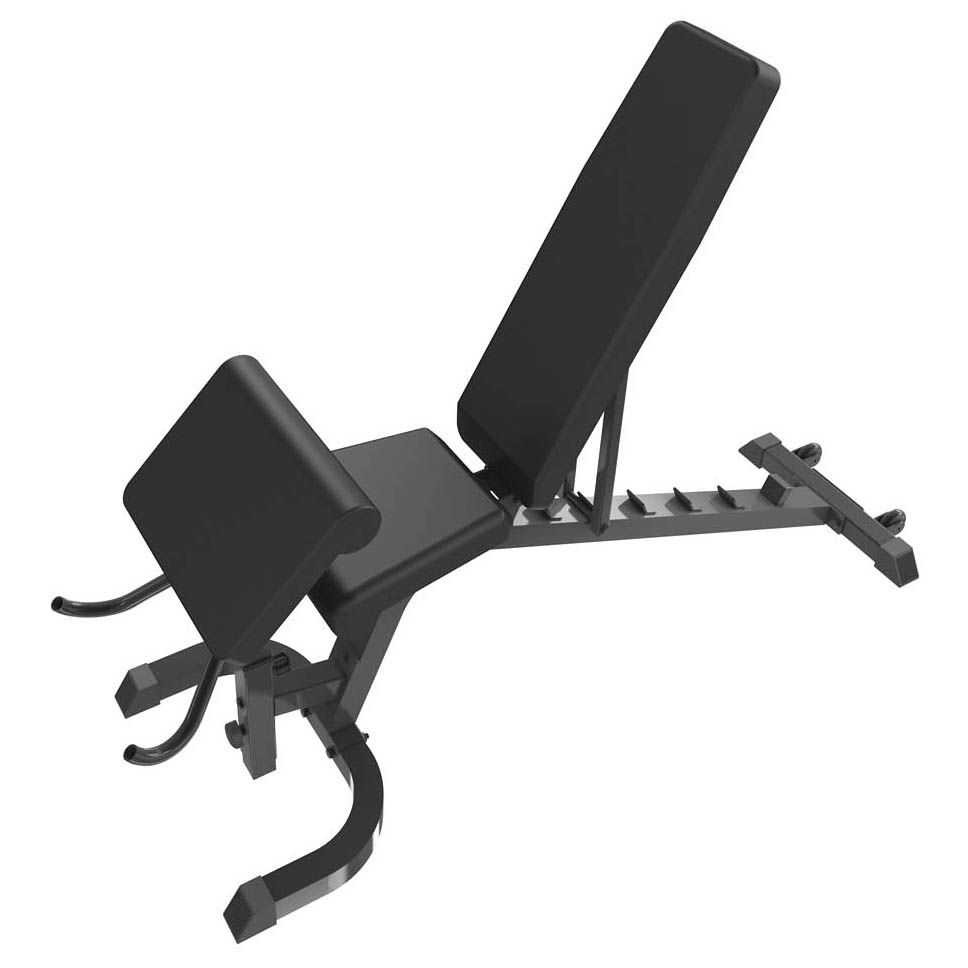

Characteristic	EQUIPMENT/NOTES moving wheels adapter for cast iron weight plates with 50 mm diameter hole flat/incline bench Handle and moving wheels included. Leg curl included OPTIONAL ARM CURL OPTIONAL Cod. ARM-CURLWBX-220MFIT Adjustable arm curl Set up size 400x310x45 mm 3-level height adjustment.
Frame
Frame	reinforced-steel rectangular tube 70x50x2mmand square tube 50x50x2mm
Moving wheels
Moving wheels	moving wheels included
Weight
Weight	26 Kg
Set up size
Set up size	1850 x 545 x 1282* with leg curl * 88° backrest position
Gross weight
Gross weight	28 Kg
Packing size
Packing size	1220 x 600 x 170 mm
Compliances
Compliances	CE-EN ISO 20957-1
Product code
Product code	WBX-200MULTIFIT
EAN
EAN	8029975805337
