SRX-95

Home Line
Vertical

| News |
IT

indoor cycles: SRX-95; cod. SRX-95

KEY POINTS
Drive train belt - fixed gear.

Magnetic braking system.

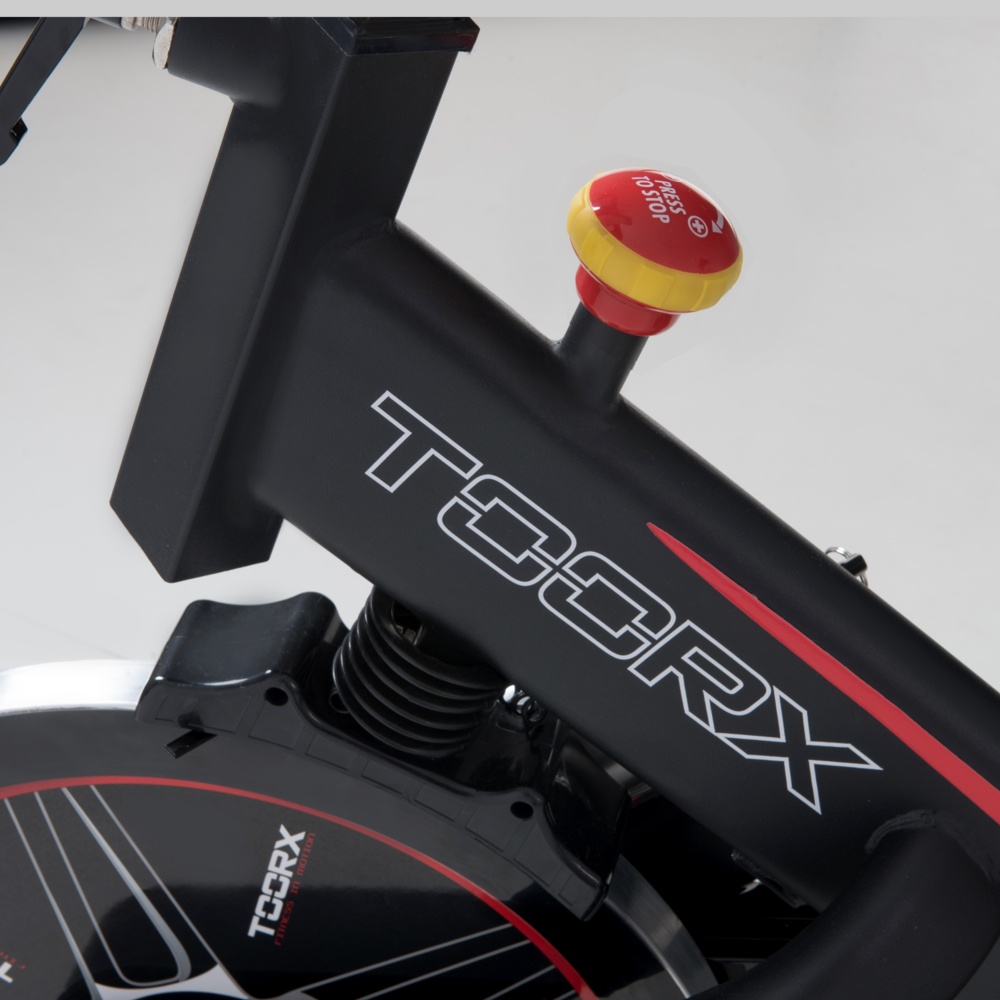

Brake button for emergency stop.

Flywheel system 22 kg (balanced).

Built-in wireless pulse receiver - chest belt included
(Bottle not included)

the images and the data cointained in web site and catalogue may differ in some details from the originals.

COMPARE

Technical data

Drive train
Drive train	belt - fixed gear
Braking system
Braking system	magnetic. Brake button for emergency stop
Flywheel system
Flywheel system	22 kg (balanced)
Max user weight
Max user weight	140 Kg
Console with LCD

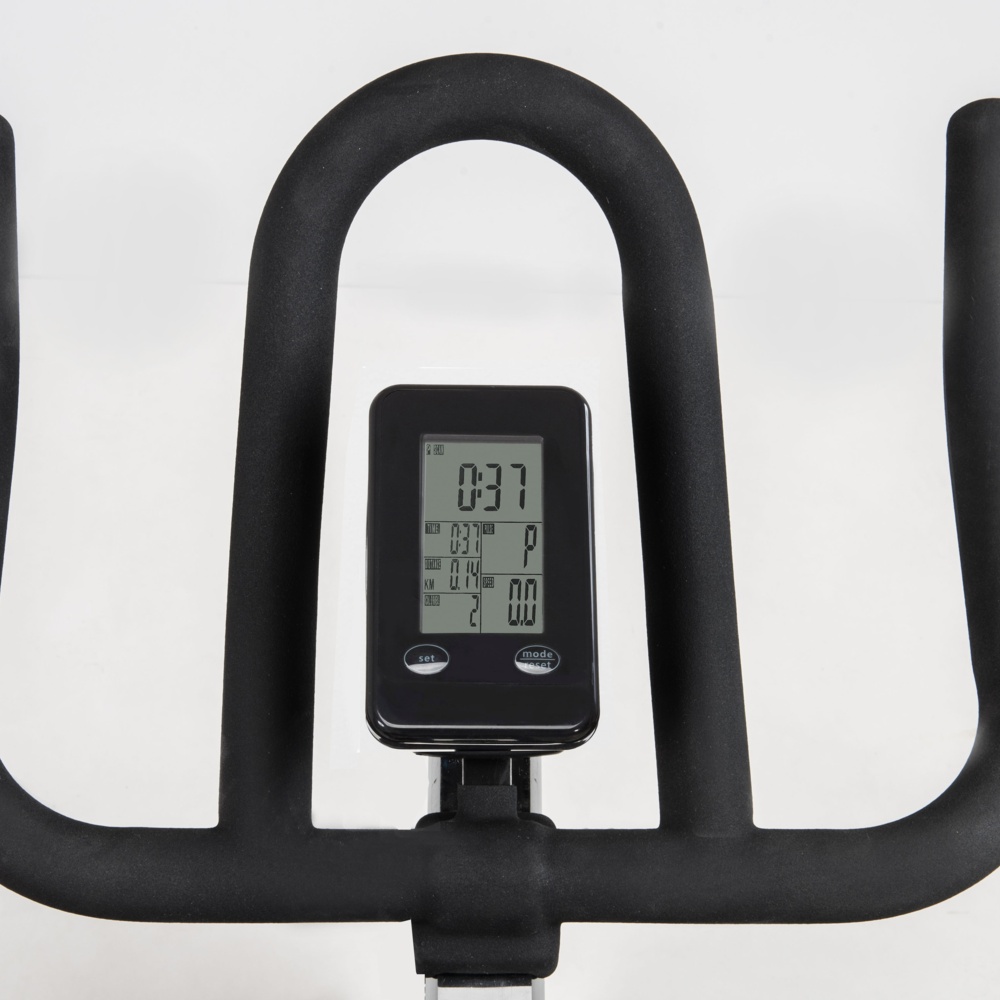

Console with LCD	distance, time, calories, pulse, speed, RPM
Seat position

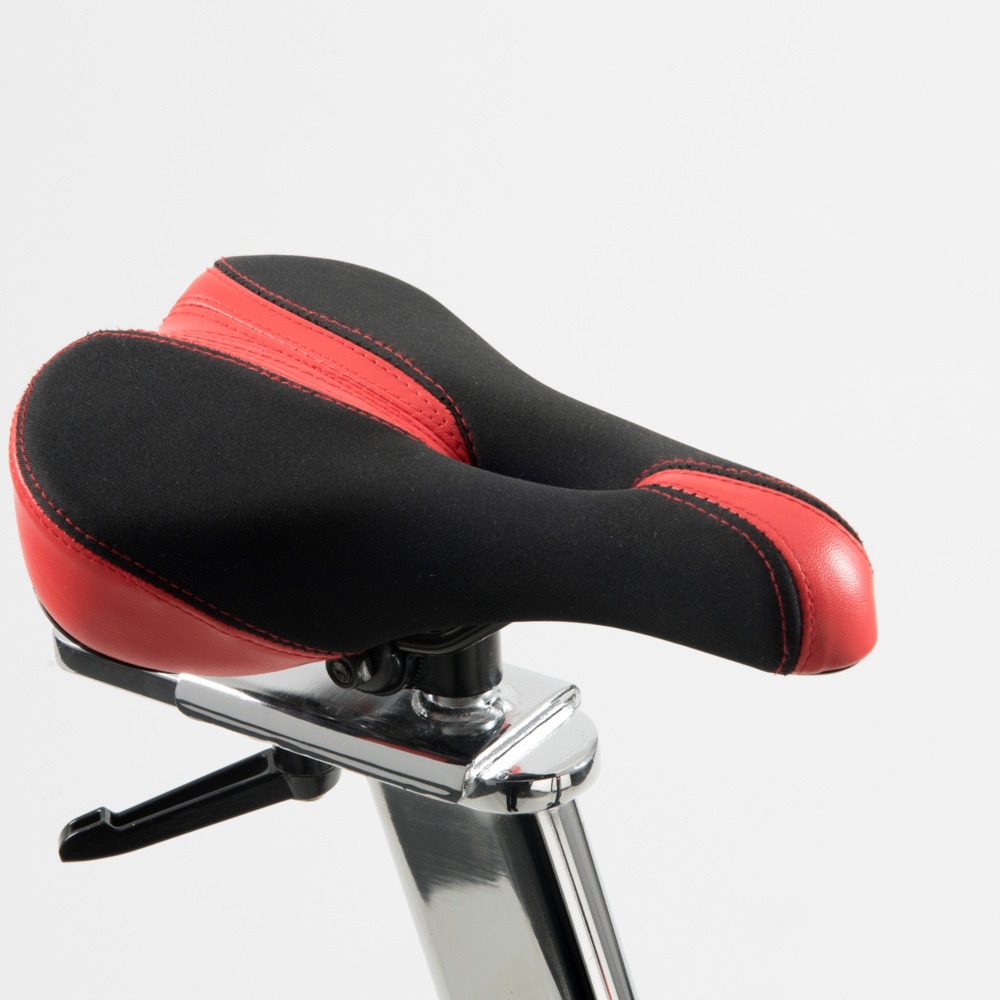

Seat position	bicolour saddle with vertical adjustment and micrometric horizontal adjustment
Handlebar

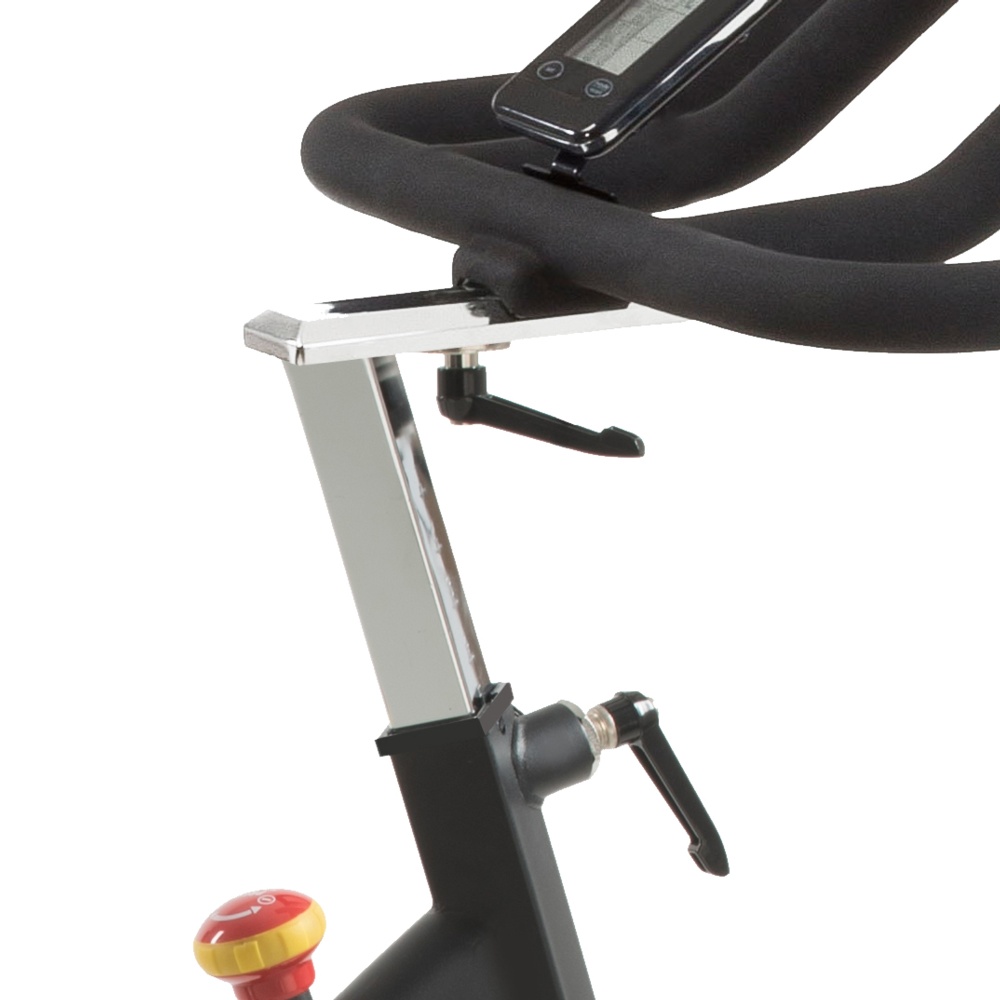

Handlebar	vertical and horizontal adjustment - micrometric
Handlebar height *
Handlebar height *	min 91 cm, max 107 cm
Sddle height *
Sddle height *	min 70.5 cm, max 90 cm
Handlebar position slide *
Handlebar position slide *	+/- 10 cm
Fore & Aft Saddle position *
Fore & Aft Saddle position *	min 67.5 cm, max 74 cm
Q Factor
Q Factor	Total: 19,9 cm. - Left: 9,3 cm \| Right: 10,5 cm
Resistance adjustment
Resistance adjustment	manual - micrometric
Heart rate
Heart rate	Built-in wireless pulse receiver - chest belt included
Moving wheels
Moving wheels	yes
Rubber adjustment feet
Rubber adjustment feet	yes
Pedal crank
Pedal crank	3 pieces
Frame
Frame	high-density steel
Painting
Painting	heavy duty powder coating
Weight
Weight	56 Kg
Set up size
Set up size	1250 x 503 x 1216 mm
Gross weight
Gross weight	60 Kg
Packing size
Packing size	1100 x 250 x 870 mm
Compliances
Compliances	CE-ROHS-EN957

^* Measurements:

Fore & Aft Saddle position > from the seat anchor point to the minimum handlebar position

Handlebar height > from upper edge handlebar to bike support base (upper face)

Saddle height > To make sure you will be able to use this equipment properly you should measure the cm from your heel to your crotch, bearing in mind that your leg must never be fully extended during the training

Handlebar position slide > Δ of the minimum and maximum position of the slide.
